USED 2008 BG EUROPA KS70

500 TPH BG Europa CBM Plant
Make: BG Europa
Model: KS70
Type: Cement Bound Granular Material Plant
Style: High-Capacity, Fully Automated Batching Plant
Year: 2008 (First Use - Manufacture Date to be Confirmed)
Condition: Used Condition - Produced 550 Cubic Meters of Material Over (7) Jobs
Capacity: 500 Tons Per Hour
Portable/Stationary: Portable - Modular in Design, Allowing for Efficient Transport and Rapid Installation

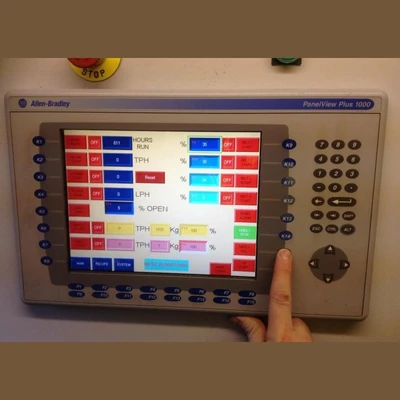

Plant Operation: Plant is Operated Using an Allen Bradley HMI PanelView. All Functions of the Plant are Controlled from this Panel

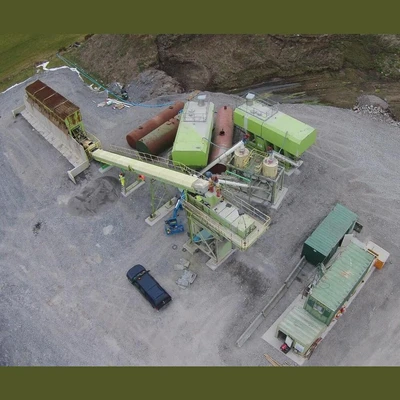

Plant Footprint: 50m x 25m (Approx.)

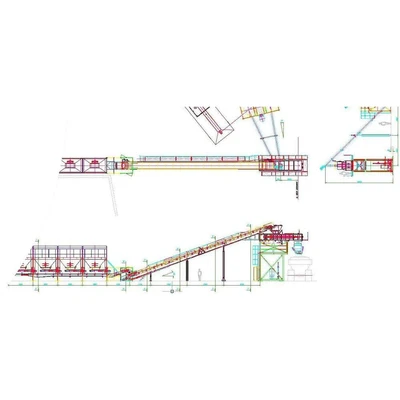

Plant Consists of:
Aggregate Bins:
(4) Cold Feed Bins (Approx. 40-Tonne Capacity Per Bin)
(4) Individual Belt Weighing Systems Under Each Bin for Precise Aggregate Proportioning
Conveying System:
Main Aggregate Feed Drag-Out Belt to Inclined Conveyor
Main Inclined Conveyor For Aggregate Transfer to Mixer
Mixing System:
High-Capacity Twin Shaft Mixer for Homogeneous Blending of Aggregates, Cement, and Water
Cement Storage:
(2) 100 Ton Cement Silos
Cement Weighing:
(2) Cement Weigh Hoppers for Accurate Cement Addition
Water System:
(3) Water Tanks Integrated with Automated Dosing Controls
Compressed Air Supply:
On-Site Compressor Powering Plant Pneumatic Operations and Controls
Plant Control Cabin:
Fully-Enclosed Operator Cabin with Centralized Control System
Automated Weighing, Batching, and Mixing Control for Consistent Output
Power Supply:
Operates via a 500 kVA Generator (Not Included - Hired for Each Project)
Aggregate Bins:
(4) Cold Feed Bins (Approx. 40-Tonne Capacity Per Bin)
(4) Individual Belt Weighing Systems Under Each Bin for Precise Aggregate Proportioning
(4) Cold Feed Bins (Approx. 40-Tonne Capacity Per Bin)
(4) Individual Belt Weighing Systems Under Each Bin for Precise Aggregate Proportioning
Conveying System:
Main Aggregate Feed Drag-Out Belt to Inclined Conveyor
Main Inclined Conveyor For Aggregate Transfer to Mixer
Main Aggregate Feed Drag-Out Belt to Inclined Conveyor
Main Inclined Conveyor For Aggregate Transfer to Mixer
Mixing System:
High-Capacity Twin Shaft Mixer for Homogeneous Blending of Aggregates, Cement, and Water
High-Capacity Twin Shaft Mixer for Homogeneous Blending of Aggregates, Cement, and Water
Cement Storage:
(2) 100 Ton Cement Silos
(2) 100 Ton Cement Silos
Cement Weighing:
(2) Cement Weigh Hoppers for Accurate Cement Addition
(2) Cement Weigh Hoppers for Accurate Cement Addition
Water System:
(3) Water Tanks Integrated with Automated Dosing Controls
(3) Water Tanks Integrated with Automated Dosing Controls
Compressed Air Supply:
On-Site Compressor Powering Plant Pneumatic Operations and Controls
On-Site Compressor Powering Plant Pneumatic Operations and Controls
Plant Control Cabin:
Fully-Enclosed Operator Cabin with Centralized Control System
Automated Weighing, Batching, and Mixing Control for Consistent Output
Fully-Enclosed Operator Cabin with Centralized Control System
Automated Weighing, Batching, and Mixing Control for Consistent Output
Power Supply:
Operates via a 500 kVA Generator (Not Included - Hired for Each Project)
Operates via a 500 kVA Generator (Not Included - Hired for Each Project)
Batching Procedure:
The Various Parts of the Plant Start is a Sequential Order as Follows:
1st : The Mixer
2nd : The Main Inclined Conveyor
3rd : The Drag-Out Conveyor
4th : The Aggregate, Cement and Water Feeds

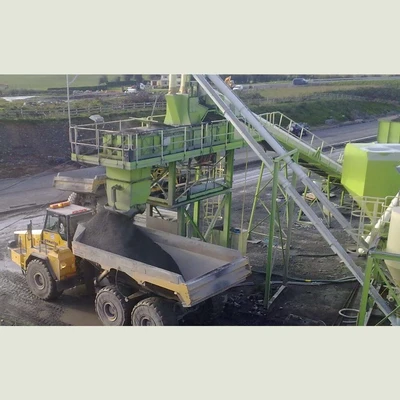

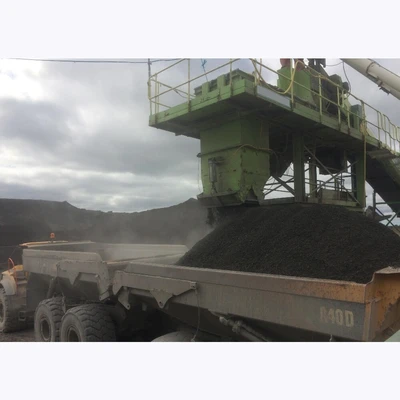

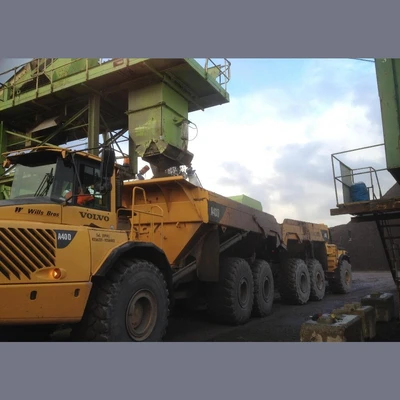

The Aggregate is Loaded into all Four Bins. This process is carried out by a Loading Shovel. These Four Bins will Usually Contribute One Quarter Each of the Aggregate Feed to the Mixer. The Percentage Feed from Each Aggregate Bin can be Adjusted to Suit a Particular Mix Design in the instance where Two or More Different Types of Aggregate are being used. The Cement is Supplied from the Two 100-Tonne Silos by Two Independent Screw Conveyors into Two Independent weigh hoppers. The Weighed Cement is then Screwed up to the Mixer to Blend with the Aggregate before Blending with the Discharging Water into the Mixer. The Fully-Mixed CBGM Material is then Discharged into the Dump Truck beneath the Mixer Doors. The Plant Operator can Adjust the Speed of Batching by Simply Changing the Tonnes/Hr. Figure on the Panelview Unit. All Plant Feeders and Weighers Automatically Adjust to this Change of Batching Speed. The Plant Operator Receives Constant Read-Outs of the Moisture in the Aggregate from a Hydro-Probe Moisture Sensor. This Assists the Plant Operator in Ensuring the Delivery of a Consistent Product to the Paving Operations. The Plant Runs on a Continuous Basis and will Continue to Fill the Dump Trucks for as long as they are available.
The Various Parts of the Plant Start is a Sequential Order as Follows:
1st : The Mixer
2nd : The Main Inclined Conveyor
3rd : The Drag-Out Conveyor
4th : The Aggregate, Cement and Water Feeds
1st : The Mixer
2nd : The Main Inclined Conveyor
3rd : The Drag-Out Conveyor
4th : The Aggregate, Cement and Water Feeds
The Aggregate is Loaded into all Four Bins. This process is carried out by a Loading Shovel. These Four Bins will Usually Contribute One Quarter Each of the Aggregate Feed to the Mixer. The Percentage Feed from Each Aggregate Bin can be Adjusted to Suit a Particular Mix Design in the instance where Two or More Different Types of Aggregate are being used. The Cement is Supplied from the Two 100-Tonne Silos by Two Independent Screw Conveyors into Two Independent weigh hoppers. The Weighed Cement is then Screwed up to the Mixer to Blend with the Aggregate before Blending with the Discharging Water into the Mixer. The Fully-Mixed CBGM Material is then Discharged into the Dump Truck beneath the Mixer Doors. The Plant Operator can Adjust the Speed of Batching by Simply Changing the Tonnes/Hr. Figure on the Panelview Unit. All Plant Feeders and Weighers Automatically Adjust to this Change of Batching Speed. The Plant Operator Receives Constant Read-Outs of the Moisture in the Aggregate from a Hydro-Probe Moisture Sensor. This Assists the Plant Operator in Ensuring the Delivery of a Consistent Product to the Paving Operations. The Plant Runs on a Continuous Basis and will Continue to Fill the Dump Trucks for as long as they are available.
Location: Europe
