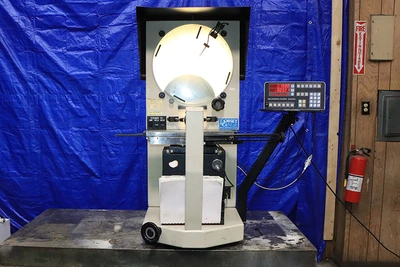

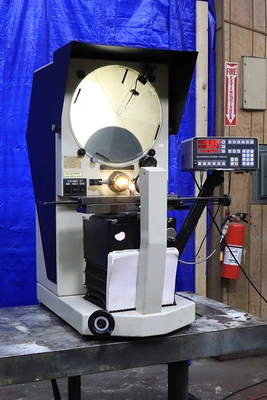

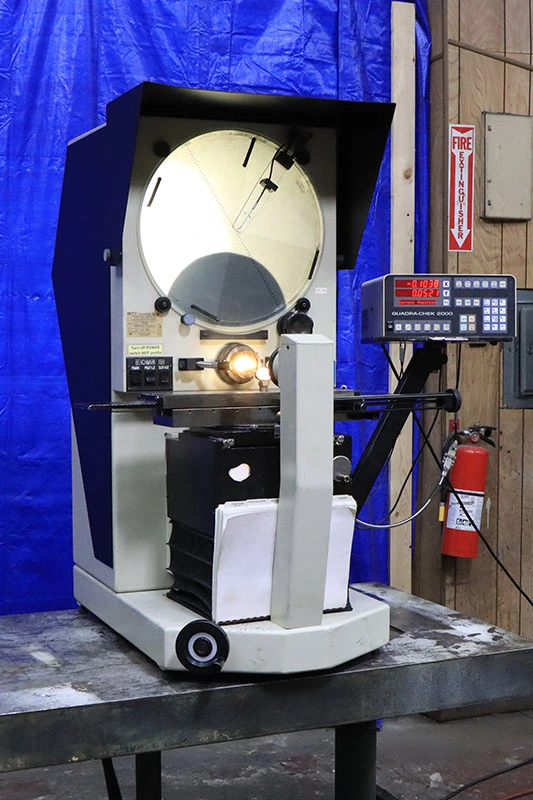

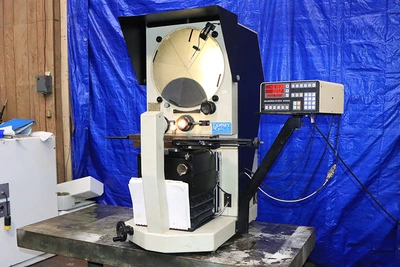

USED 2005 Dorsey Gage Co. BENCHMARK 16H, 2005, QC 2000 DRO w/EDGE DET.

           16" DORSEY "MADE IN USA"

      HORIZONTAL BENCH MODEL OPTICAL COMPARATOR

             QUADRA-CHEK 2000 DRO

      WITH PROGRAMMABLE GEOMETRIC FUNCTIONS

             AND EDGE DETECTION

MODEL: BENCHMARK 16H     S/N: 9705/438      NEW: 2005

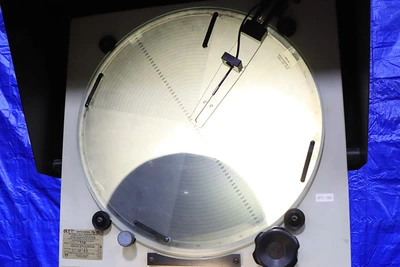

SCREEN DIAMETER .................. 16"

TABLE SIZE ....................... 18" x 6"

WEIGHT CAPACITY ON TABLE ......... 150 LBS.

HORIZONTAL TRAVEL ................ 10"

VERTICAL TRAVEL .................. 6"

FOCUS ............................ 3"

HELIX ANGLE ...................... +/- 15°

APPROX. MACHINE WEIGHT ........... 360 LBS.

MACHINE DIMENSIONS ............... 32"" L-R x 40"

                                     x 44"H

DORSEY MODEL #16H MACHINE FEATURES:

ROBUST CAST GRANITE COMPOSITE BASE

CAST IRON "ULTRA PRECISION" STAGE SYSTEM

STAGE IS NICKEL PLATED FOR LONG LIFE

MEASUREMENT SCALES ARE MOUNTED IN THE CENTER OF TRAVEL,

 WITH ZERO BACKLASH

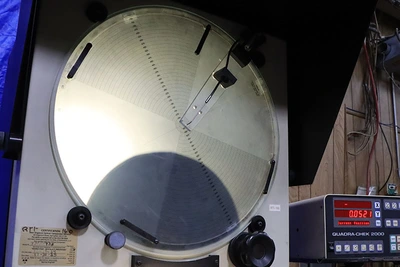

VERTICAL SCREEN, ERECT & REVERSED PROFILE IMAGE

COATED TELECENTRIC PARAFOCAL OPTICS

QUICK CHANGE SINGLE LENS MOUNT

HIGH POWER TUNGSTEN ARC PROFILE ILLUMINATION

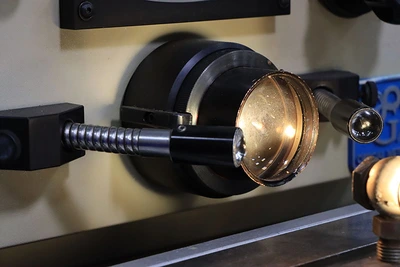

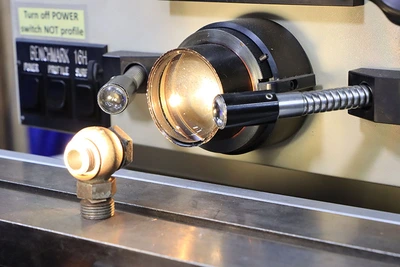

FIBER OPTIC SURFACE ILLUMINATION (FULLY RETRACTABLE)

INTEGRATED HOOD

ROLLER BEARING SLIDES

HELIX ADJUSTMENT, +/- 15°

MACHINED CHART RING, WITH VERNIER PRTRACTOR,

 AND ONE MINUTE GRADUATION

EQUIPPED WITH:

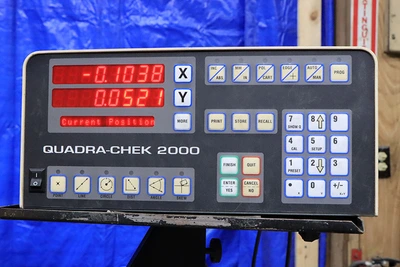

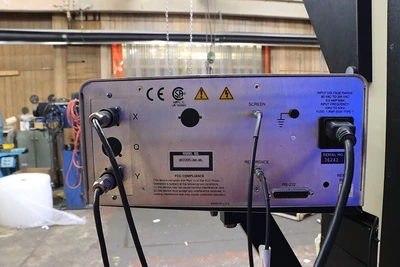

QUADRA-CHEK 2000 2-AXIS DIGITAL READOUT DISPLAY

  WITH PROGRAMMABLE GEOMETRIC FUNCTIONS

  AND EDGE DETECTION

10X LENS

115 VOLT/1 PHASE ELECTRICS

SPECIAL NOTE:

MADE IN U.S.A. BY DORSEY GAGE CO. (845) 454-3111

www.dorseymetrology.com

CALIBRATED LAST BY:

NEW ENGLAND OPTICAL COMPARATOR SERVICE

MR. PETER HAGGINS (SERVICE ENG.)

(413) 736-3945

** INSPECT UNDER POWER IN OUR HARRISON, N.J. WAREHOUSE **

** "AS NEW" CONDITION & APPEARANCE **

FOR MORE INFORMATION: Call Andy at 973-497-7600
