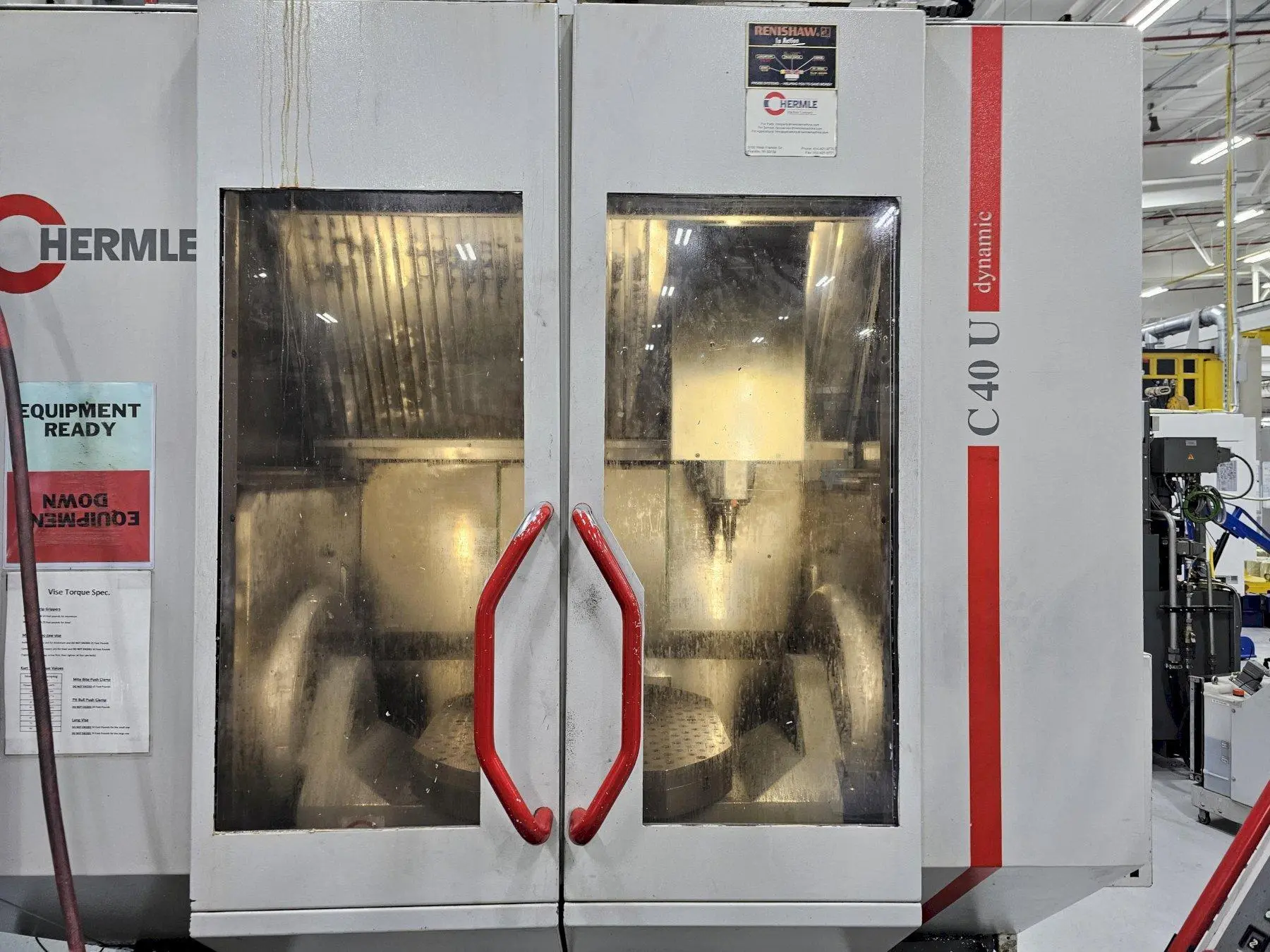

USED 2006 HERMLE C40U
Overview

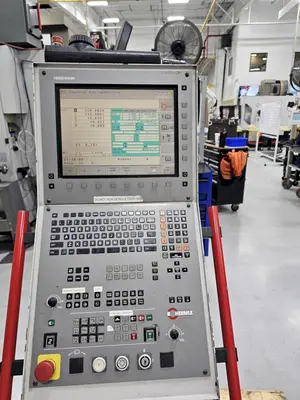

Heidenhain iTNC 530 CNC Control
38 ATC
Manuals
Renishaw OMP40-21s Touch Probe
Tool Measuring- Yes, Laser system in the walls
Coolant Thru Spindle _ Yes, 80bar, variable
Table/Wall/Window wash down system
Includes Grid Table
Specs
Update Note:: New Cartridge Spindle - 2026, New Ballscrew: X & Y this year. They consider to keep the machine, though it had NO automation, thus the repair work was done by Hermle. In the end they have contracted us to sell it.
CNC Control: yes
Type of CNC Control: Heidenhain iTNC 530
# Axis: 5
X: 31.5 inches
Y: 31.5 inches
Z: 19.68 inches
Max Table Load: 3,087 lbs

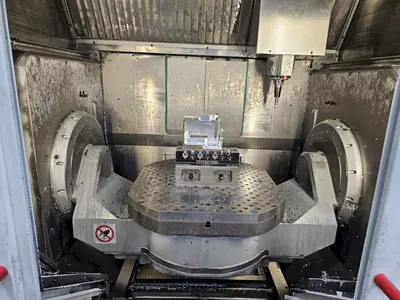

A-Axis Trunnion Tilt Range: +24°/-110° swivel
C-axis: 360° rotation) with table size around 31.5"
Max Spindle RPM: 10000
Taper: HSK A63
# ATC: 38
Power: 42 horsepower
Weight: 23150 pounds
