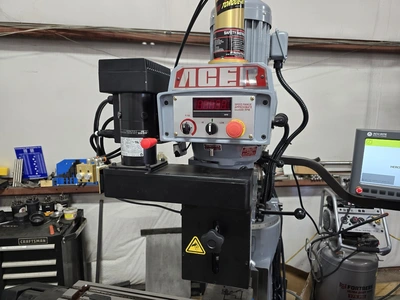

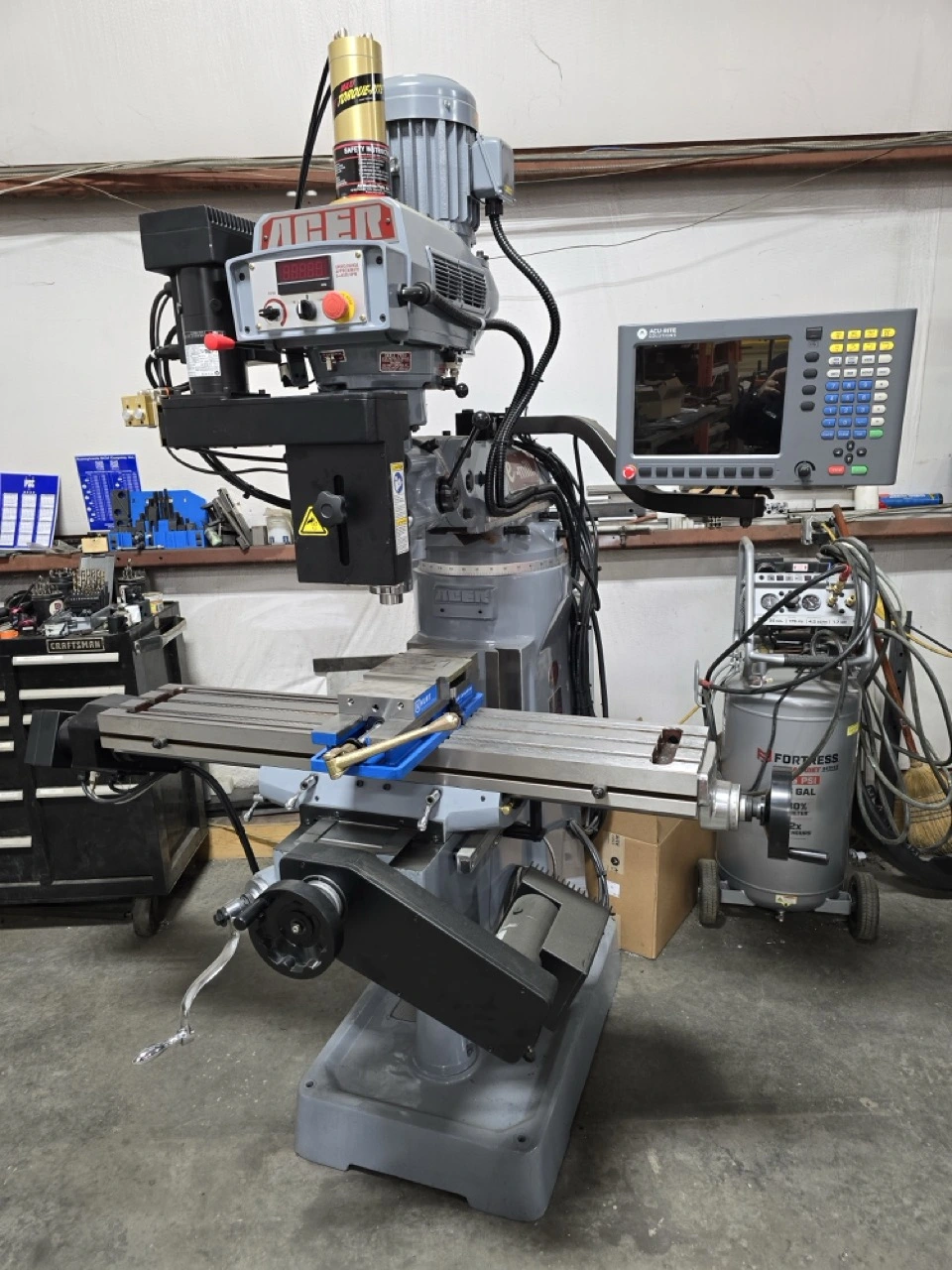

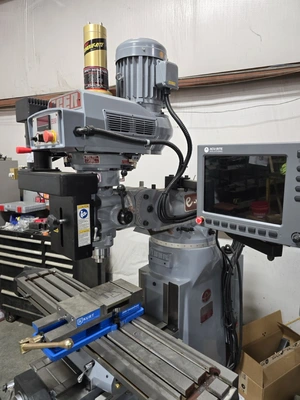

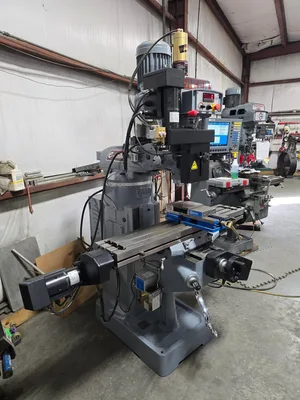

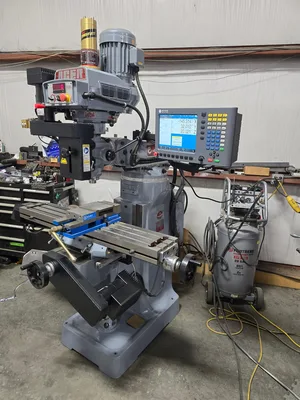

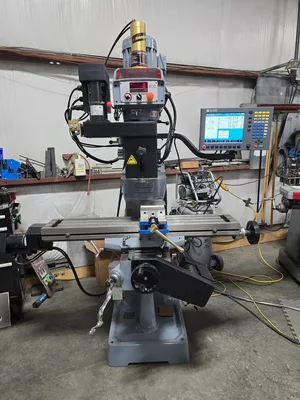

USED 2025 ACER E-MILL 3VSII

Table Size: 9″ x 49″
Longitudinal Travel (X-Axis): 34″
Cross Travel (Y-Axis): 12″
Vertical Knee Travel (Z-Axis): 16″
Ram Travel: 12″
T-Slot Number and Size: 3 slots, 5/8″
Main Motor: 3 HP spindle inverter motor
Spindle Speed Range: 60 to 4,500 RPM (variable speed with frequency inverter drive)
Spindle Taper: R-8
Quill Travel: 5″
Quill Diameter: 3-3/8″
Power Quill Feeds: 0.0015″, 0.003″, 0.006″ per revolution
Head Swivel: Right to left 90°; front to back tilt 45°
Electrical Requirements: 220 V; 3 phase
Approximate Weight: 2,500 lbs
Approximate Dimensions: 75″ x 74″ x 94″
Equipped With:

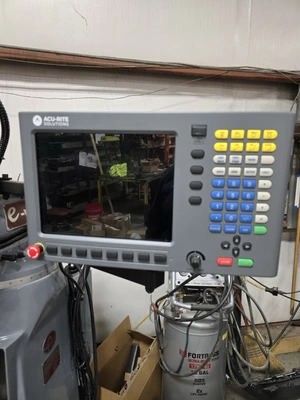

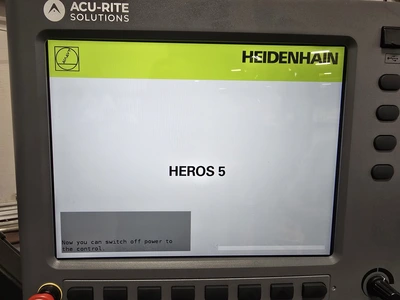

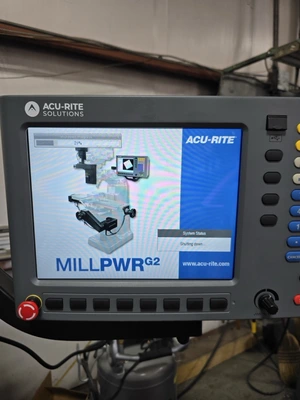

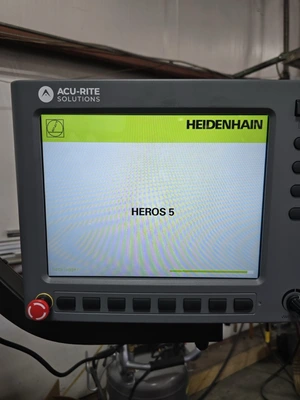

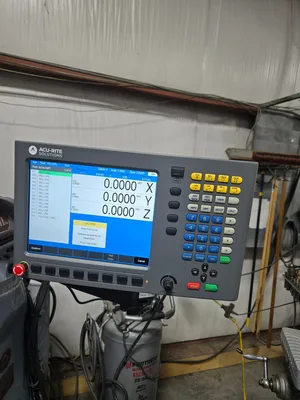

Acu-Rite Heidenhain Heros 5 CNC Control
