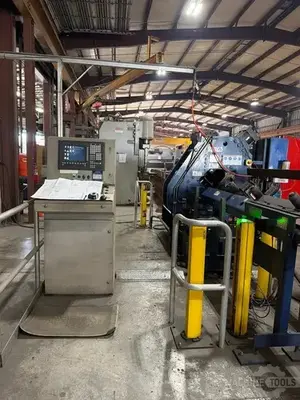

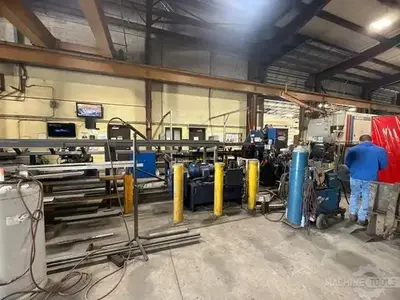

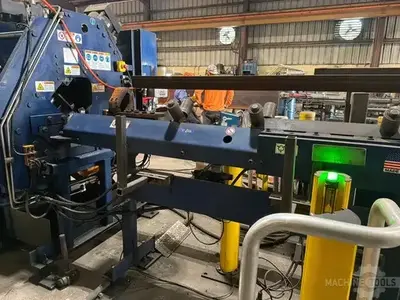

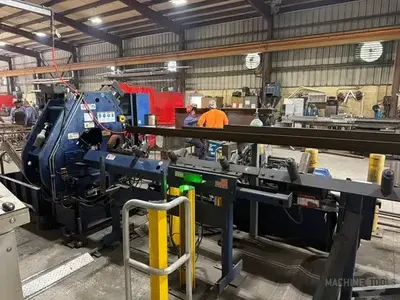

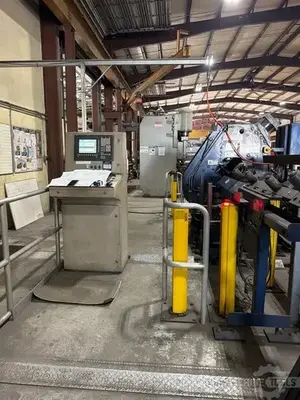

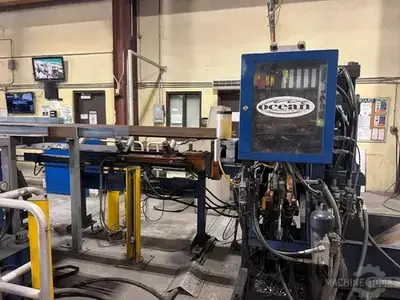

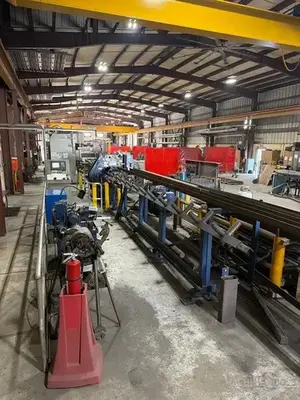

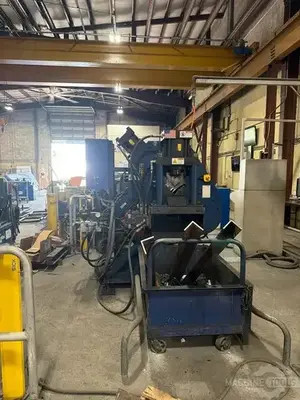

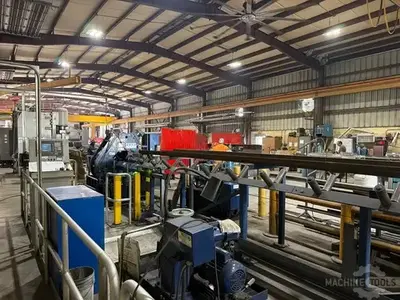

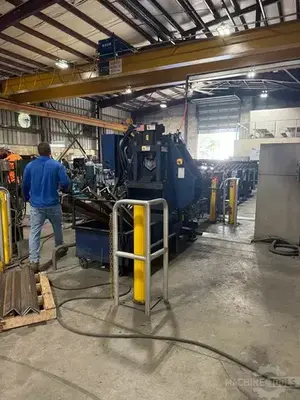

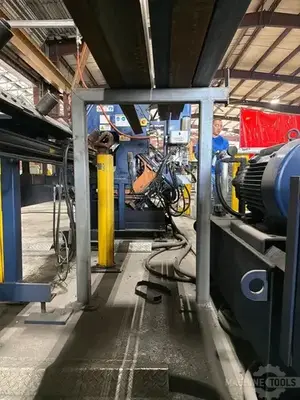

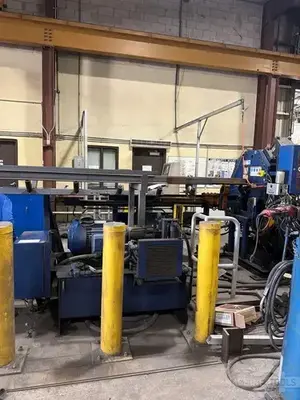

USED 2015 PEDDINGHAUS OCEAN CLIPPER APDS-613/1B

Request a Quote
Add to Cart
Min-Max Angle Size: 1-1/2" × 1-1/2" × 1/8" - 6" × 6" × 5/8"
Drilling Hole Diameter: 5/16"–1-9/16"
Drill Gauge: 0.5"–5.5"
Drilling Feed Rate: 2-10 IPM
Punching Tonnage: 75

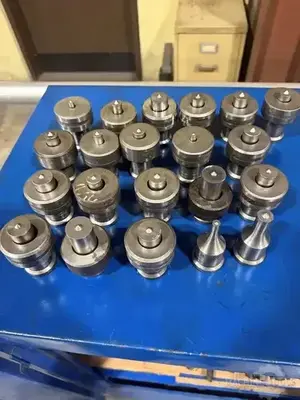

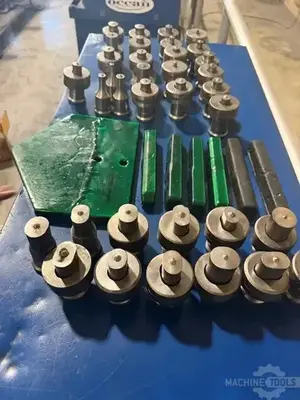

Max Punch Size: 1-1/4" (#272 Standard) - 1-1/16" (#132, Requires PFP Holder)
Punch Cycle Time: 2 seconds
Shear Tonnage: 100
Shear Minimum Drop: 8.125"
Shear Cycle Time: 5 seconds
Shear Slug Size: 1/2"
In-Feed Speed (X-Axis): 61 FPM Max
Max X-Axis Stroke: 50"
Y-Axis Travel: 12" (starting 1/2" past datum)
Z-Axis Travel: 5" (starting 1/2" past datum)
Pass Line Height: 45"

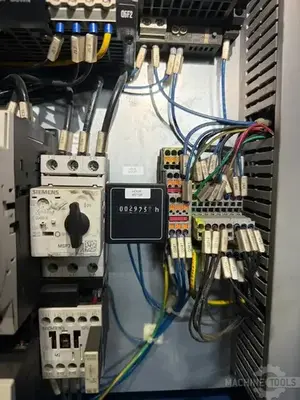

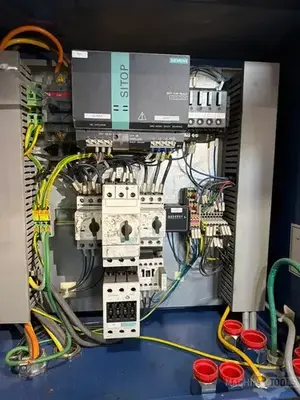

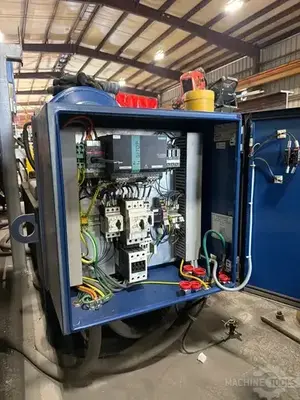

Power: 460V, 40 amp, 33 KVA
Shop Air: 90–100 PSI
Foundation: 6" Concrete
Punch/Shear Frame Weight: 5,000 Lbs
X-Axis Assembly: 900 Lbs

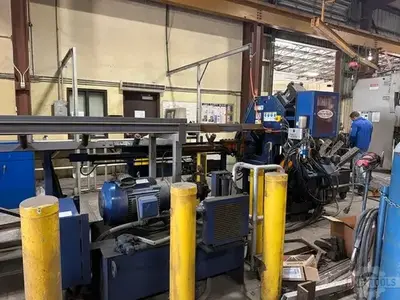

In-Feed Power Unit: 300 lbs
20 Ft In-Feed Roller Support (Extendable): Auto-Zeroing/Backlash Compensation/Axis Calibration
Automatic Angle Sensor Sets Drill Stroke Off the Heel: Fully Automatic Punch/Drill/Shear Cycle

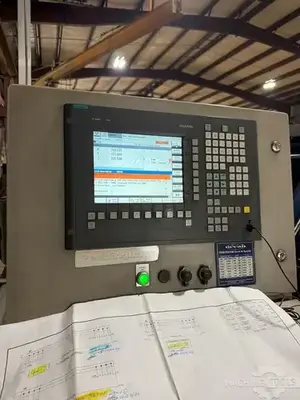

In-Line Hydraulic Punch and Drill - No Repositioning of Material: Siemens 840Di CNC Control with Conversational Programming/Graphic Display/2-Axis Simultaneous Control
