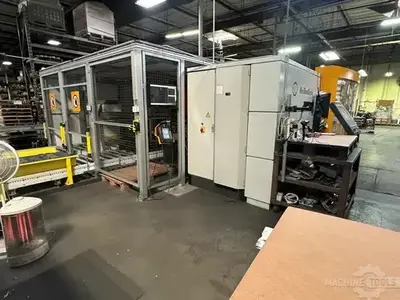

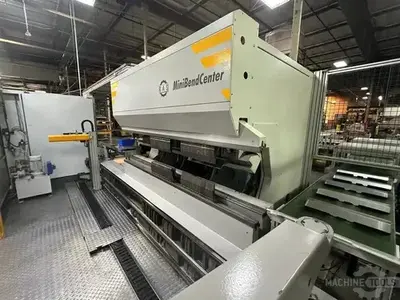

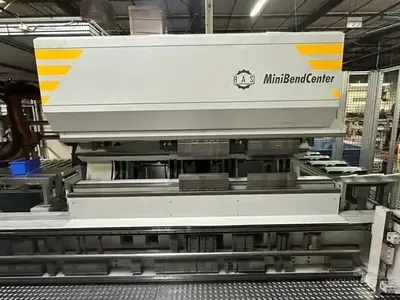

USED 2014 RAS MINIBENDCENTER 79.05

Request a Quote
Add to Cart
Max Thickness Capacity: 16 Ga
Min/Max Blank Length: 1.97"/23.62”
Min/Max Blank Width: 1.57"/23.62”
Max Material Thickness: 11 Ga. (Depending on the Tool)
Pallet Size: 47" x 31.5"

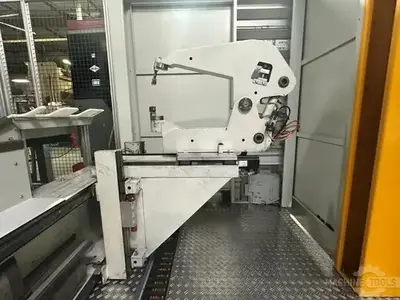

Main Manipulator Positioning Accuracy: X-Axis: (+/-) 0.0008"
Y-Axis: (+/-) 0.0008"
Z-Axis: (+/-) 0.002"
Rotation Axis: (+/-) 0.01 Deg.
Tool Changer Accuracy: 0.0008"

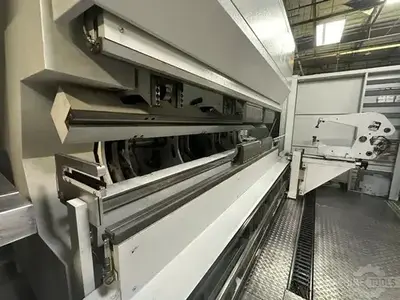

Folding Cell Upper/ Lower Beam Length: 98.4" / 98.4”
Folding Cell Upper/Lower Folding Beam: 90.5" / 98.4"

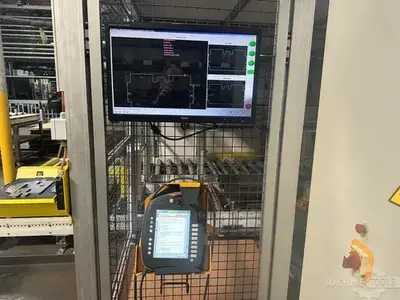

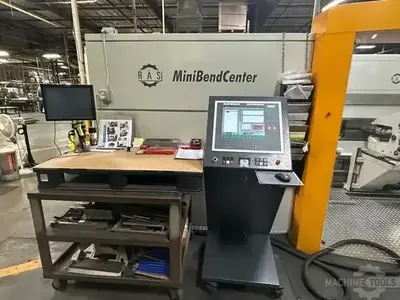

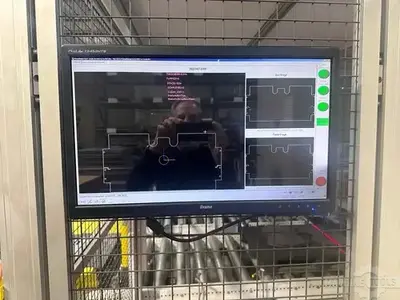

18" Touch Screen Moveable Operating Panel: Camera Scanning System

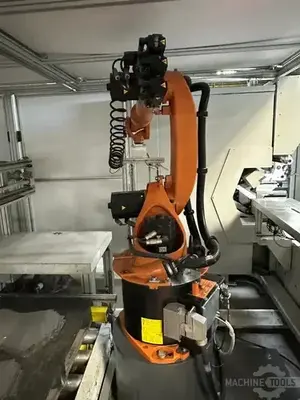

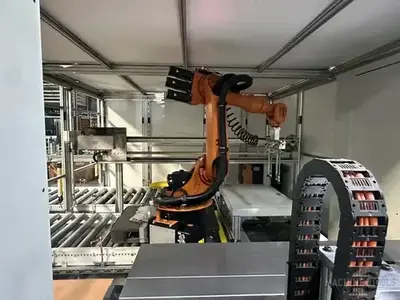

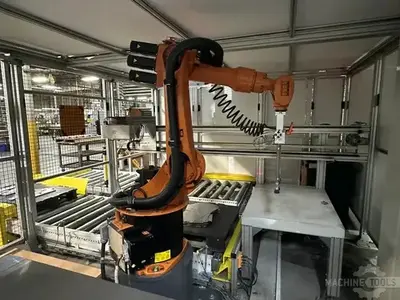

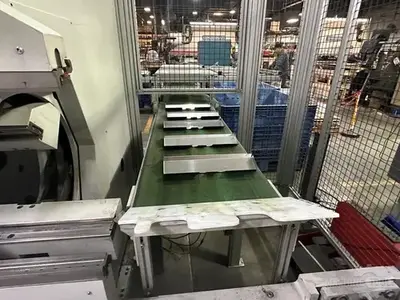

Finished Part Conveyor System: Kuka Kr 16-2 Robot
Leveled Blank Quality: Material Handling System

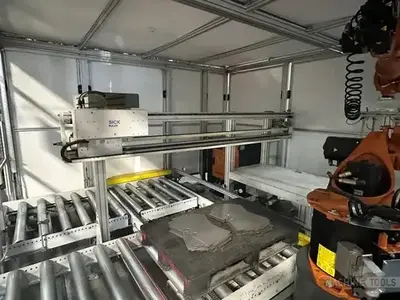

Servo Motor Drive: Transfer Table with Suction Cups

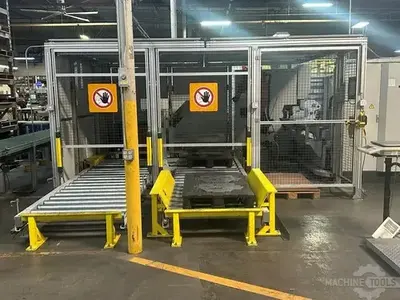

Two Raw Material Carts: Two Skelton Pallets

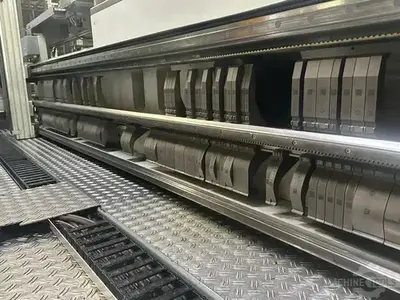

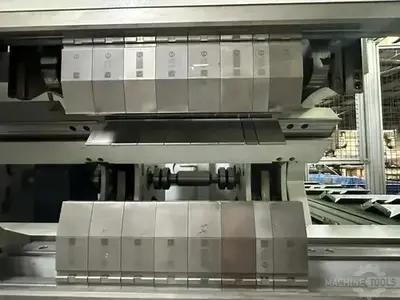

Upper And Lower Tool Magazine: Tooling Included
