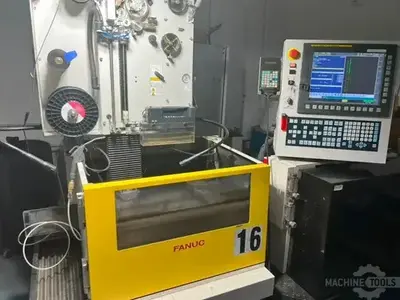

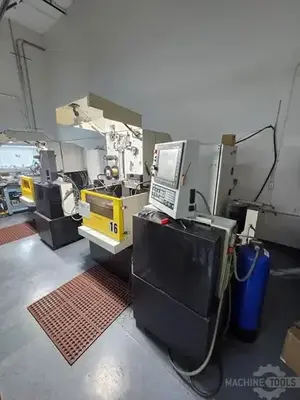

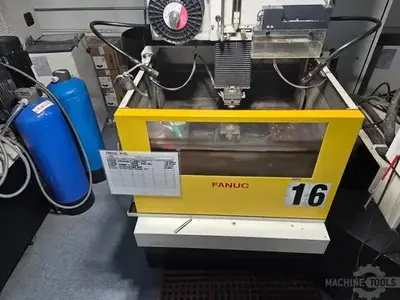

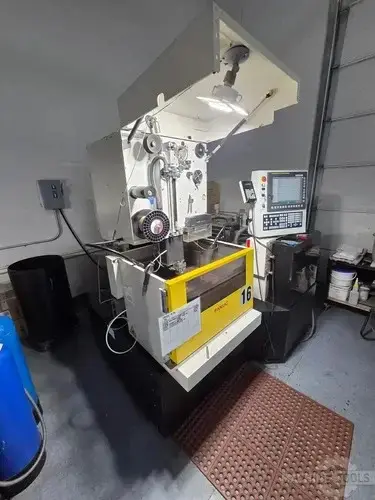

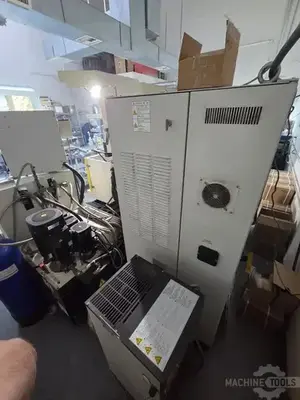

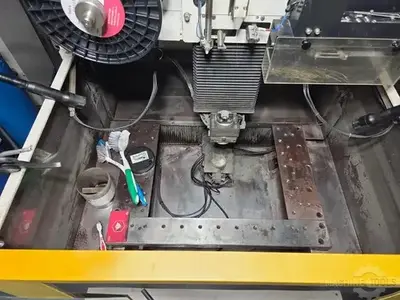

USED 2013 FANUC ROBOCUT A-C400IA

Request a Quote
Add to Cart
X-Axis Travel: 14.6"
Y-Axis Travel: 10.6"
Z-Axis Travel: 10"
Control: Fanuc 31i-WB
U/V Axis Travel: 2.36" x 2.36"
Degree Taper Cutting: 30 Degree at 3.3"
Inside Tank Dimensions: 30.5" x 23.6"
Glass Scale Feedback: .00000004 Rotary
Max Workpiece Size: 30.5" x 23.6" x 10"
Max Submerged Depth: 9.84"
Max Workpiece Weight: 1,100 Lbs
Wire Diameter: .008" - .012"
Max Cutting Speed: .012 Coated Wire, 2.4" Thick, D2 33.5 Sq In/Hr
Positioning Accuracy: +/- .0001
Dielectric Capacity: 145 Gallons
Power Requirement: 200-220/3/60
Machine Footprint: 76" x 87" x 77"H
Machine Weight: 4,000 Lbs
Note: No Wire Alignment Gauge, Transformers Not Included
AC &: DC Generator Switchable
4MB Part Storage: AC Servo Drive Motors
Auto Wire Threading: Electric Chiller
Electronic Manuals: 10-Second Automatic Threading
13KVA Total Power: 15" Color LCD Touch Screen
Rotary Glass Scale Feedback: RS232 Ethernet Interface
Submerged Cutting: AIP2 Discharge Control
Built-in Conversational Programming: Ethernet Connectivity
Fanuc Auto Wire Feed: Keyboard / USB / CF Card and Ethernet
X / Y / U / V / Z Servo Closed Loop System
