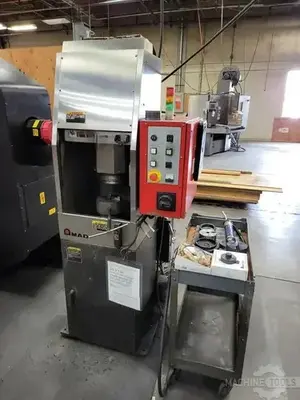

USED 2007 AMADA TOGU III

Request a Quote
Add to Cart
Grinding Wheel: CBN 5.31
Diameter Tool Size (Max): 6.30
Grinding (Max): 0.039
Main Axis Motor: 2 HP 2 P
Main Axis Rotation Speed: 3000 RPM (60Hz)
Main Axis Travel: 9.45"
Main Axis Feed Motor: DC Servo 0.05 HP
Main Axis Feed Speed-High: 23.6 IPM
Main Axis Feed Speed-Middle: 2.36 IPM
Main Axis Feed Speed-Low: 0.002 IPM
Table Motor: 0.134 HP 4P
Table Rotation Speed: 72 RPM (60Hz)
Cooling Water Pump Motor: 0.08 HP 2P
Cooling Water Pump Motor Flow: 0.9 CFM (60HZ)
Power Supply: AC 220 V 3Phase 2.5kVA
Air Supply: 60 CFM
Approx Dimensions (L x W x H): 32.7″ x 25.6″ x 73.3″
Machine Weight: 1058 Lbs
