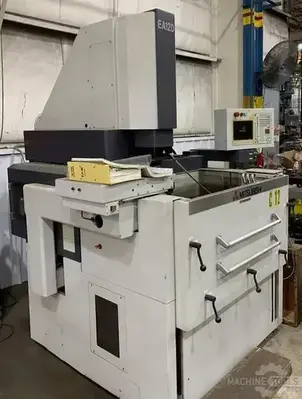

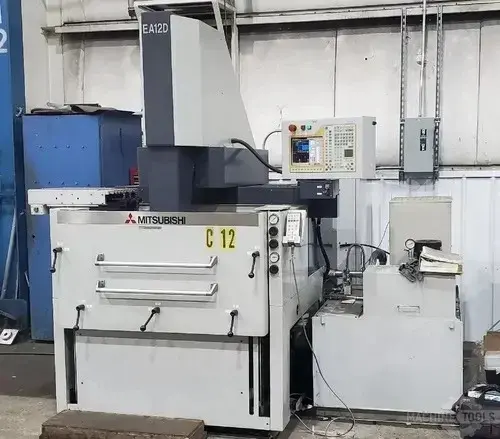

USED 2012 MITSUBISHI EDM EA12D

Request a Quote
Add to Cart
X-Axis Travel: 15.7"
Y-Axis Travel: 11.8"
Z-Axis Travel: 11.8"

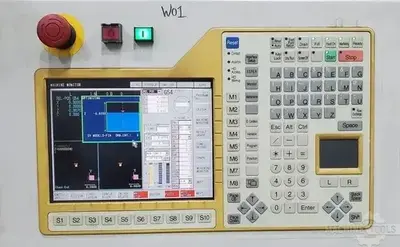

Control: Mitsubishi M700 64 Bit Fuzzy Logic CNC Control W/14" LCD
Power Source: 80 AMP FP60EA Power Supply
Dielectric Fluid Level (Max / Min): 15.7"/ 7.0"
Table to Platen Distance: 11.8" x 23.6"
Machining Movement (C): 360 Degrees / .001 Degree Increment
Min. Command Input: .00001"
Resolution: .000002"
Shuttle Type: 20 AEC
Rapid Traverse: 78.74 IPM
Dielectric Capacity: 132 Gal
Worktank Internal Dimensions: 41.3" x 27.5" x 17.7"
Maximum Workpiece Dimensions: 39.3"x 25.5" x 13.7"
Maximum Workpiece Weight: 2,200 lbs

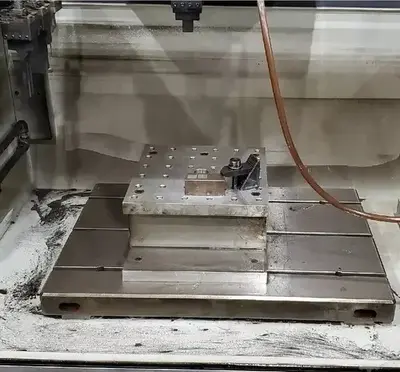

Table Dimensions: 27.5" x 19.6"
Maximum Electrode Weight: 110 lbs / 11 lbs with C-Axis
Power Requirement: 200-220/3/60
Total Shipping Weight: 6,889 Lbs
Installation Dimensions: (W x D ) 91.5" x 87.2"
Fixed Tank Type: Worktank Access Front Drop Door
3R Chuck: C-Axis
Chiller: Graphic Display 10.4" TFT Color LCD
