USED ANDRITZ T15/40KD

Manufacturer
Andritz Gouda
Andritz Gouda is a global leader in industrial drying technology, specializing in drum dryers, paddle dryers, evaporators, and thermal processing systems for the food, dairy, chemical, pharmaceutical, starch, and environmental industries. Their double drum dryers are recognized for high thermal efficiency, continuous operation, and reliable drying of viscous, paste-like, and slurry products.

Description

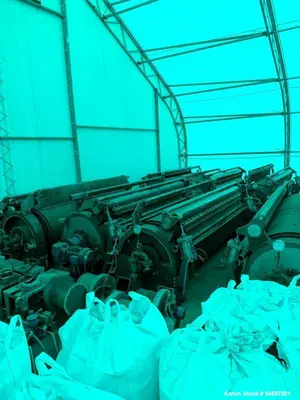

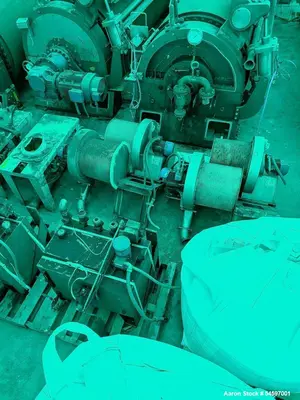

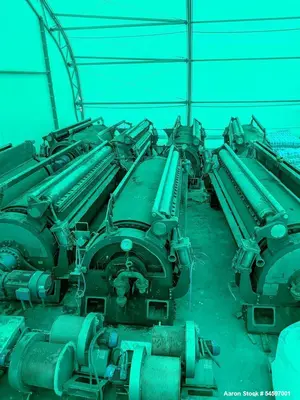

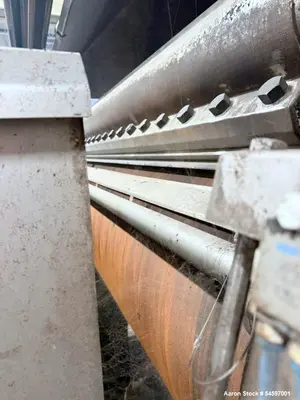

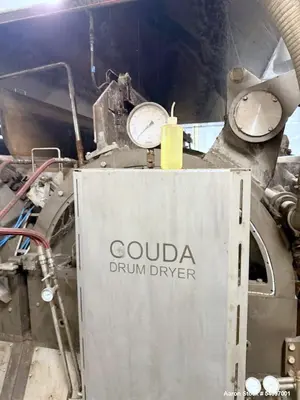

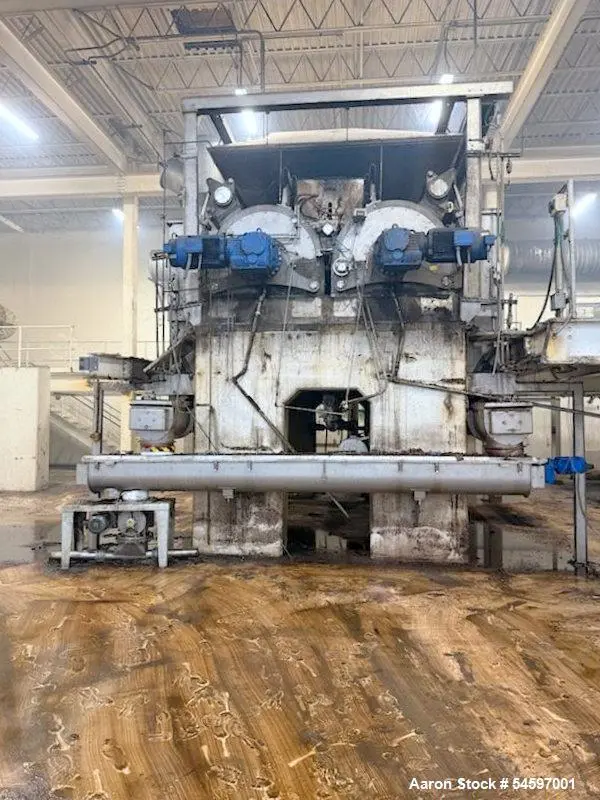

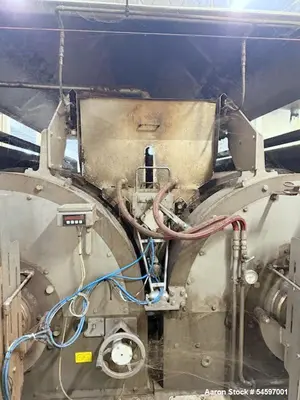

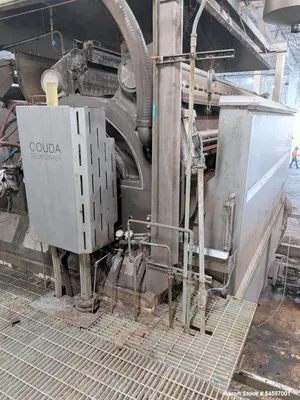

Available for sale is a lot of two (2) used Andritz Gouda Model T15/40KD Double Drum Dryers, manufactured in 2021 and designed for continuous drying of liquid, slurry, and paste products. Each dryer features two steam-heated cast iron drums measuring approximately 59.37 inches (1,508 mm) in diameter by 157.48 inches (4,000 mm) face width, providing approximately 204 square feet of drying surface per drum and 408 square feet total drying area per dryer.

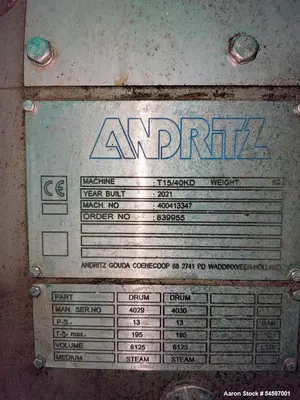

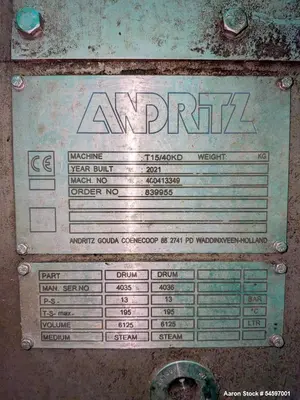

The drums are designed for 13 bar (188.5 PSI) maximum design pressure at 195°C (383°F) and each has an internal volume of approximately 6,125 liters. Drum speed is adjustable from 1.5 to 15 RPM, allowing operators to optimize drying performance for a wide range of products. Each dryer is powered by an 18.5 kW drive motor.

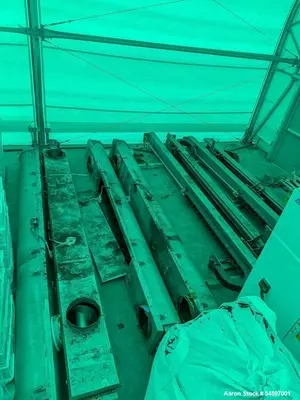

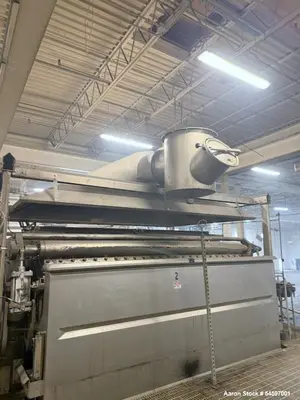

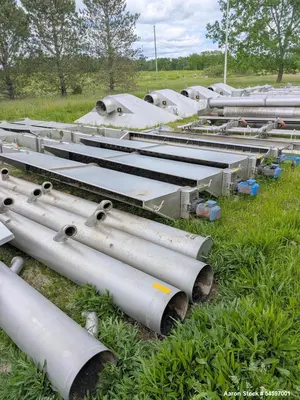

The package also includes two discharge augers per dryer, each measuring 560 mm in diameter by 5,995 mm long, driven by 1.5 kW motors operating at 80 RPM. Additional features include a stainless steel enclosure hood, hydraulic bearing lubrication system, and CE certification, making these units suitable for demanding industrial production environments.

Specifications

Specification
Details

Manufacturer
Andritz Gouda

Model
T15/40KD

Quantity
Lot of (2) Double Drum Dryers

Dryer Type
Steam Heated Double Drum Dryer

Drum Material
Cast Iron (Not Chrome Plated)

Drum Diameter
1,508 mm (59.37 in.)

Drum Face Width
4,000 mm (157.48 in.)

Drying Area
204 Sq. Ft. per Drum / 408 Sq. Ft. per Dryer

Drum Internal Volume
Approximately 6,125 Liters per Drum

Drum Design Pressure
13 Bar (188.5 PSI)

Maximum Temperature
195°C (383°F)

Drum Speed
1.5–15 RPM

Main Drive
18.5 kW

Discharge Augers
(2) per Dryer

Auger Size
560 mm Diameter × 5,995 mm Length

Auger Drives
1.5 kW Each

Auger Speed
80 RPM

Hood
Stainless Steel

Lubrication
Hydraulic Bearing Lube System

Certification
CE Marked

Year Built
2021

Condition
Used

Typical Applications

Dairy powder production
Potato flake processing
Starch drying
Baby food manufacturing
Fruit puree drying
Vegetable puree drying
Protein concentrate processing
Yeast drying
Chemical slurry drying
Pharmaceutical ingredient drying
Food ingredient manufacturing
Continuous thermal processing

Common Products Processed

Potato flakes
Mashed potato products
Starches
Cereal products
Fruit purees
Vegetable purees
Whey products
Milk concentrates
Protein slurries
Yeast
Gelatin
Specialty chemical slurries

Frequently Asked Questions
What is the drying capacity of each dryer?
Each dryer provides approximately 408 square feet of total drying surface, with 204 square feet per drum.
What type of heating is used?
The drums are steam heated and designed for a maximum design pressure of 13 bar at 195°C (383°F).
Are the drums chrome plated?
No. These units are equipped with cast iron drums that are not chrome plated.
Are discharge augers included?
Yes. Each dryer includes two discharge augers, each measuring 560 mm × 5,995 mm, driven by 1.5 kW motors operating at 80 RPM.
What additional features are included?
Each dryer includes a stainless steel hood, hydraulic bearing lubrication system, adjustable drum speed from 1.5–15 RPM, and is CE marked.
