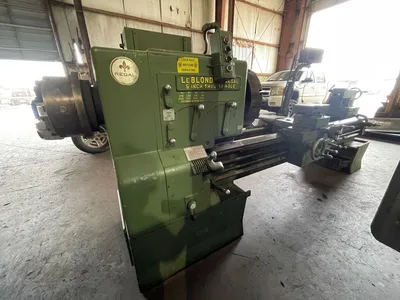

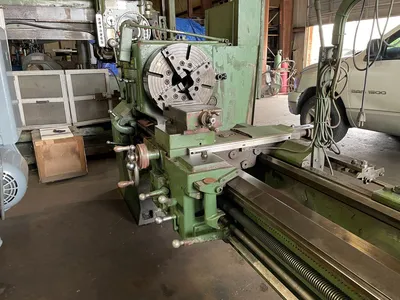

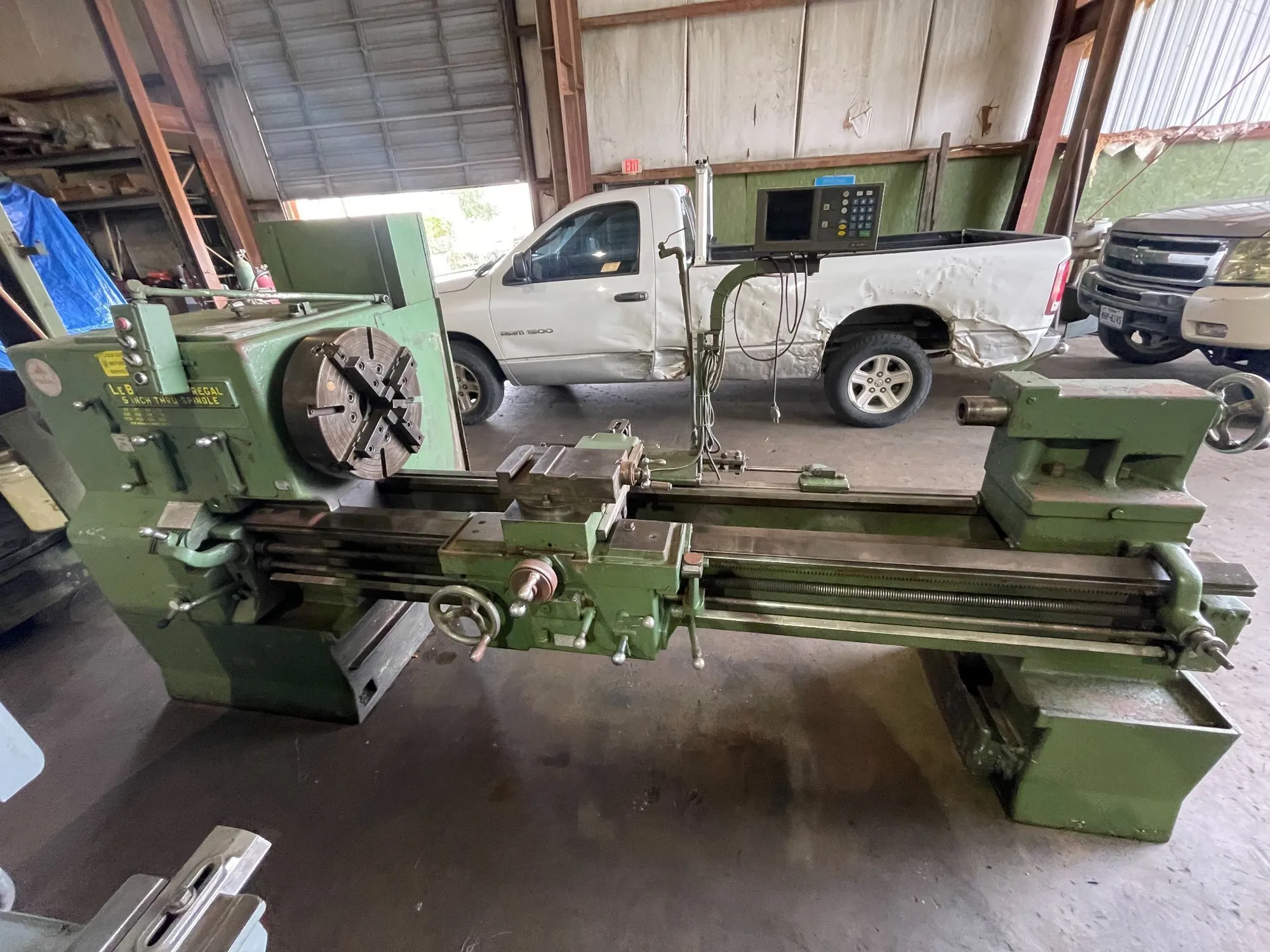

USED LEBLOND REGAL 24 x 72

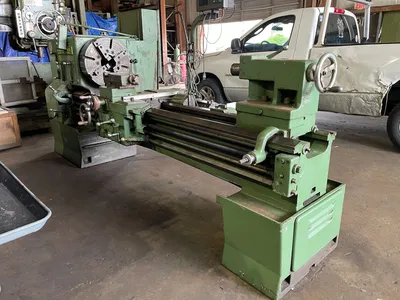

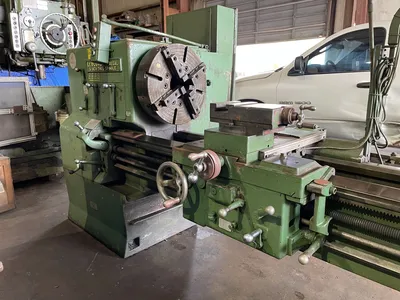

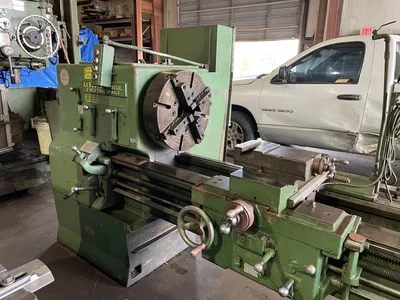

LeBlond Regal 24" × 72" Hollow Spindle Engine Lathe featuring a 5" spindle bore, 20 HP main motor, 12 spindle speeds from 16 to 1200 RPM, 72" between centers, and threading capability from 2 to 112 TPI. Ideal for oilfield, pipe, shaft, and heavy repair machining applications.

Swing Over Bed: 24"
Swing Over Cross Slide: 18.25"
Distance Between Centers: 72"
Spindle Bore: 5"
Spindle Speeds: 12
Speed Range: 16 - 1,200 RPM
Feed Range: 0.0036" - 0.205" IPR
Threading Range: 2 - 112 TPI

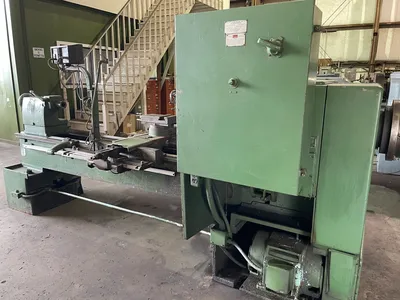

Main Motor: 20 HP

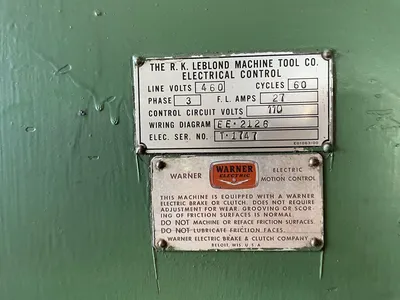

Electrical: Dual Voltage Option - 460V / 3 Phase or 220V / 3 Phase
Approximate Weight: 6,500 lbs.

Features

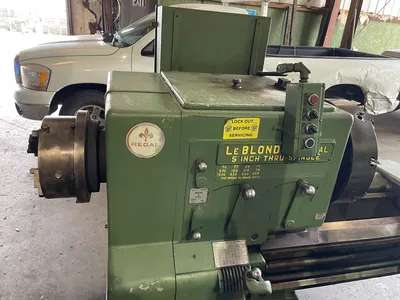

Heavy-duty LeBlond Regal construction
Large 5" through-spindle capacity
Quick-change threading and feed gearbox
Power longitudinal and cross feeds

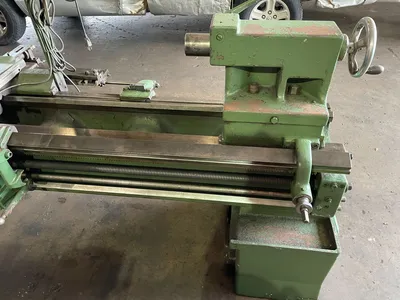

Tailstock
Thread dial indicator
Coolant system
Ideal for pipe, tubing, shafts, and oilfield components
