USED WEBB 9L

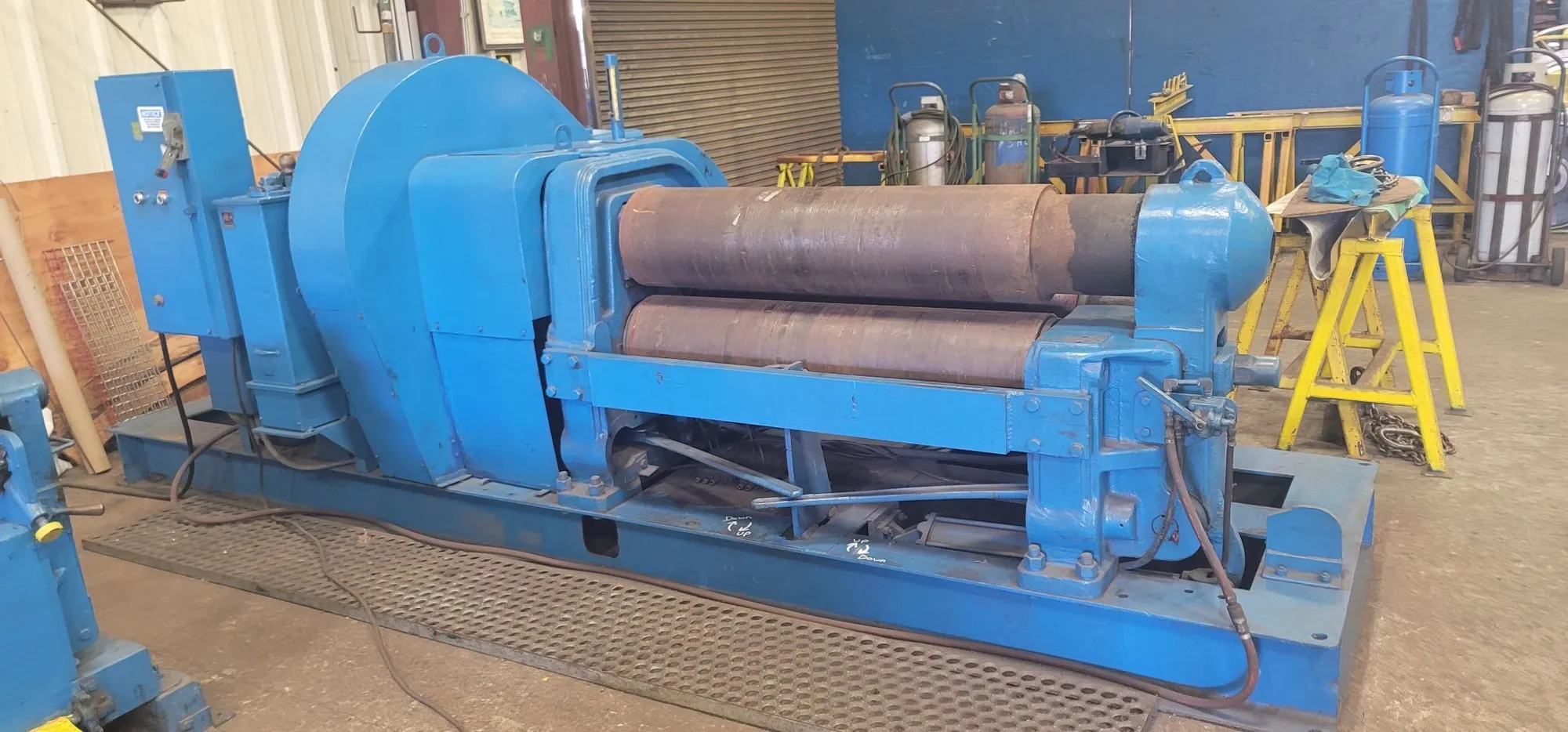

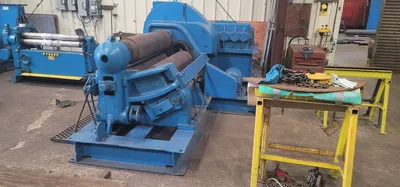

Webb 9L-2A 4' × 7/8" Initial-Pinch Plate Bending Roll

Heavy-duty three-roll initial-pinch plate bending roll designed for forming heavy plate into cylinders, arcs and curved sections. Features 12" diameter rolls, approximately 50" working capacity, variable rolling speed and powered roll adjustments.
______________
Specifications

Manufacturer: The Webb Corporation
Model: 9L-2A
Catalog Number: 1204
Year: 1983
Serial Number: 8320205001
Machine Type: Three-Roll Initial-Pinch Plate Bending Roll
Maximum Rolling Capacity: 4'2" × 7/8"
Nominal Working Capacity: 4' × 7/8"
Roll Diameter: 12" nominal
Number of Rolls: Three
Rolling Speed: Variable
Roll Configuration: Initial pinch
Electrical: To be confirmed
______________
Equipped With

* Three-roll initial-pinch configuration
* Variable-speed roll drive
* Powered rear-roll adjustment
* Powered bottom-roll adjustment
* Drop-end arrangement for removal of completed cylinders

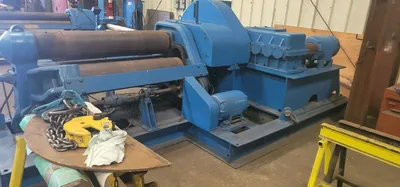

* Heavy-duty mechanical drive

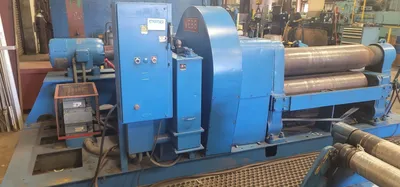

* Main electrical control enclosure
* Forward and reverse controls
* Original operating and installation manual
* Original parts manual
______________
Machine Description

The Webb 9L-2A is a heavy-duty initial-pinch plate bending roll designed for forming thick plate over a relatively short working length. Its 12" diameter rolls provide a rated capacity of approximately 4'2" × 7/8" when working with material rated at 40,000-PSI yield strength and 60,000-PSI tensile strength in a small diameter.

The three-roll initial-pinch design allows the plate to be gripped between the upper and lower rolls before being formed against the adjustable rear roll. The drop-end arrangement allows completed cylindrical workpieces to be removed from the machine.

The machine includes its original Webb operating, installation and parts manuals.
