USED 1999 HANKOOK PROTURN 60B × 4000

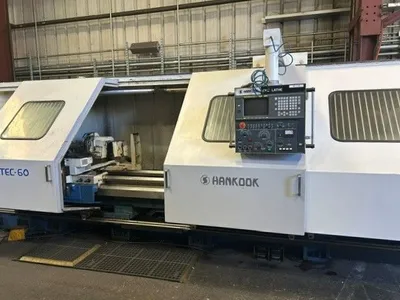

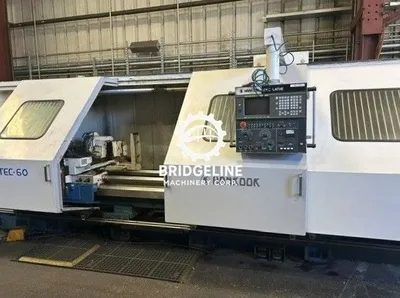

Hankook PROTURN 60B × 4000 CNC Flat-Bed Lathe

___________________________________________________
Specifications

Manufacturer: Hankook Machine Tools Co., Ltd.
Model: PROTURN 60B × 4000 mm
Machine Type: CNC Turning Center
CNC Control: FANUC 18TC, 32-bit
Swing Over Bed: 27.9"
Swing Over Carriage: 18.9"
Distance Between Centers: 157.4" / 4,000 mm
Spindle Bore: 6.9"
Chuck: 24" diameter, three-jaw hydraulic chuck
Tailstock: Hydraulic
Turrets: H4 and V8
Steady Rest Capacity: 50–250 mm / 2"–10"
Second Steady Rest Capacity: 250–450 mm / 10"–17.7"
___________________________________________________
Included Options

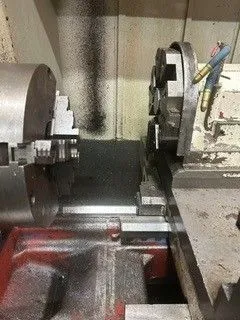

24" diameter, three-jaw hydraulic chuck for 6.9" spindle bore

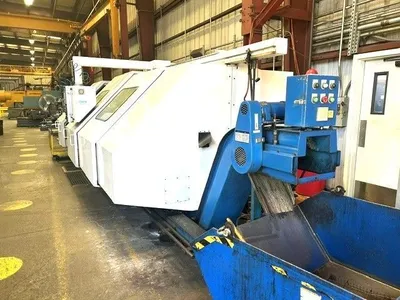

Chip conveyor for 4,000 mm machine
H4 and V8 turrets

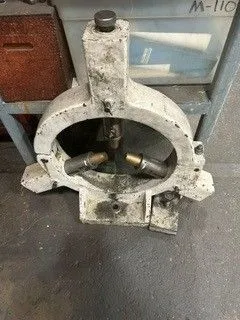

50–250 mm / 2"–10" roller-jaw steady rest
250–450 mm / 10"–17.7" roller-jaw steady rest
Program restart
Programmable data input
Continuous thread cutting
32 pairs of tool offsets
Variable-lead threading
640M part-program storage
___________________________________________________
Standard Accessories

FANUC 18TC 32-bit CNC control
FANUC digital AC spindle and servo drives and motors
Hydraulic tailstock
Hydraulic power unit
Automatic H4 and V8 bi-directional turrets
Flood coolant system
Full-length chip guard
Work light
Automatic way lubrication system
Live center
Tool box with necessary operating tools
Anchor bolts and leveling pads
Factory test report
Operation and maintenance manuals
Parts list and electrical drawing
