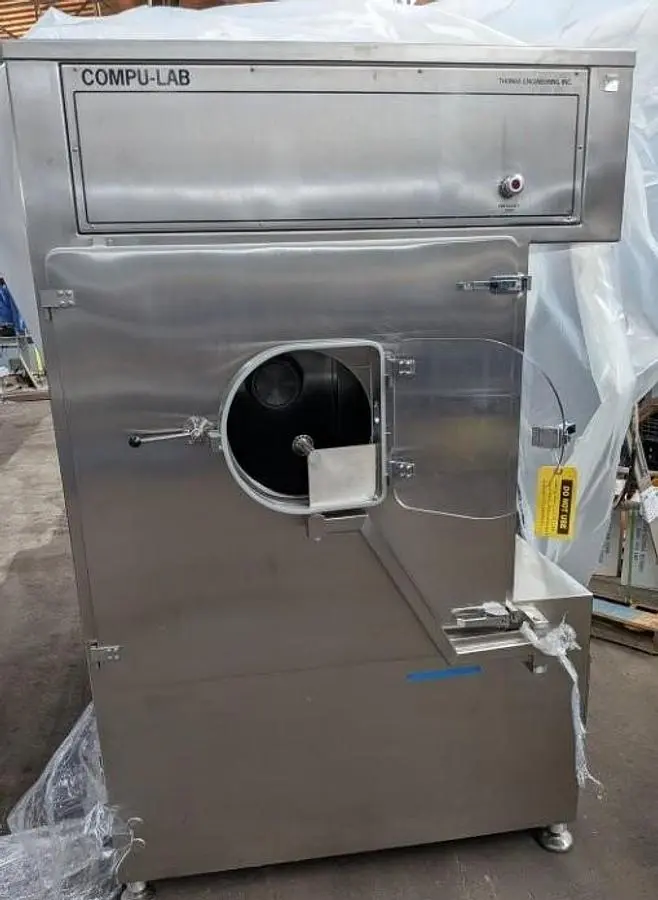

USED THOMAS ENGINEERING CL36-NXR

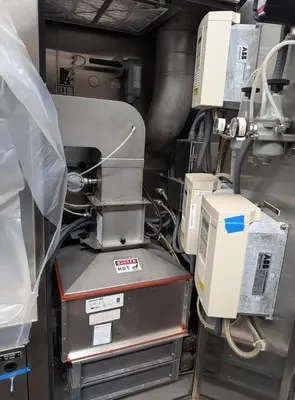

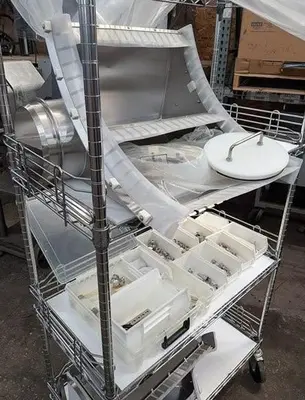

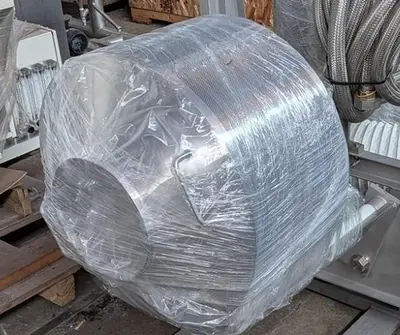

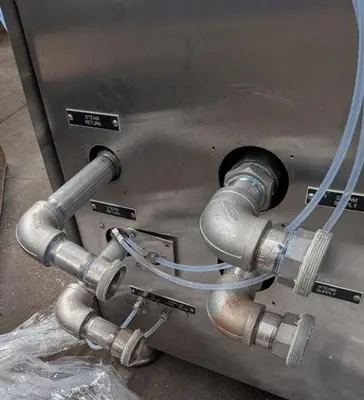

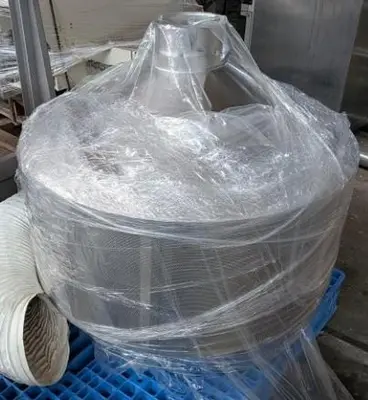

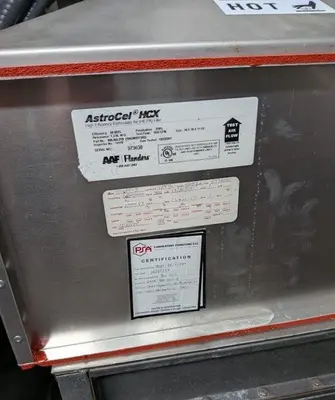

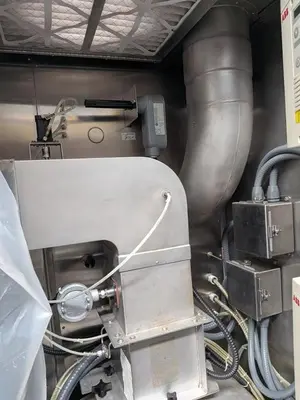

1 Used Thomas 36” & 24” Compu-Lab Tablet Coating Pan, Model CL36-NXR. This is a self-contained tablet coating system with the pan, spray system, inlet & exhaust air handlers and controls mounted inside the enclosure. Includes HEPA filtration. Comes with gear pump and flow meter.  Also includes a 24” interchangeable pan. Rated for aqueous coating and is set up for steam heating.

Specifications for 36” pan (as per OEM).
·         Pan capacity – 30-110 litres
·         Pan weight – 98 pounds
·         Pan rpm – 3 to 30
·         Spray rate – 25 to 250 grams per minute
·         Temperature control - ±1°C
·         CFM – 250 to 1,000
·         Spray guns – 3

Specifications for 24” pan (as per OEM).
•            Pan capacity – 8 -30 litres
•            Pan weight – 48 pounds
•            Pan rpm – 3 to 30
•            Spray rate – 25 to 250 grams per minute
•            Temperature control - ±1°C
•            CFM – 400
•            Spray guns – 2
