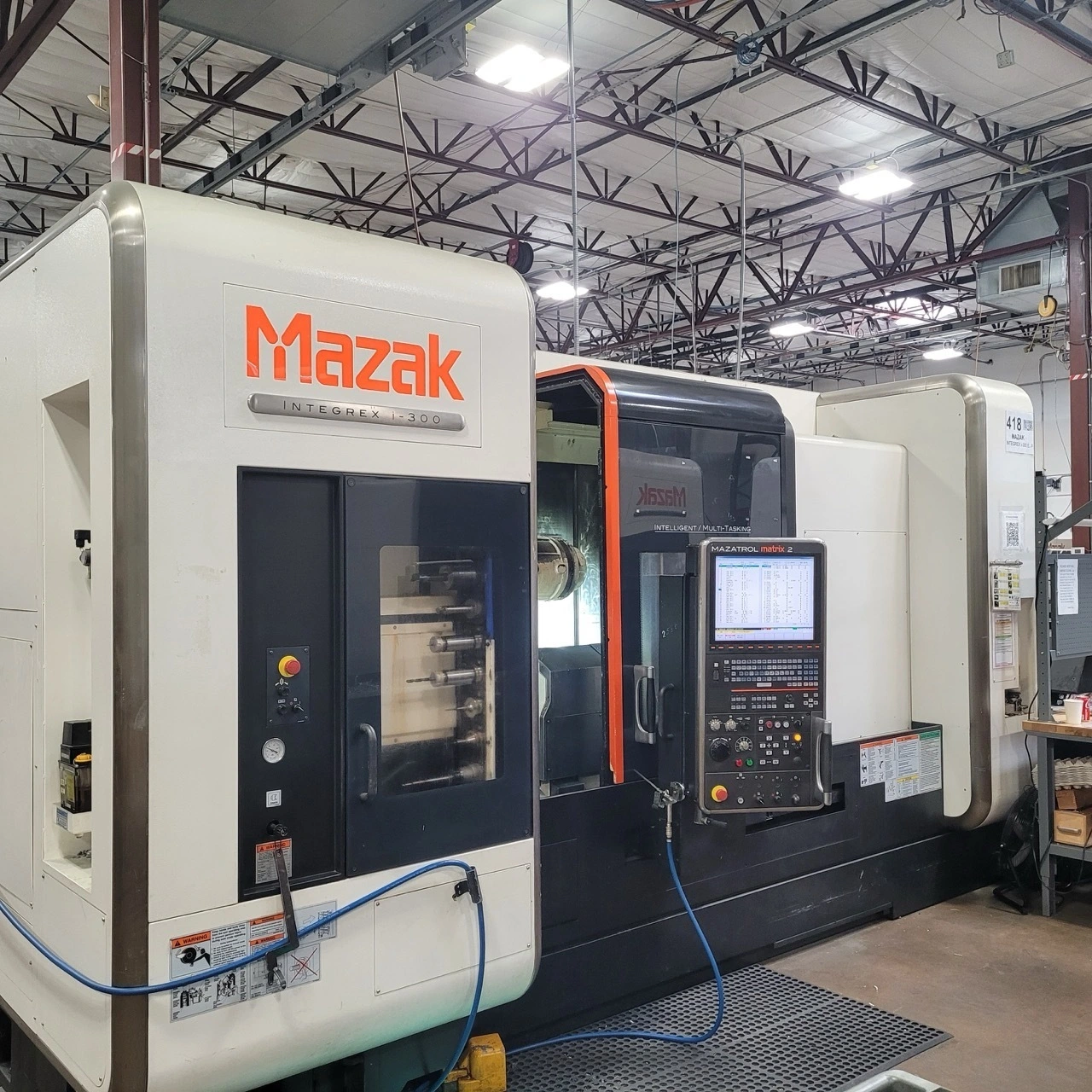

USED 2011 MAZAK INTEGREX I-300
Overview
Used 5-axis lathe, equipped with Mazatrol Matrix 2 CNC Control, chip conveyor, live milling, and tailstock. Max machining diameter 25.9", main spindle speed 4,000 RPM, tool changer capacity 36.
Specs
Max. swing / Swing over cross slide: 25.9″
Max. machining diameter (Upper turret): 25.9″
Max. machining length: 39.8
Max. bar work capacity: 3.15″
X Axis Travel: 24.2″
Z Axis Travel: 42.4″
Y Axis Travel: 10.24″
B Axis Travel: 30° ～ 210°
Chuck Size: 10″
Main Spindle Speed: 4,000 RPM
Main spindle nose: A2-8
Main spindle bore: 3.58″
Minimum main spindle indexing increment: 0.0001°
Milling spindle speed: 12,000 RPM
Boring bar shank diameter: 1.5″
B-axis minimum indexing increment: 0.0001°
Tool Changer Capacity: 36
Spindle Motor: 30/40 HP
Milling Spindle Motor: 20 / 30 HP
Equipped With
Mazatrol Matrix 2 CNC Control
Chip Conveyor
Live Milling
Y Axis
Tailstock
EIA
EIA 3D Comp
Sync. Mill Tapping
Tilted Working Plane
