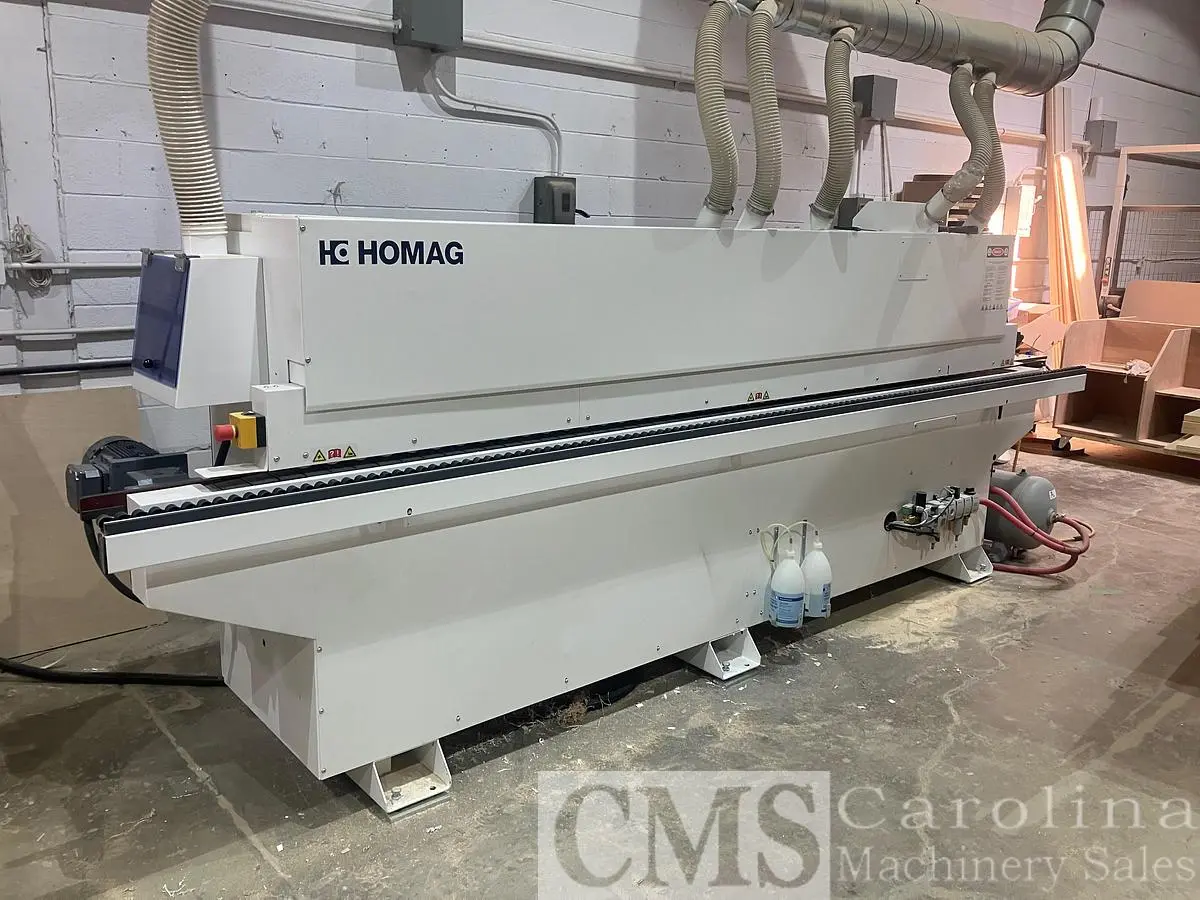

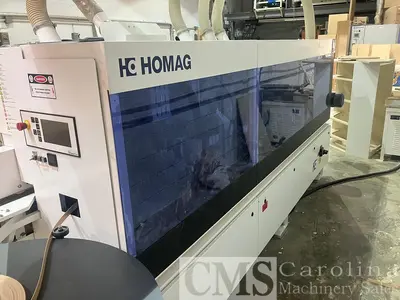

USED 2022 HOMAG EDGETEQ S200 EDGEBADER WITH AIRTEC

This machine is in excellent condition. The owner has sold the property and is removing all machinery by the end of August 2026. System will be removed by MFG rigger who performed the installation.
Electric: 400v/3ph
Manufacturer specs (to be confirmed):
• Feed Speed: 8 m/min.
• Workpiece Panel Thickness: 8 mm to 40 mm (extendable up to 60 mm with options).
• Minimum Workpiece Width: 70 mm.
• Edgebanding Material Thickness (Coils): 0.3 mm to 3.0 mm.
• Edgebanding Material Thickness (Strips/Solid Wood): 0.4 mm to 3.0 mm.
Standard Unit Configuration
• Pre-Milling Unit: Two counter-rotating diamond-tipped cutter heads ensure tear-free, perfectly square panel edges.
• Gluing Unit (QA 65): Quick-change system compatible with standard EVA and moisture-resistant PUR adhesives.
• AirTec Unit ("AT" Designation): Integrated hot-air zero-joint technology that fuses specialized co-extruded edgebanding for seamless, glue-free edges.
• Heavy-Duty Guillotine: Cuts up to 3.0 mm PVC/ABS directly from the heavy 800 mm coil table.
• Pressure Zone: One driven main pressure roller and two secondary idle rollers guarantee tight joints.
• End Trimming Unit: Two-motor snipping unit for ultra-precise front and rear flush cuts.
• Top/Bottom Fine Trimming: Multi-functional unit easily adjustable between radius, chamfer, and flush trimming.
• Corner Rounding / Contour Trimming: Fully finishes the ends and profiles, including complete corner processing.
• Post-Processing Stations: Includes profile scraping (radius), flat glue joint scraping, and a dual-motor buffing station.
•
Control & Footprint
• Interface: easyTouch 7-inch color touchscreen capable of storing 20 custom user programs.
• Machine Length: Compact frame at approximately 3,690 mm to 4,600 mm
• Weight: 1,200 kg.
