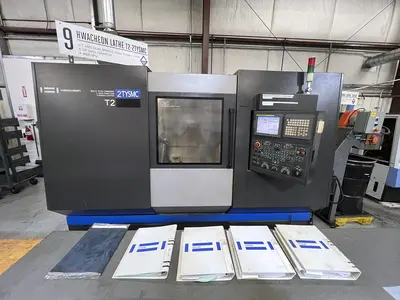

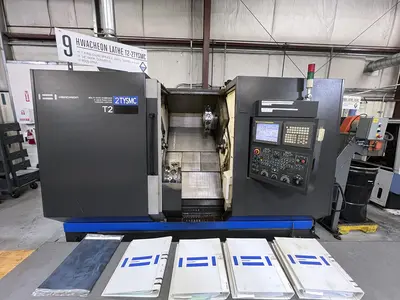

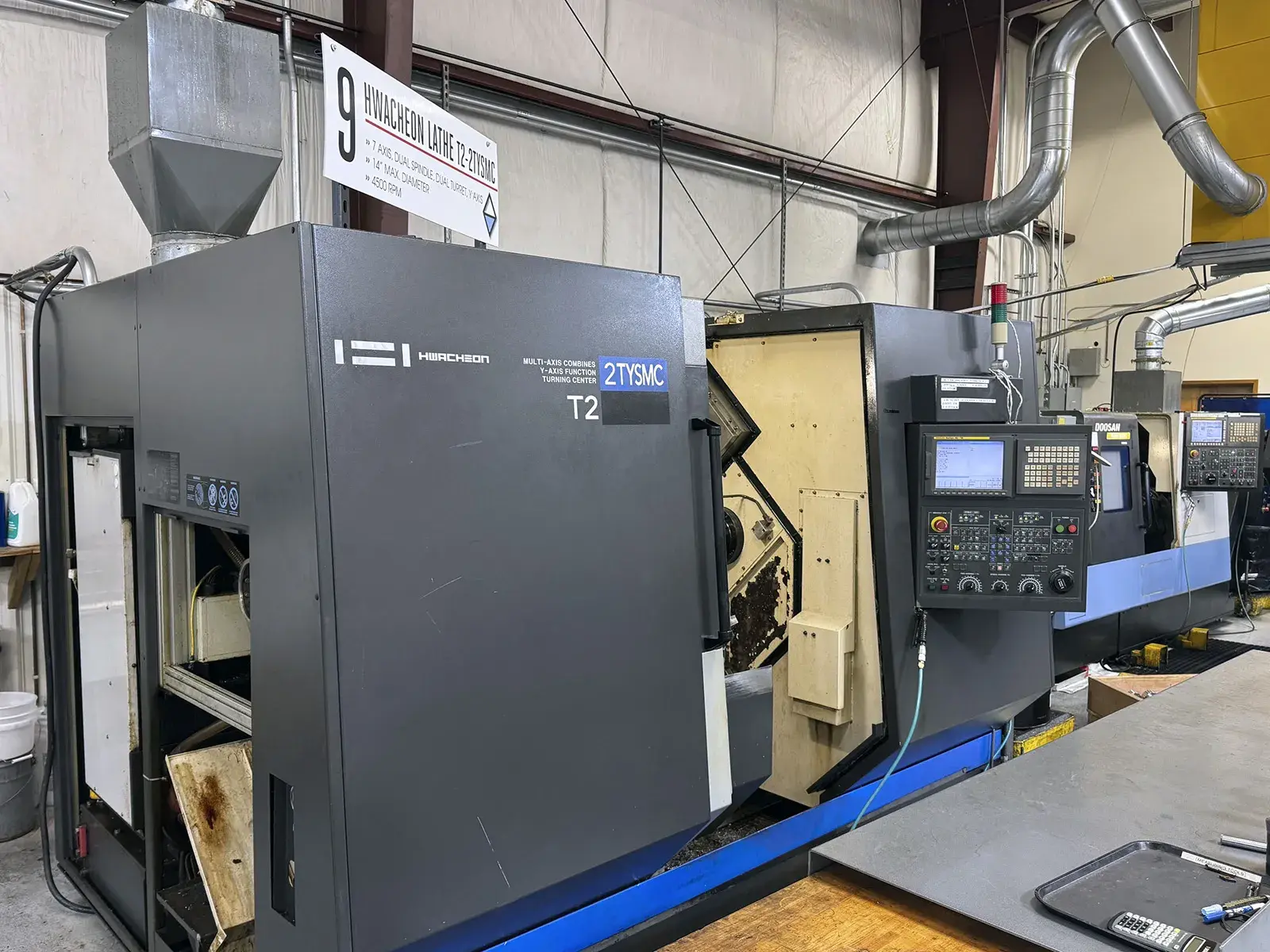

USED 2009 HWACHEON T2‑2T YSMC
Overview

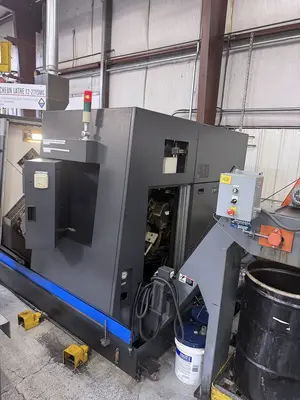

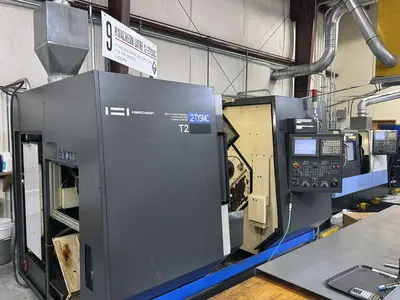

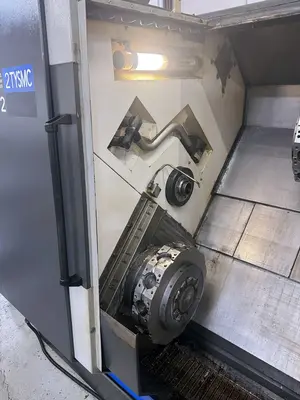

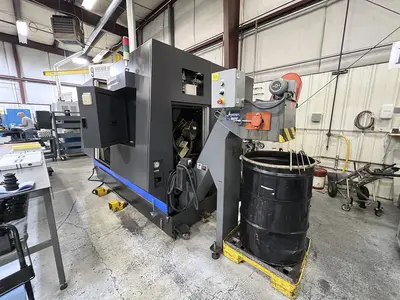

The Hwacheon T2-2T YSMC (2009) is a high-performance multi-axis CNC turn-mill center designed for complete, done-in-one machining. Featuring twin spindles, Y-axis capability, and live tooling, it efficiently performs turning, milling, drilling, tapping, and cross-machining in a single setup. Ideal for aerospace, automotive, hydraulics, medical, and precision manufacturing of complex, high-tolerance components.
Specs
Max Turning Diameter: 14.17" (360 mm)
Max Turning Length: 23.62" (600 mm)
Swing over Bed: 20.47" (520 mm)
Swing Over Carriage: 13.78" (350 mm)
Bar Capacity: 2.56" (65 mm)
Spindle Speed: 4,500 RPM
Spindle Nose: A2‑6
# of Axis: 7 axis
X Axis Travel: 8.27" (210 mm)
Z Axis Travel: 23.62" (600 mm)
Y‑Axis Travel (Upper Turret): ±2.0" (±50 mm)
Live Tool Motor: 5 HP (3.7 kW)
Live Tool Speed: 4,500 RPM
Turret Stations: 12 (Per Turret)
Equipped With

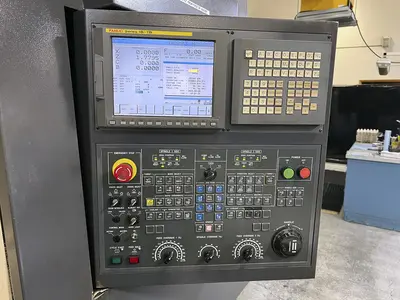

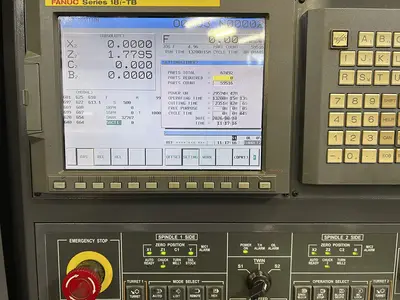

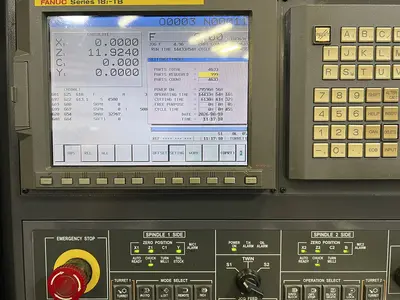

Fanuc 18‑TB CNC Control
Sub Spindle

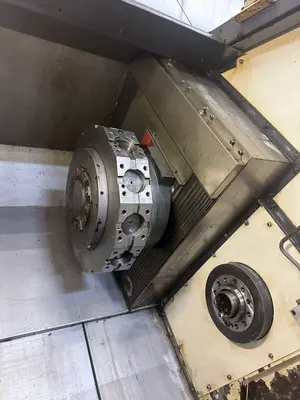

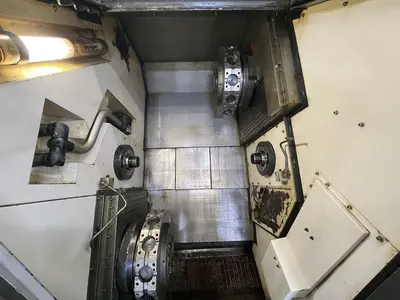

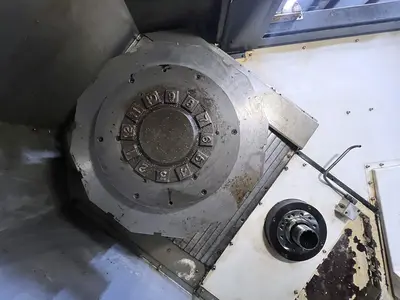

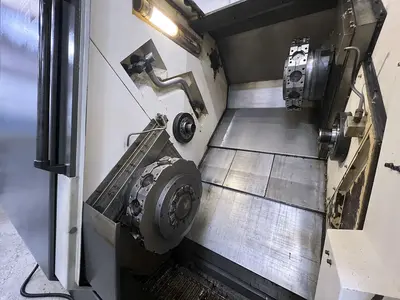

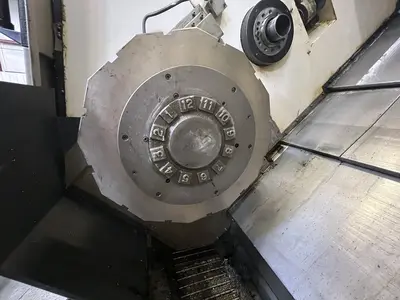

Twin Turrets: 12 Stations
Automatic Tool Presetter Arm

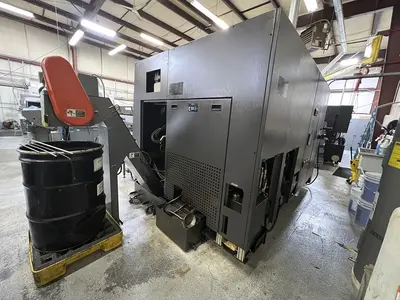

Jorgensen Chip Conveyor

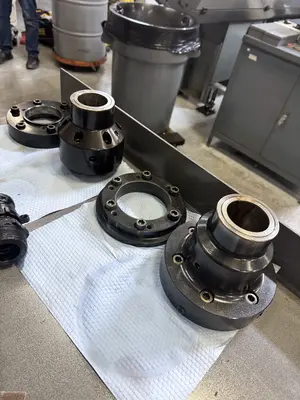

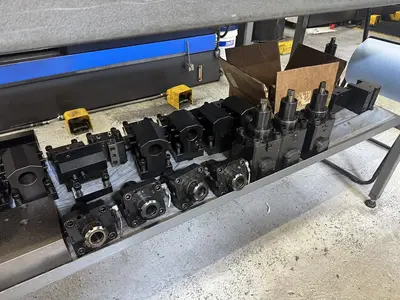

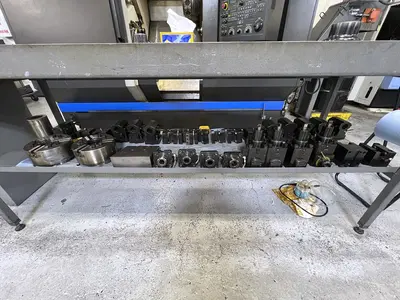

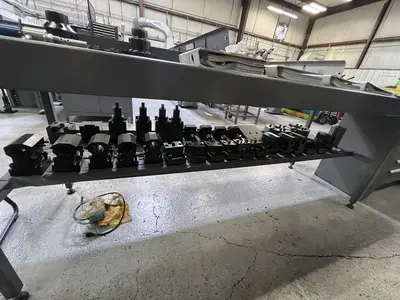

Eight (8) Live Tool Holders: 4 radial. 4 right hand offset

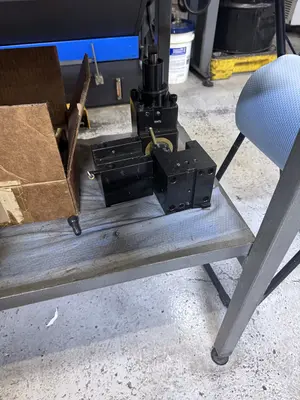

Fourteen (14) Static Tool Holders
Two (2) Live Tool Drive Couplings

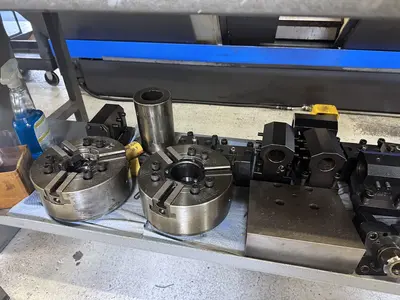

Two (2) Hydraulic 3 Jaw Chucks

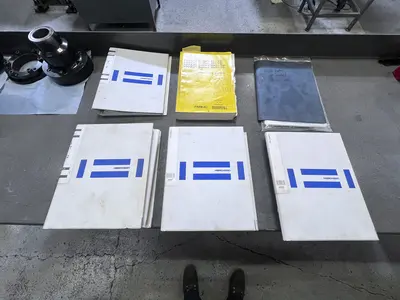

Manuals
