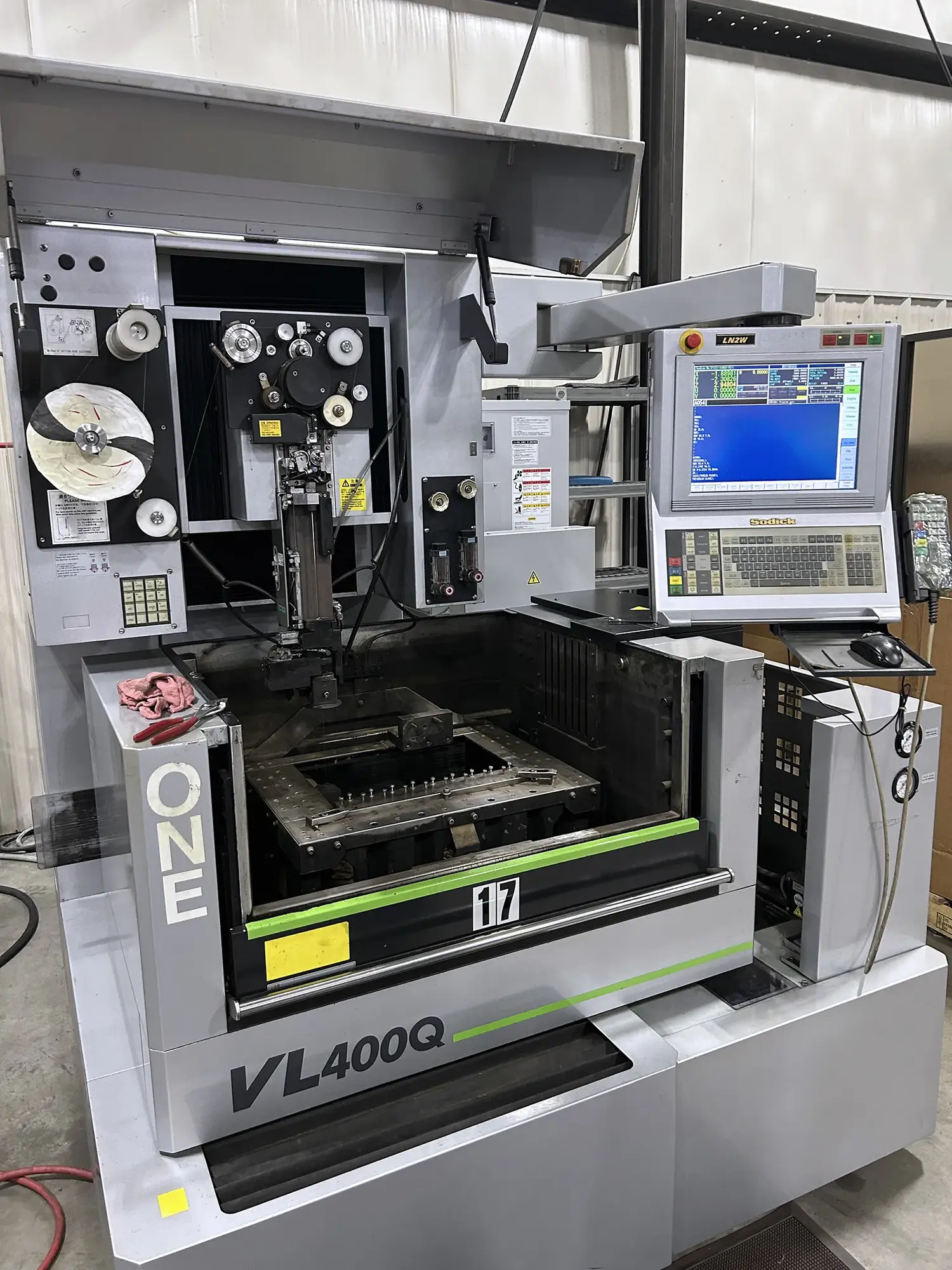

USED 2021 SODICK VL-400Q
Overview
The 2021 Sodick VL-400Q Wire EDM delivers exceptional precision for toolroom, prototype, and production machining. Designed to cut hardened steels, titanium, Inconel, and other conductive materials with outstanding accuracy, it excels in tool & die, aerospace, medical, electronics, and precision engineering applications. Ideal for producing stamping dies, mold inserts, intricate 4-axis tapered profiles, surgical components, and complex high-tolerance parts with superior surface finishes.
Specs
Axis Travels (X x Y x Z): 15.74” X 11.81” X 8.66”
U, V Travels: 3.14” X 3.14”
Worktank Dimensions: 33.85” X 27.16”
Max. Workpiece Weight: 1,100 Lbs
Wire Diameter: 0.1mm - 0.3mm
Machining Method: Flushing / Submerged
Distance From Floor to Table Top: 35.43”
Machine Tool Dimensions: 79.52” X 90.94” X 78.35”
Machine Weight: 5,952 Lbs
Equipped With
Chiller unit
auto wire threader
**All options to be verified by buyer**
