USED 2015 LNS SPRINT 565

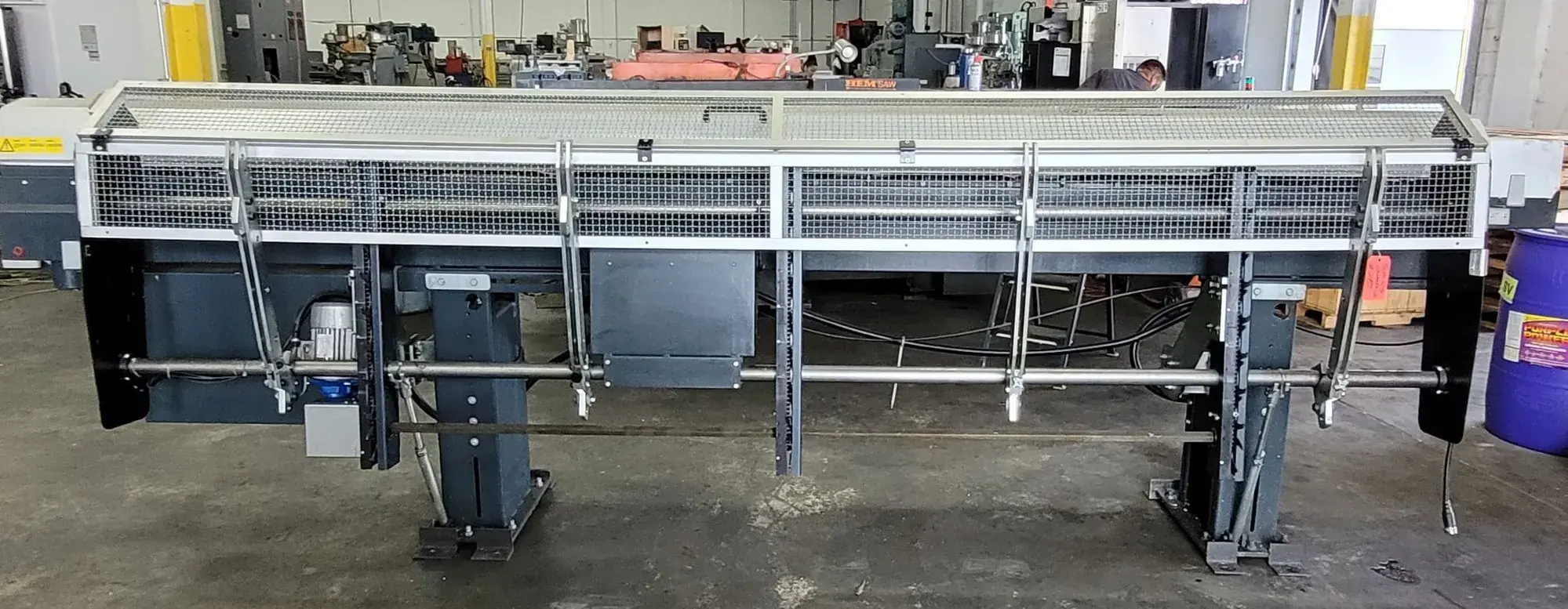

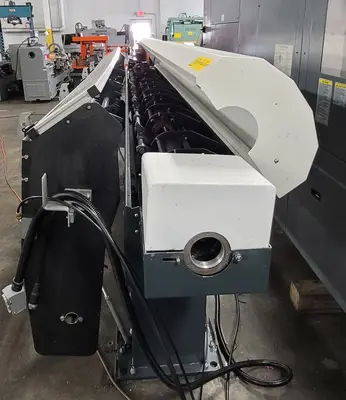

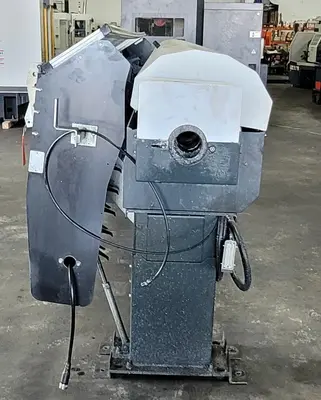

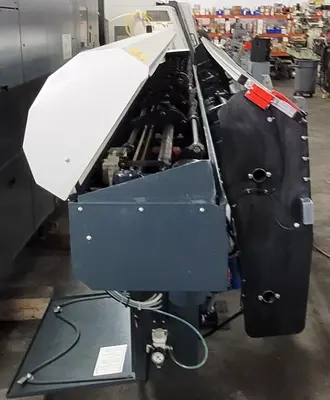

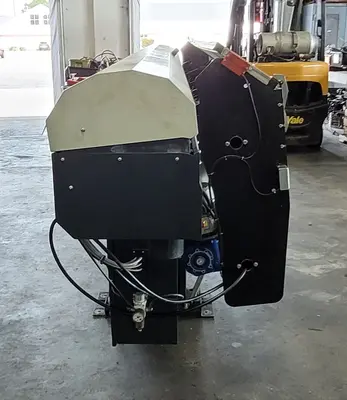

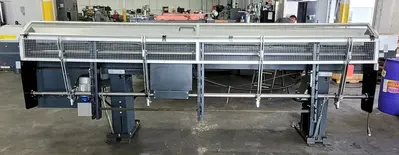

The Lns Sprint 565 is a swiss-made bar feeder manufactured in 2015, designed for fixed headstock type machines. It operates on an income voltage of 220-480V with a 24V DC control voltage, 3-phase power, a frequency of 50/60 Hz, and a full load amperage (FLA) of 5.5-1.6A. This bar feeder accommodates a diameter range of 5 mm to 65 mm (1/4" to 2-1/2") and supports bar length options of 2200 mm, 3200 mm, 3800 mm, and 4200 mm (up to approximately 14 feet). The system provides a loading capacity of 9 bars for the maximum 65 mm diameter or 11 bars for a 52 mm diameter, with a maximum remnant length of 450 mm. Efficiency features include a partial changeover time of 2 minutes and a total changeover time of 10 minutes. The machine has an approximate weight of 3,080 lbs (1,397 kg) and overall physical dimensions measuring 180”L X 54”W X 58”H.
