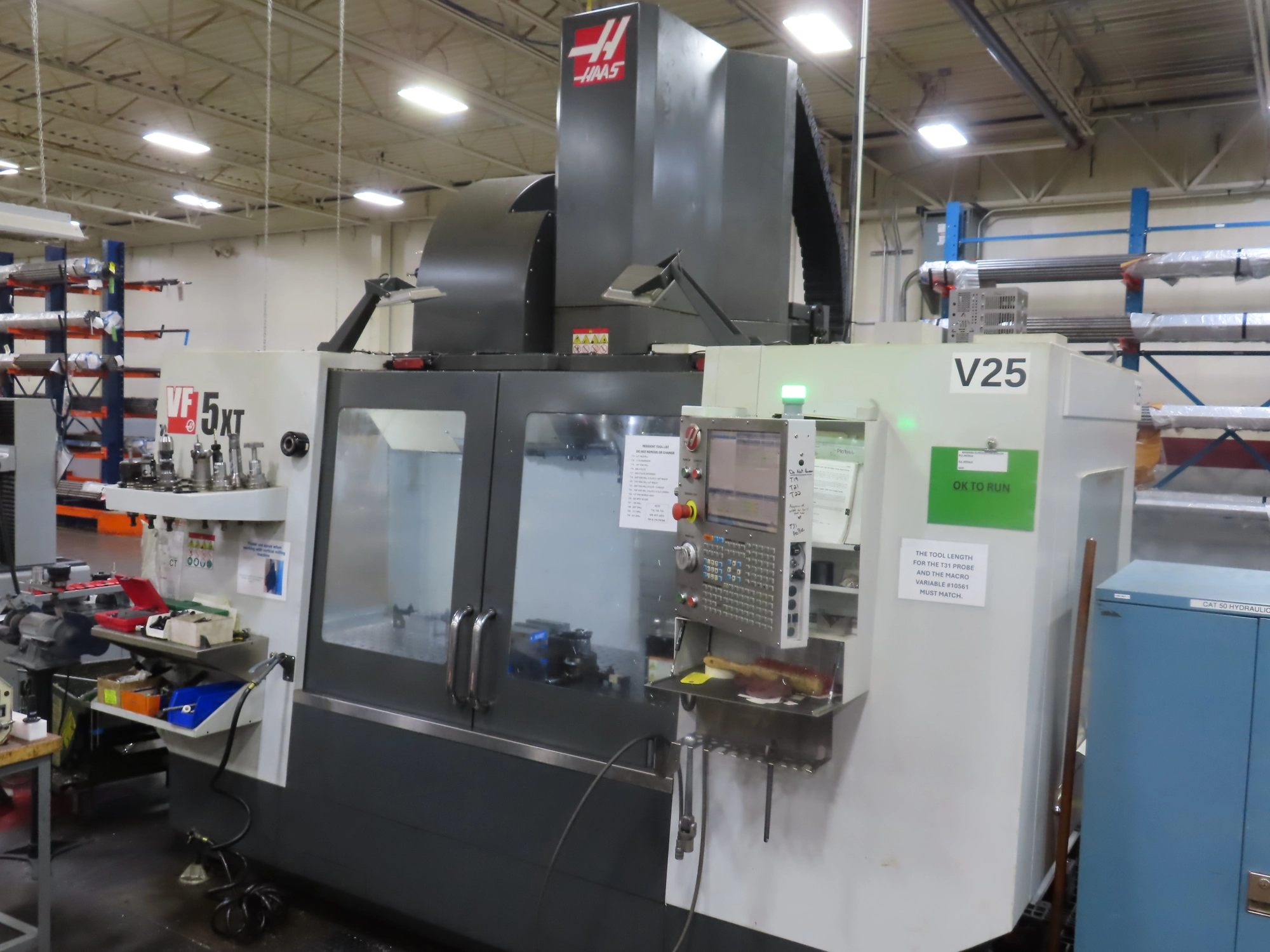

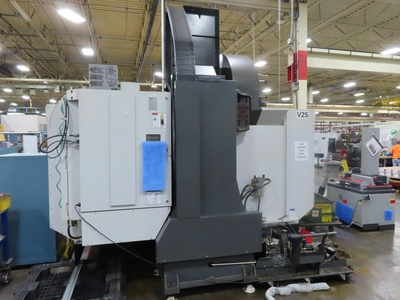

USED 2016 HAAS VF-5/50XT
Overview
Haas offers a wide range of VF Series 50-taper machines to match any size and production requirement. The VF-5/50XT offers more X-axis travel than the VF-5/50, and a larger spindle taper and more torque than the VF-5/40. High Power 2-speed gearbox 50-taper spindle. Customizable to your needs. Ideal for tougher materials and larger-diameter cutting tools. These workhorses are well suited to high material removal rates, no matter what kind of cut you’re taking. And they come equipped with an upgraded feature package that includes a side-mount tool changer, chip auger, programmable coolant nozzle, and remote jog handle.
Specs

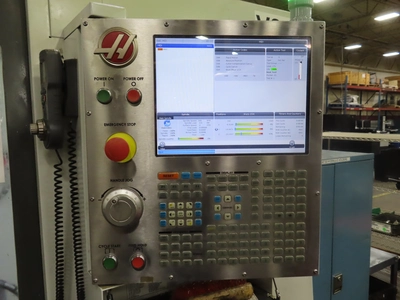

Machine Control:: Haas NextGen CNC Control
Table Size:: 62" x 23"
Machine Travels (X/Y/Z):: 60" x 26" x 25"
Table Capacity:: 4,000 Lb Max Table Load
Spindle To Table Distance:: 7" - 32"

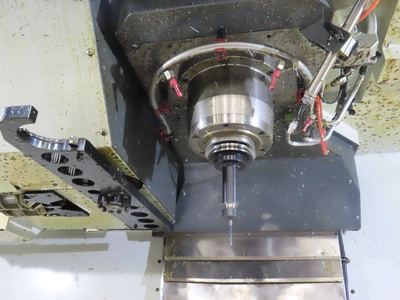

Spindle Taper:: Cat 50
Spindle Speeds:: 7.500
Transmission:: 2-Speed Gearbox
Rapid Traverse Rate (X/Y/Z):: 540 IPM on X, 710 IPM Y and Z OR 710 IPM
Maximum Cutting Feed Rate:: 500 IPM

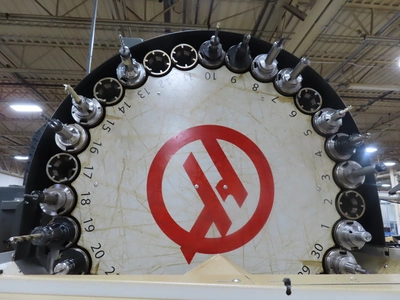

Tool Changer Style:: Side Mount, Twin Arm
Tool Changer Capacity:: 30 + 1 Stations
Tool Change Time:: 4.2 Seconds Tool to Tool
Max Tool weight:: 12 Lbs.
Spindle Drive:: 30 HP Vector Spindle Drive
Power Requirement:: 440 Volt 3 Phase
Equipped With

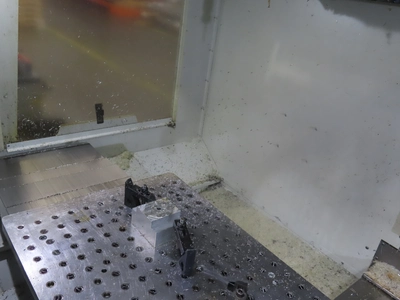

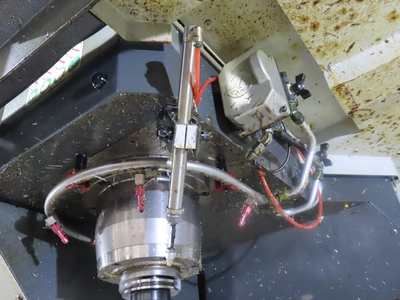

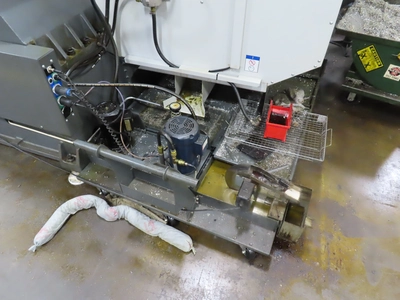

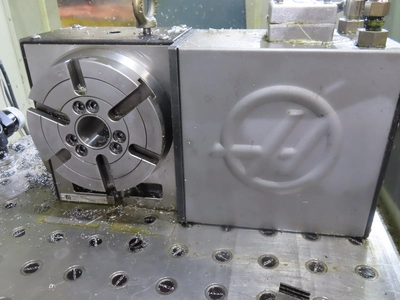

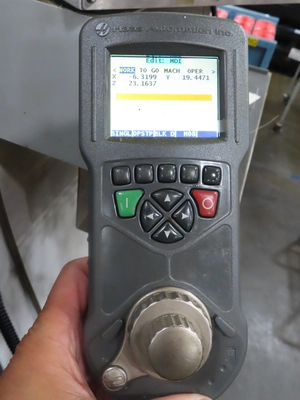

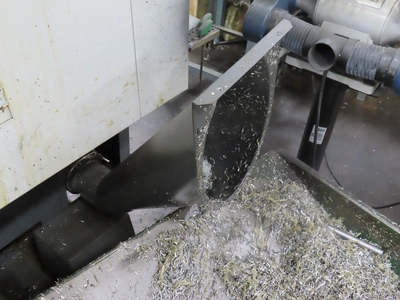

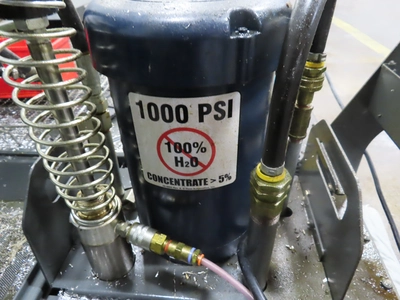

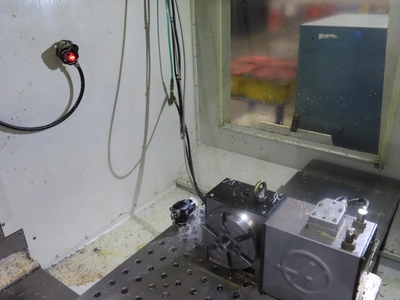

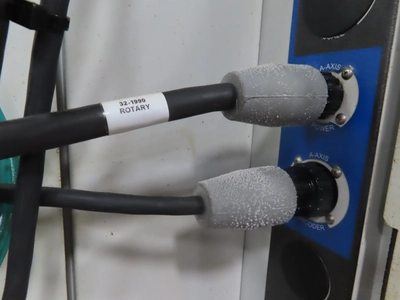

Haas NextGen Control Haas HRT-160 Rotary Table, 4th Axis Drive, 1000 PSI Thru Spindle Coolant, Renishaw Probing System with Parts Probe and Tool Setter, CAT 50, 7500 RPM, 2-Speed Gearbox, Programmable Coolant, Automatic Air Gun, Remote Jog Handle with Color LCD, Rigid Tapping, High Intensity Lightning, Chip Auger, 95 Gallon Coolant Tank, Drilled and Tapped Subplate. NOTE: Tool holders and workholding in pictures and video are NOT included.
