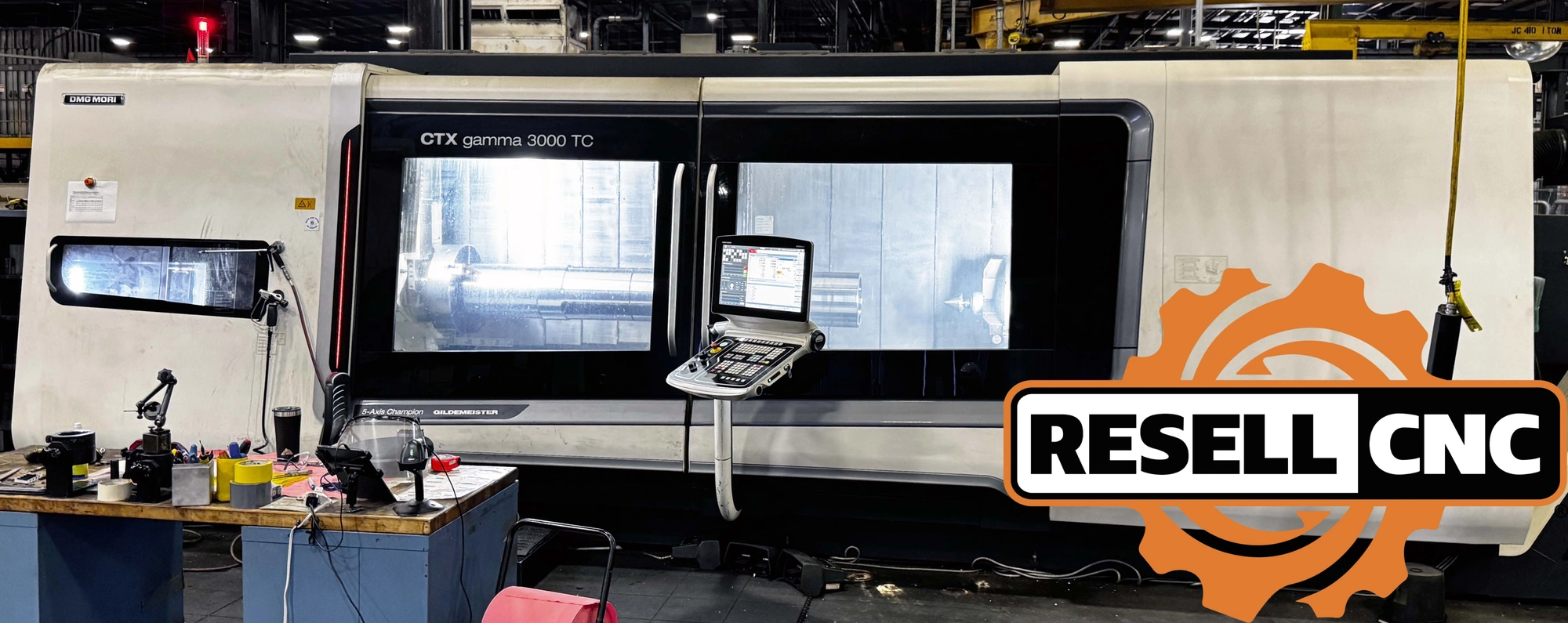

USED 2020 DMG Mori CTX Gamma 3000 TC

X2nd Chuck Description: 20" 3-Jaw SMW Autoblock with 7" Hole
X2nd Turret Live Tooling: false
X4th Axis: false
X5th Axis: true
Additional Machine Specs: Y-Axis Travel: 16.5"

Max Workpiece Size: 29.8" x 120"

C-Axis Resolution: .001 Degree

SAW SLU-6.25 Hydraulic Steady Rest

DMG Chip Conveyor

Capto Tooling Taper (Capto C8)

Grundfos Pumps (2); Spindle Chiller

Cutting Feedrates: .001-500 IPM

Bar Capacity: 6.5
B Axis: true
B Axis Travel: +/- 120 Degrees
C Axis: true
Chip Removal: Chip Conveyor
Chuck Description: 20" 3-Jaw SMW Autoblock with 7" Hole
Chuck Size: 20.0
Control Make Model: Siemens control
Coolant Type S: Flood Coolant, High Pressure Coolant
Distance Between Centers: 118.1
Live Milling Hp: 48
Live Milling Max Rpm: 12,000
Live Milling Thru Spindle Coolant: false
Live Tooling Milling: true
Machine Options: Mist Collector
Max Cutting Turning Diameter: 27.6
Max Swing Over Bed: 27.6
Max Turning Cutting Length: 118.0
Programmable Tailstock: false
Rapid Traverse: 1968
Second Chuck Size: 20.0
Second Spindle Motor: 60
Second Spindle Speed: 5,000
Single Turret: true
Single Turret Live Tooling: true
Spindle Motor: 60
Spindle Nose: C8
Spindle Speed: 5000.0
Steadyrest Type: Hydraulic
Sub Spindle: true
Tailstock: false
Tool Positions: 80.0
Total Spindles: 2
Twin Turret: false
X Travel: 31.5
Y Axis: true
Z Travel: 120.0
