USED 2024 Supertec G25P-50H
Overview

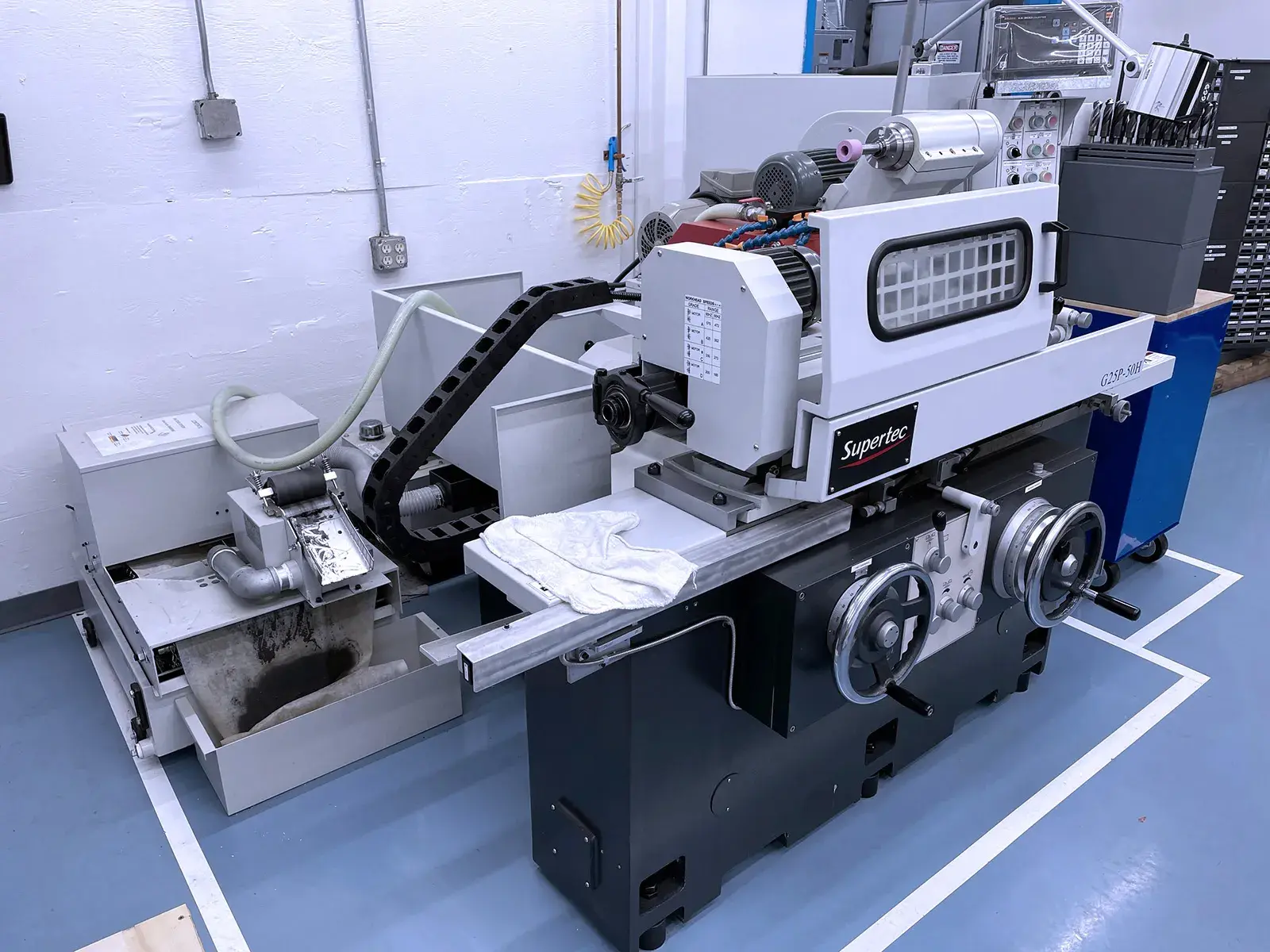

The Supertec G25P-50H Universal Cylindrical Grinder (2024) is a high-precision grinding machine engineered for exceptional OD, ID, face, and taper grinding with superior accuracy and surface finishes. Ideal for toolrooms, job shops, aerospace, automotive, and precision manufacturing, it delivers outstanding performance for shafts, hydraulic components, mandrels, gauge blocks, valve spools, and other critical cylindrical parts requiring tight tolerances.
Specs
DISTANCE BETWEEN CENTERS: 20"
Swing Over Table: 10"
Max. Grinding diameter: 10"
Max. Load Held Between Centers: 176 lbs
Table Swiveling Angle (R&L): ± 30°
Infeed/Handfeed Travel: 6.3”
Hydraulic Rapid Traverse: 1-3/4”
Swivelling Angle (R&L): +7o/-9o
Traverse Speed (Inf.Var.-Hydraulic): 2”~40”
Handwheel per Revolution: 0.39”
Workhead Swiveling Angle (R&L): ±45o
Spindle Speed: 2000/18000 (opt:25000)
Max. Grinding Bore: ø1.18”~3.94”(opt. ø0.79”~1.97”)
Max. Grinding Length: 4.33” (opt.2.17”)
Max. Chucking Length: 12-2/5”
Max. Chucking Diameter: ø6”
Hydraulic Pump: 1 HP
Internal Grinding Motor: 2 HP
Net weight: 4510 lbs
Gross weight: 5610 lbs
Packing dimension: 89” x 65” x 75”
Equipped With
Mitutoyo KA-200 two-axis DRO
3-Jaw chuck (5")
4-Jaw chuck (5”)
(2) 5C Back plate (5")
Manual lever type 5C collet closer
Coolant system
Radious Dressing Attachment
Angle Dressing Attachment

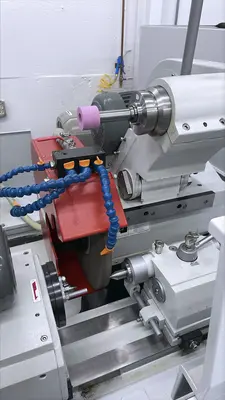

Swing-down internal-grinding attachment
Chuck for ID attachment
Two axis (X & Z axis) digital readout
2-Point steady rest
3-Point steady rest
(3) 5” Spare wheel flange
Table dial gauge attachment
Variable spindle speeds for workhead (230V/3ph/1hp)
