USED 2017 YCM TC-200LM
Overview
YCM TC-2000LM available, a used slant bed CNC lathe suitable for precision manufacturing. Ideal for enhancing operational capability.
Specs

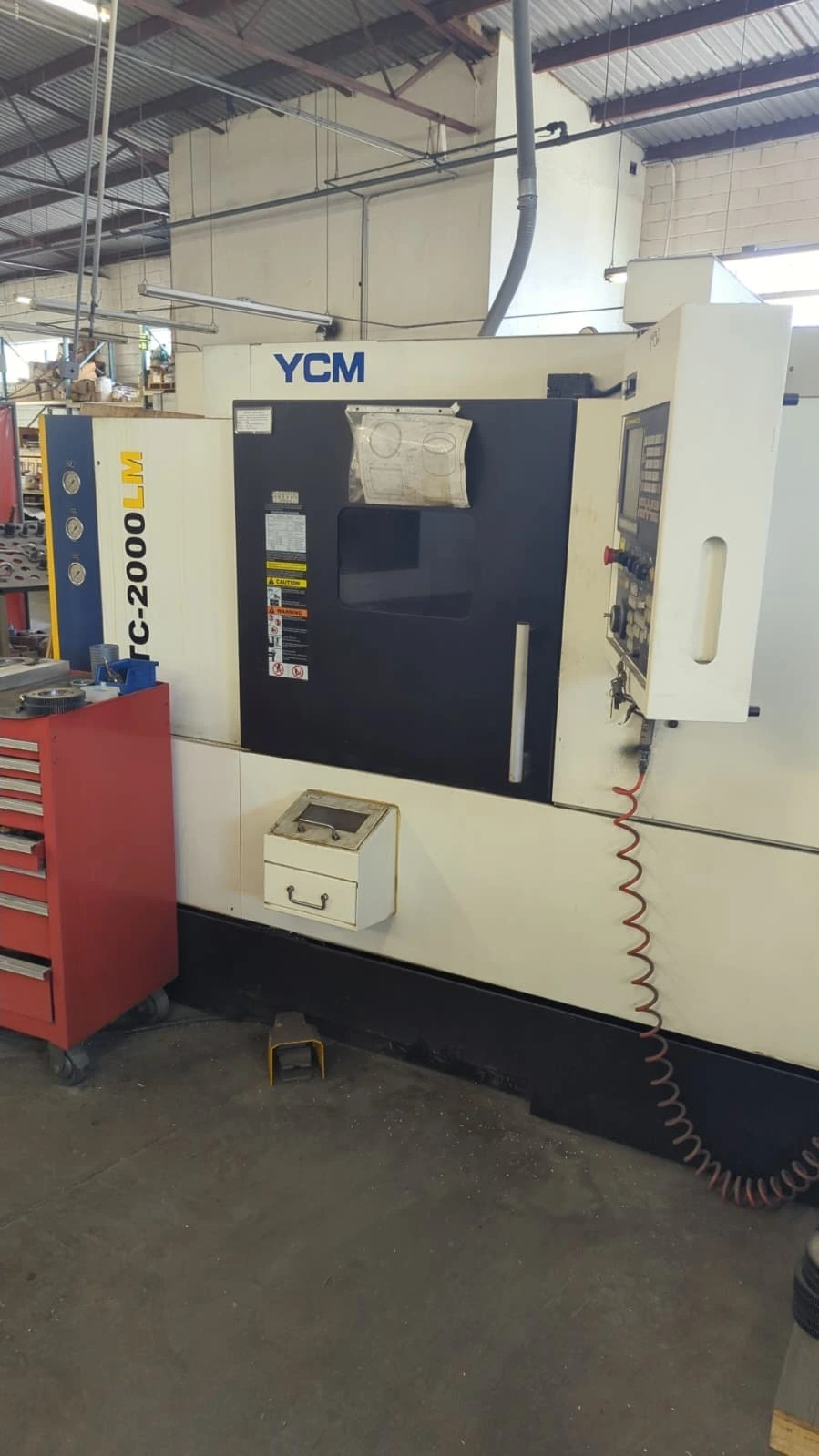

2017 YCM TC-2000LM CNC Lathe w/ Live Tools #8341
Specifications:
Max Turning Diameter: 11.8"
Max Turning Length: 20.1"
Swing Over Bed: 23.6"
Bar Capacity: 2.56"
Chuck Size: 8"
Spindle Speed: 4,500 RPM
Spindle Motor: 20 HP
Spindle Bore: 2.95"
Spindle Nose: A2-6
X-Axis Travel: 7.1"
Z-Axis Travel: 22.0"
Turret Capacity: 12 Stations
Live Tooling Speed: 4,000 RPM
C-Axis: 0.001° Indexing
X-Axis Rapid: 945 IPM
Z-Axis Rapid: 1,181 IPM
Approx. Weight: 9,000 lbs
Approx. Dimensions: 104" L x 67" W x 73" H
Equipped With:
Fanuc CNC Control
12-Station Live Tool Turret
C-Axis
8" Hydraulic Chuck
Hydraulic Tailstock
Parts Catcher
Tool Presetter
Chip Conveyor
Coolant System
