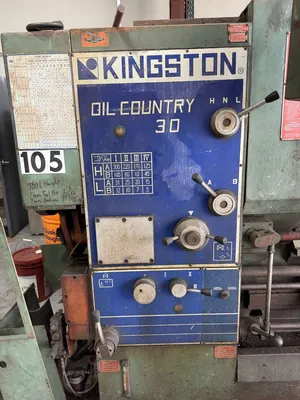

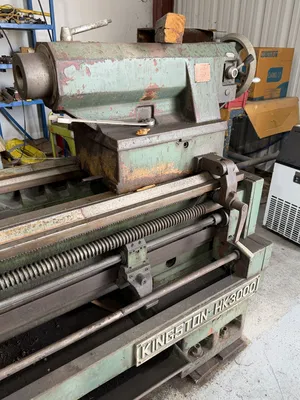

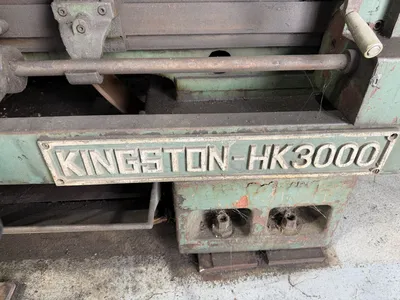

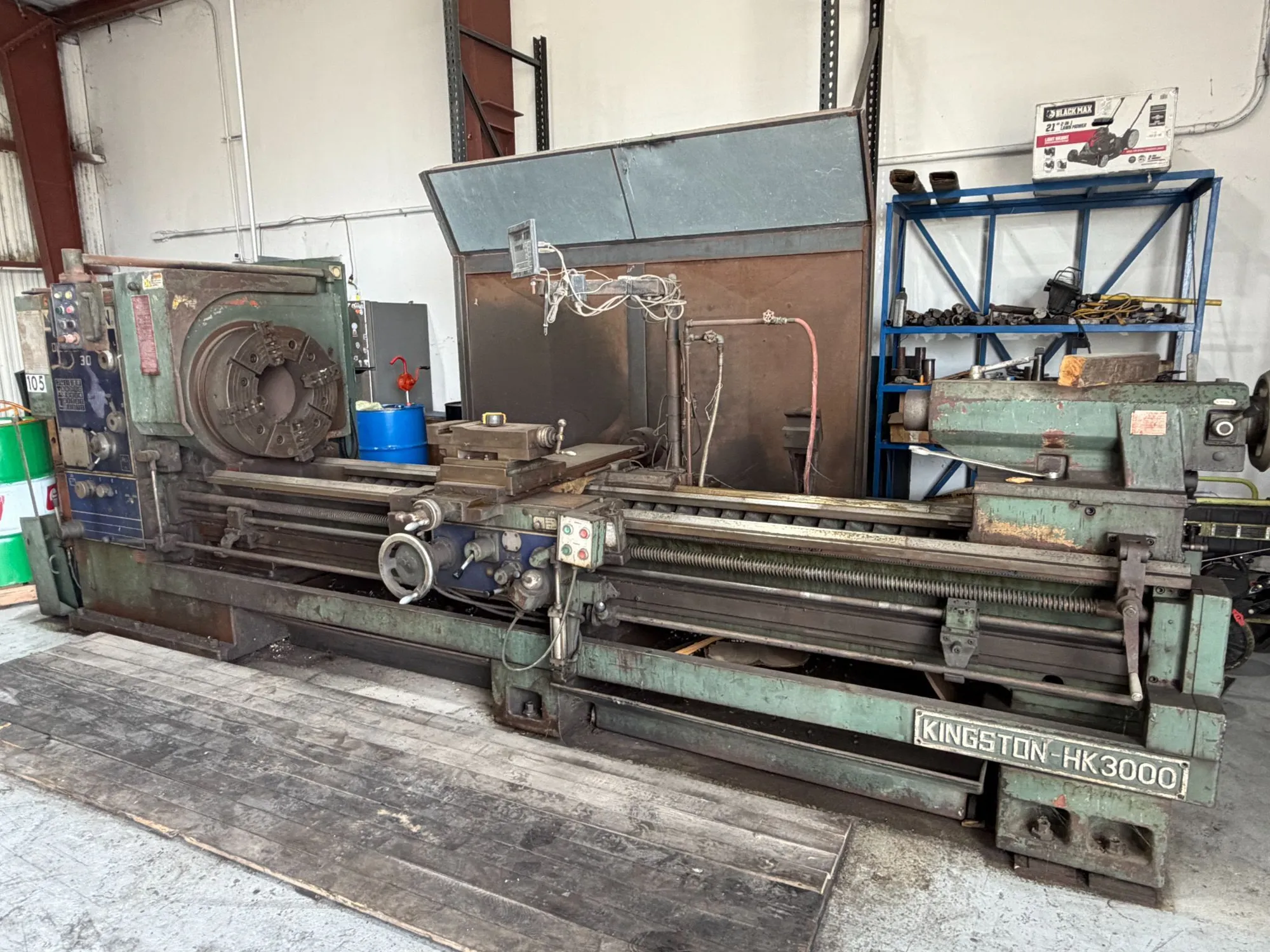

USED 1990 KINGSTON HK-3000

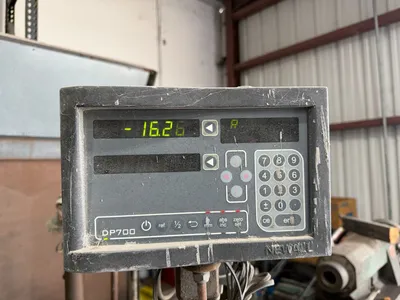

Kingston HK-3000 Manual Lathe with: Newall DRO and scales

Swing over bed - 30″
Swing over cross slide - 20.75″
Distance between centers - 118”
Width of bed - 22″
Height of center from leg bottom - 46.44”
Spindle bore - 12.5″
Taper of spindle bore & center - 3/4” Taper per Foot
Type of spindle nose - ASA A2-20
Number of spindle speeds - 16
Spindle rpm - 5 – 300 RPM
Number of feed changes - 40 Kinds
Range of feeds per revolution - 0.0024”-0.0337″
Longitudinal cross - 1/2 of Longitudinal Feed
Leadscrew diam. & threads per inch - 1.875” / 2 TPI
Threading - inch/metric
Threading range whitworth - 1 to 28 TPI (50)
Threading range metric - 1 to 28mm pitch (41)
Threading range module - 0.5 to 7 M (20)
Threading range d.p. - 4 to 56 D.P. (40)

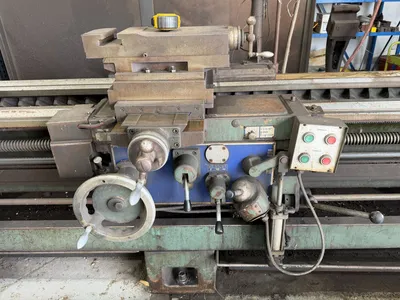

Maximum travel of compound - 9.75″
Maximum travel of cross slide - 21.25″
Tailstock quill travel - 11.75″
Tailstock quill diameter - 5.125″
Tailstock center - M.T. #6
Main drive motor - 20 HP (15kw), 6P
Coolant pump motor - 1/4 HP
Floor space - W: 86″ L: 205″
Machine weight - 17,700
