Used

USED BETENBENDER 10-3/16

California, United States
775Listings|102Followers
Overview

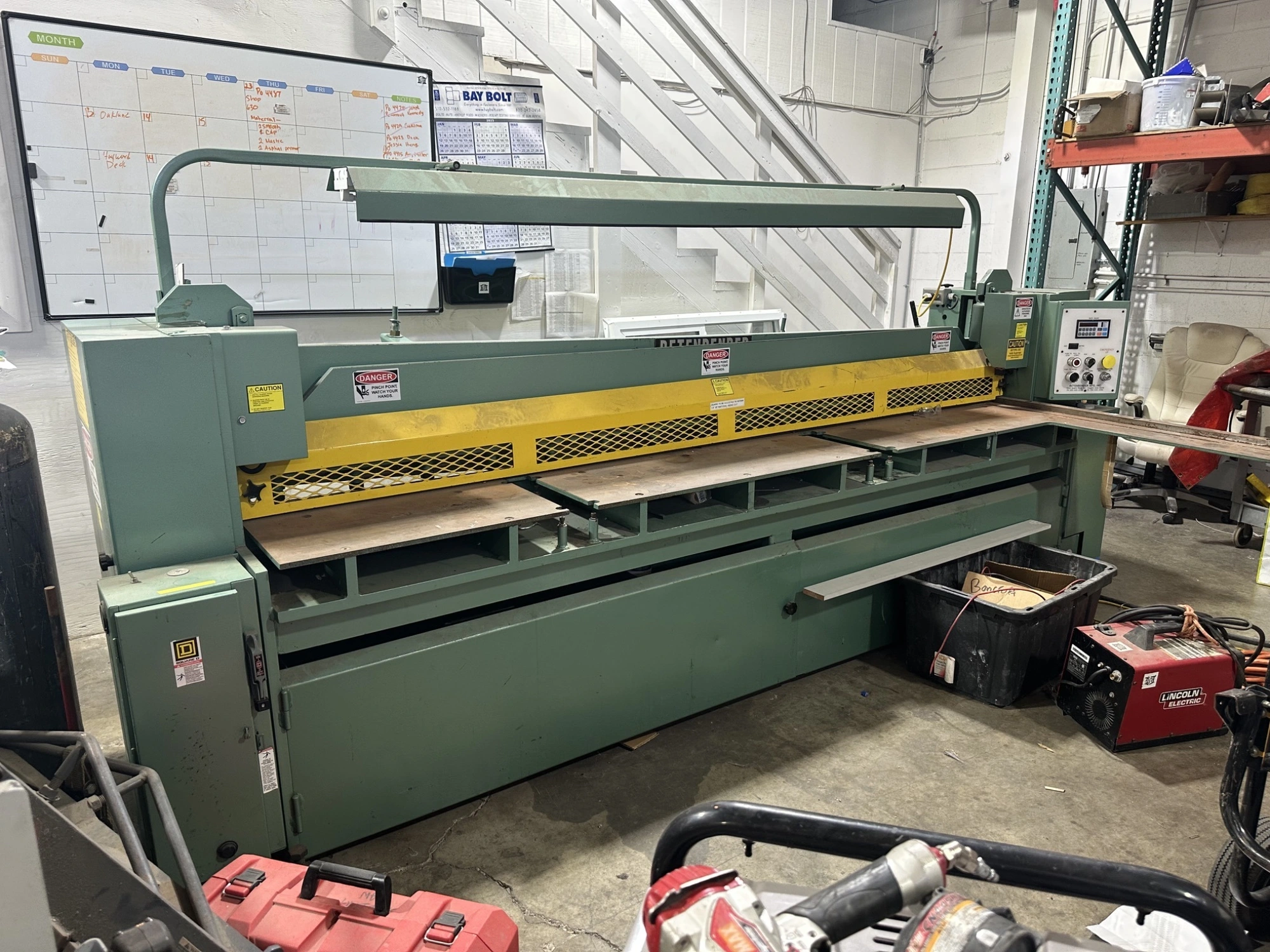

Power Squaring Shears (Gauge)

Betenbender 10-ft x 3/16-in hydraulic shear features a 124-inch cutting length, 30 strokes per minute, and a 10 HP motor. It handles 3/16-inch mild steel, 13-gauge stainless steel, and 1/4-inch aluminum.

Specs
Max Gauge
10 gauge
10 gauge
Length of Blade
124"
3,149.6 mm
Hyd/Mech
Hyd
Hyd
Power
10 hp
7.5 kW
SPM
30 strokes/min.
30 strokes/min.

Brand: Betenbender
Model: 10’ x 3/16”
Type: Hydraulic Shear
Year: 2008

Mild Steel Capacity: 3/16"
Stainless Capacity: 13 ga
Aluminum Capacity: 1/4"
Cutting/Knife Length: 124”
Table Height: 32”

52" squaring arm with inlaid scale (measure from front)
High-carbon, high-chrome shock-resistant 4-edge-indexed knives
2-position guarded 110V foot switch
Hydraulic self-compensating hold-down bar

Strokes Per Minute: 30
Motor: 10 HP, 208-230/460V, 3-phase
Hydraulic Pressure: 2500 psi

Machine Weight: 9,100 lbs
Overall Dimensions (L x W x H): 145" x 74" x 55”

** No motorized back gauge. Set up for OEM 36” back gauge that integrates into control. Aftermarket price of approx $13,000.

Price as equipped new: $69,100

Location Oakland, CA - “AS-IS, WHERE-IS”, with all faults, off seller’s floor. Full Payment due prior to shipment. Buyer pays for removal. Immediate availability, subject to prior sale. Under power and available for in-person inspection. All specifications are assumed to be correct but must be confirmed by the purchasing entity.
