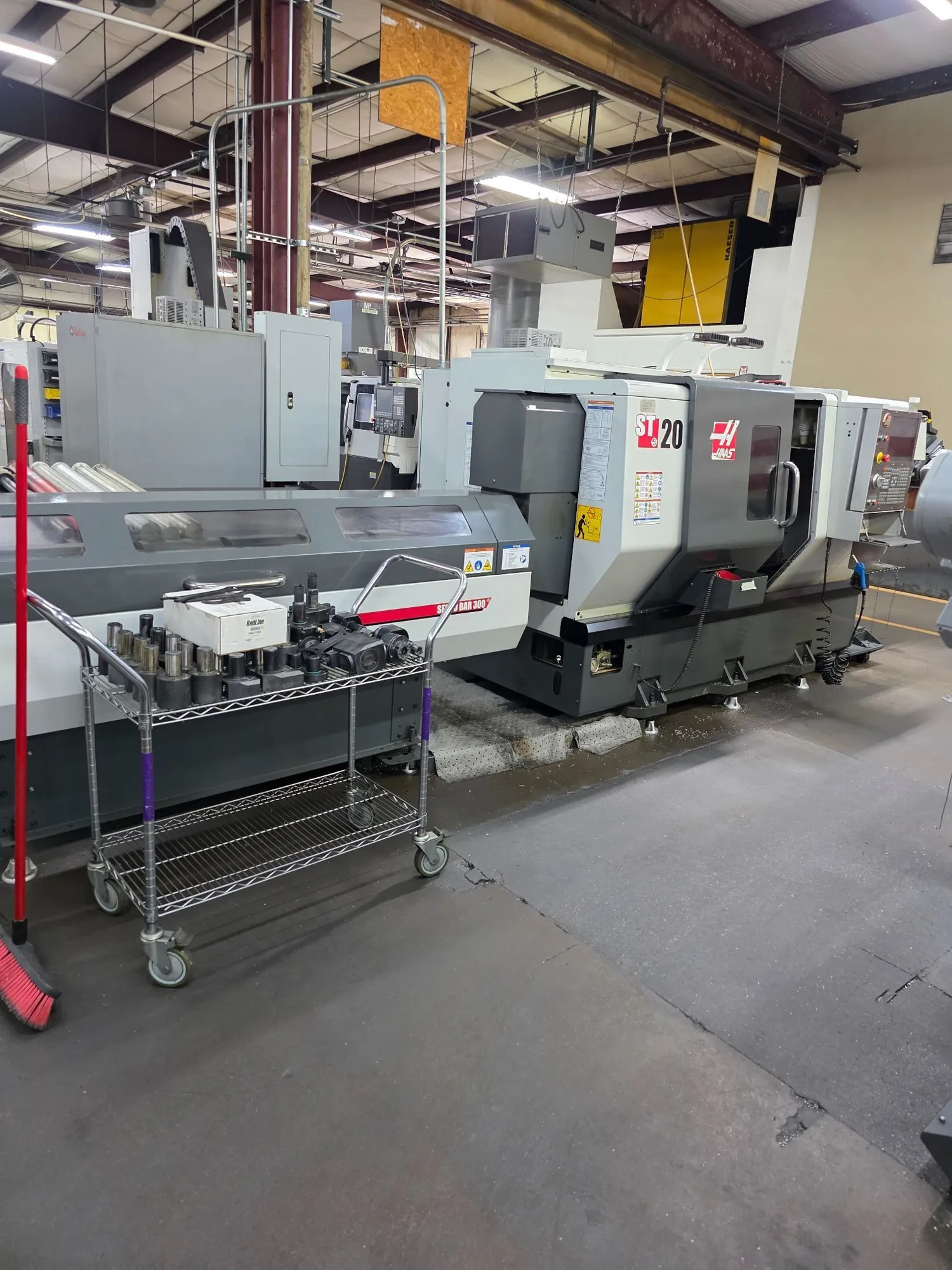

USED 2013 HAAS ST-20

To the best of our knowledge all details listed below are deemed correct.
It is the buyer’s responsibility to confirm all details and we encourage an inspection of the machine(s) and accessories prior to purchase.

General Specifications:
Swing Over Front Apron: 21"
Swing Over Cross Slide: 20.8"
Max. Cutting Diameter: 13"
Max Cutting Length: 21"
Bar Capacity: 2.5"
X Axis Travel: 8.4"
Z Axis Travel: 22.5"
Rapid Traverse All Axes: 945 IPM
Spindle Speeds: 4000/6000RPM
Spindle Nose: A2-6 / A2-5
Spindle Bore: 3.5"
Spindle Motor: 20 HP
Turret Capacity: 12 Stations
Tailstock Stroke: 21"

Machine Dimensions (without barfeed): 160" X 78" X 81"
Machine Weight of machine: 8,820 lbs
Barfeed : 90.0 in x 66.0 in x 56.0 in
Weight: 1,200 lbs
