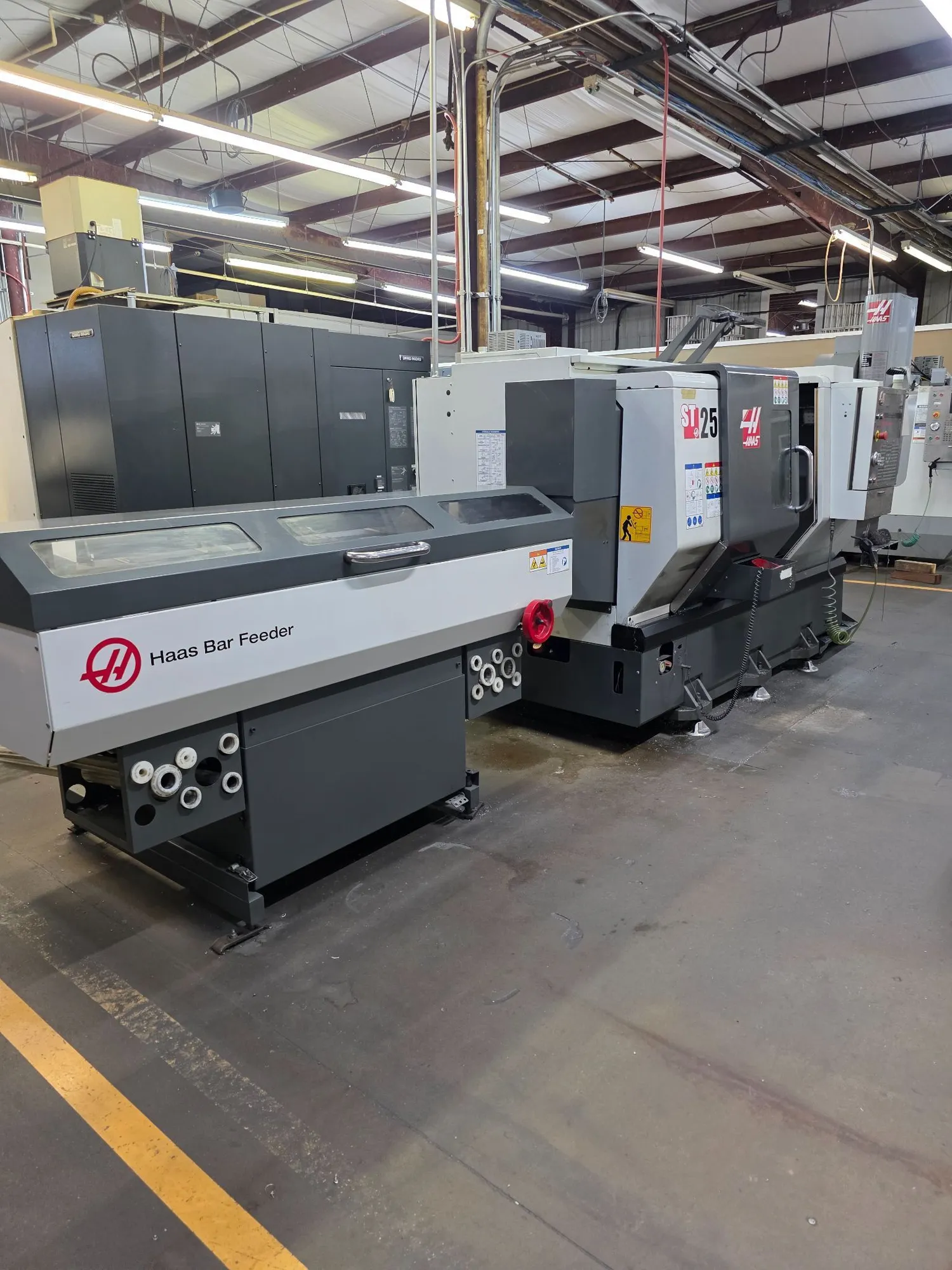

USED 2016 HAAS ST-25

To the best of our knowledge all details listed below are deemed correct.
It is the buyer’s responsibility to confirm all details and we encourage an inspection of the machine(s) and accessories prior to purchase.

Specs Direct From OEM Brochure:
Chuck Size: 10.0 in
Max Part Swing: 21.0 in
Max Cutting Diameter (with BOT turret): 13.00 in
Max Cutting Diameter (with BMT65 turret): 11.75 in
Max Cutting Diameter (with VDI turret): 11.80 in
Max Cutting Length (varies with workholding): 22.5 in
Bar Capacity: 3.00 in

X Axis: 8.40 in
Z Axis: 22.50 in

Rapids on X: 945 ipm
Rapids on Z: 945 ipm

Max Thrust X: 4100 lbf
Max Thrust Z: 5100 lbf

Main Spindle
Spindle Nose: A2-6
Max Rating: 30.0 hp 22.4 kW
Max Speed: 3400 rpm 3400 rpm
Max Torque: 300.0 ft-lbf @ 500 rpm 407.0 Nm @ 500 rpm
Spindle Bore: 3.50 in

Sub-Spindle
Chuck Size: 5.3 in
Spindle Nose: A2-5
Max Speed: 6000 rpm
Max Sync Speed w/Main Spindle: 3400 rpm
Chuck Throat: Ø 1.30 in x 1.37 in DEEP
Drawbar Bore (NON-THROUGH): Ø 1.00 in x 4.50 in DEEP
Spindle Bore (without chuck and drawbar installed): 1.50 in 38.1 mm
Integrated Brake Torque: 17 ft-lbf 23 N/m
Spindle Orientation Accuracy (Requires SO): ± 0.02 ° ± 0.02 °
Rapids (B-axis:) 400 ipm 10 m/min

Turret
Number of Tools: 12-Station BOT
OD vs ID Tools: Any Combination (will vary with turret)
Boring Bar Rear Clearance (from back of turret ): 4.00 in

General
Coolant Capacity: 55 gal 208 L

Air Requirements
Air Required†: 4 scfm @ 100 psi 113.0 L/min @ 6.9 bar
Inline Air Hose: 3/8 in
Coupler (Air): 3/8 in
Air Pressure Min: 80 psi 5.5 bar

Electrical Specification
Spindle Speed: 3400 rpm
Drive System: Direct Speed Belt Drive
Spindle Power: 30.0 hp 22.4 kW
Input AC Voltage (3 Phase) - Low: 220 VAC
Full Load Amps (3 Phase) - Low: 70 A
Input AC Voltage (3 Phase) - High*: 440 VAC
Full Load Amps (3 Phase) - High*: 35 A

Dimensions - Shipping
Domestic Pallet: 143.0 in x 90.0 in x 92.0 in
Export Pallet: 143.0 in x 90.0 in x 92.0 in
Weight: 9000 lb
Domestic Pallet w/Conveyor: 143 in x 90 in x 92 in
Export Pallet w/Conveyor: 143 in x 90 in x 92 in
Weight w/Conveyor: 10,000 lb
