NEW MAGNUM MCC2
Overview

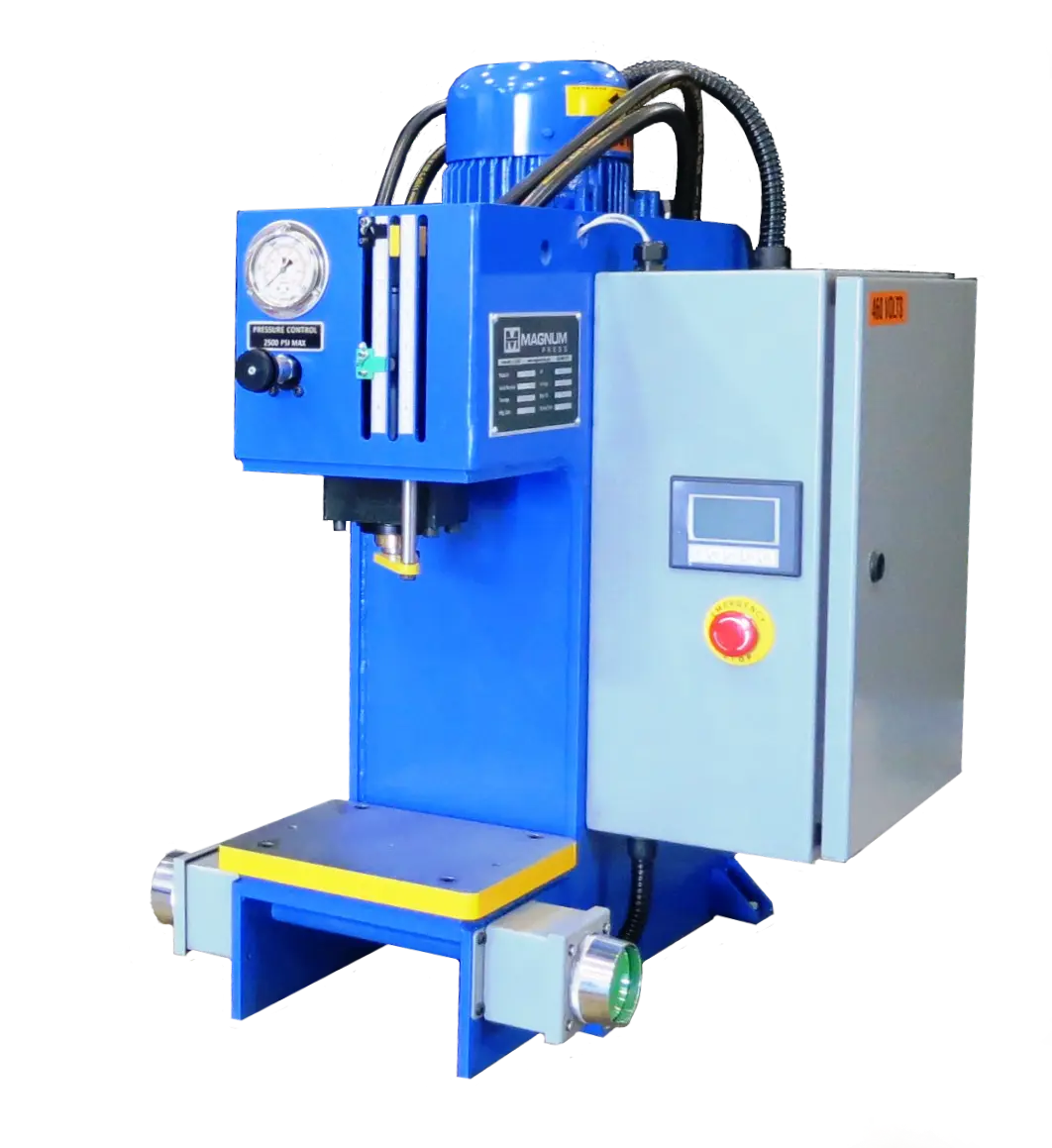

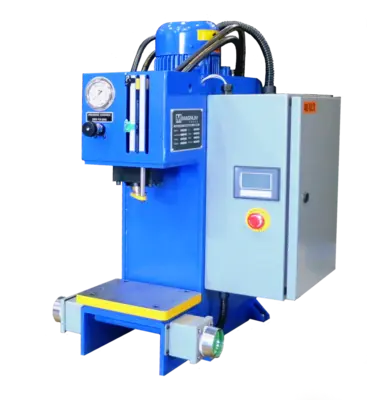

2 Ton Magnum, MCC Series, Compact Bench Model MCC2, 5" stroke, 10" Daylight.
18 Month Warranty (warrants products to be free from defects in materials and workmanship).
Made in the USA
Specs
Rated Tonnage: 2.0
Minimum Tonnage: 0.4
Stroke (in, adjustable): 5
Daylight (in): 10
Shut Height (in): 5
Throat (in): 5
Bolster Dimensions (in): 10 Left-Right x 9.5 Front-Back
Female Threaded Rod End: ¾”-16 Thread
HP (1800 rpm): 2
Input Voltage (specify): 208-230-460/3/60
STANDARD Inches Per Min (IPM):
RAPID: 489
WORK: 218
RETURN: 392
CPM @ 1” Stroke (.13" WORK str.): 94
CPM @ 4" Stroke (.13" WORK str.): 41
Reservoir Capacity (gal): 7
Approx Foot Print (in) W x D x High: 26 X 36 X 36
Approx Weight (lbs): 565
Equipped With
INCLUDED FEATURES
• Structural Designs undergo rigorous analysis through Finite Element Analysis design testing
• CAT 4 Safety Relay 2-Hand No-Tie-Down Start
• Adjustable tonnage through full range of stroke
• PLC with HMI based controls
• Pressure Reversal Mode
• Removable Power Unit
• Adjustable Stroke
• NEMA enclosures
• Single Point Power Connection
• Removable Bolster
• True Two-Speed RAM
• Pressure adjustment at rear of press
• Standard Hydraulic Rod Lock
• Counterbalance prevents RAM from being extended by weight of tooling without power
• Manual Starter with Lockout and Overload Protection
• Electro-Hydraulic Decompression with FAST ACTING 3 stage decompression offering resistance to damaging decompression pressure spikes that is far superior to hydraulic or mechanical decompression
• Flat Face O-Ring Hydraulic Connections providing the most leak resistant hydraulic system
AVAILABLE OPTIONS
• FS-01 Bench with adjustable leveling swivels
• Banner Zero Force Opto Touch Palm Buttons with Finger Guards
• LCG1 Light Curtain Guarding: Full perimeter guarding. Front mounted light curtain guarding includes emitter, detector, mounting hardware and installation. Fixed guarding on both sides using wire mesh.
• MCC2RE RAM SAFE Coupler RE Stud. Option reduces daylight by 0.94”.
• Tooling Quick Change Die Coupler Ring
• SRDC-1.0 Split Ring Die Coupler
• QCDC-1.0 Sliding Shoe Quick Change Die Coupler
• Standard Bolster comes plain. Magnum can provide custom machining.
