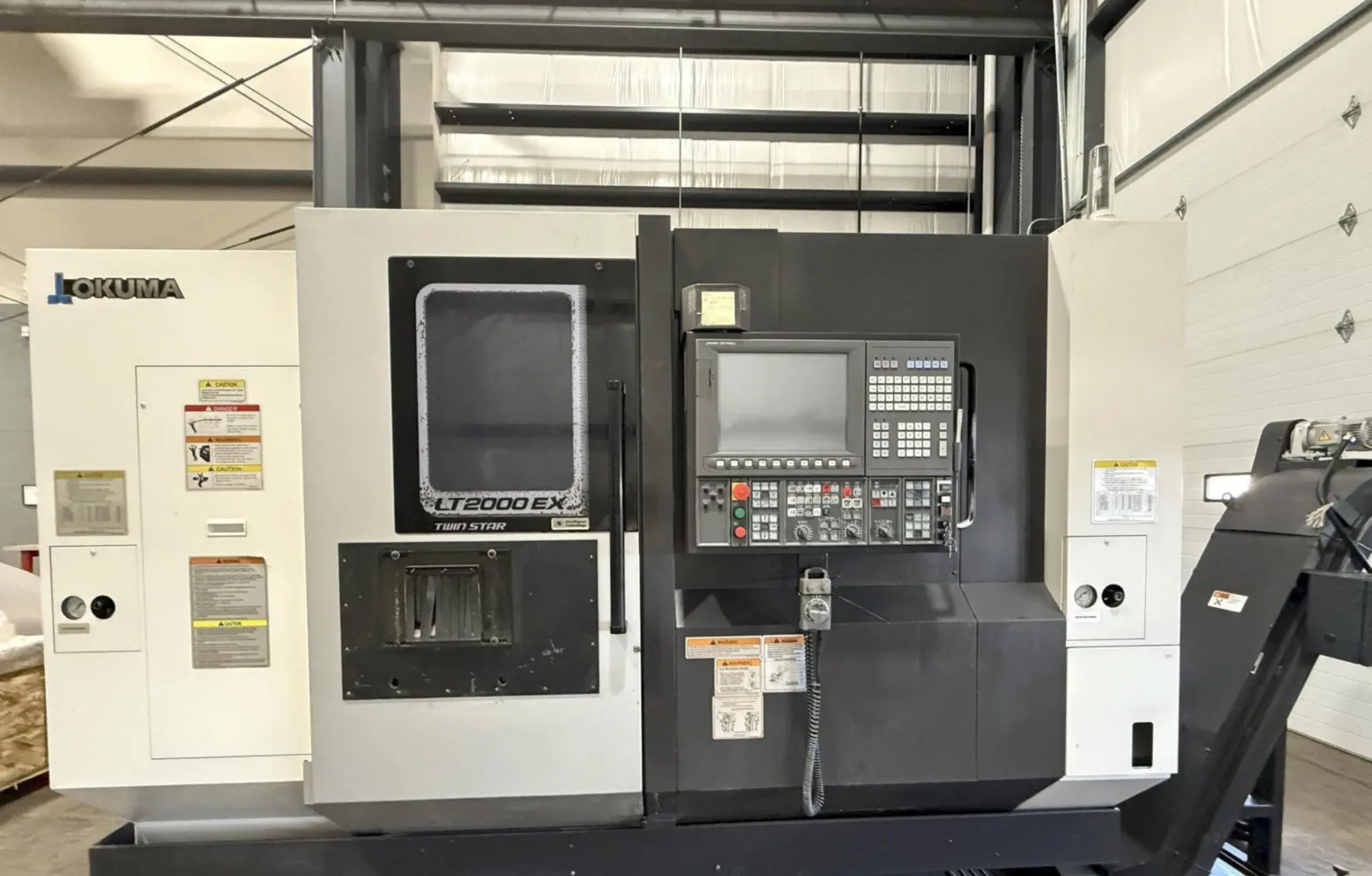

USED 2019 OKUMA LT2000 EX
Overview
Used 5-Axis Lathe with Okuma OSP-P300LA CNC. Features twin spindles/twin turrets, tool presetter, synchronized tapping, live tooling, chip conveyor, and coolant tank. Swing 15.75 in, spindle speed 6000 rpm, weight 19800 lb.
Specs
# Axis 6
Swing 15.75 in 400.05 mm
Turning Diameter 8.28 in 210.31 mm
Center Distance 38.58 in 979.93 mm
Chuck Size 8 in 203.20 mm
Bar Capacity 2.04 in 51.82 mm
X Axis Travel 8.07 in 204.98 mm
X2 Axis Travel 8.07 in 204.98 mm
Z Axis Travel 27.56 in 700.02 mm
B Axis Travel (Sub Spindle) 28.74 in 730.00 mm
C Axis Index 0.001°
Rapid Traverse (X/Y/Z) 1181/591/1575 ipm
Spindle Nose A2-6
Spindle Speed 6,000 rpm
Main Motor 15 hp
Live Tooling
Live Tooling Speed 6,000 rpm
Live Tooling Motor 7.5 hp
Sub Spindle
Sub Spindle Chuck 6 in 152.40 mm
Sub Spindle Nose A2-6
Sub Spindle Speed 6,000 rpm
Sub Spindle Motor (HP) 15 hp
Turret Capacity (Upper/Lower) 16 Stations / 16 Stations
Machine Dimensions 135" x 98" x 94"
Machine Weight 19800 lb 8,981.12 kg
Equipped With
- Okuma OSP-P300LA CNC Control
- Twin Spindles/Twin Turrets
- Tool Presetter
- Synchronized Tapping
- Live Tooling (Both Turrets)
- Misc Static Holders
- Transformer
- Chip Conveyor
- Coolant Tank & Pumps
