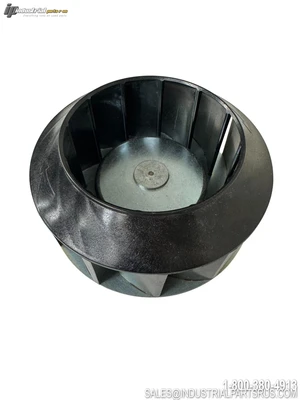

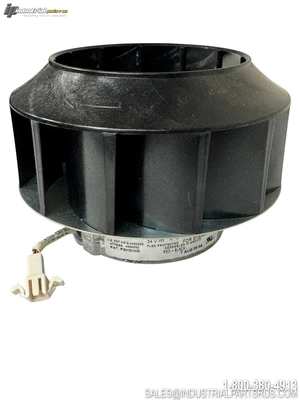

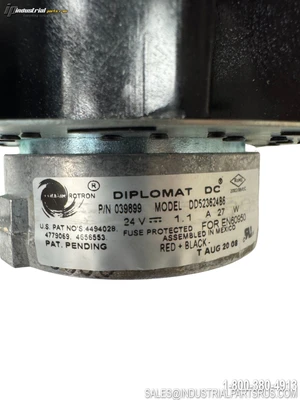

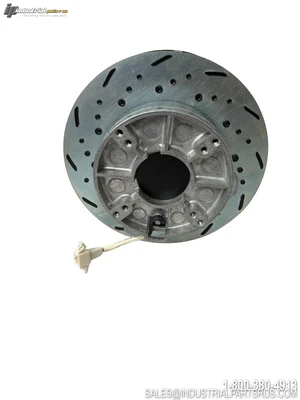

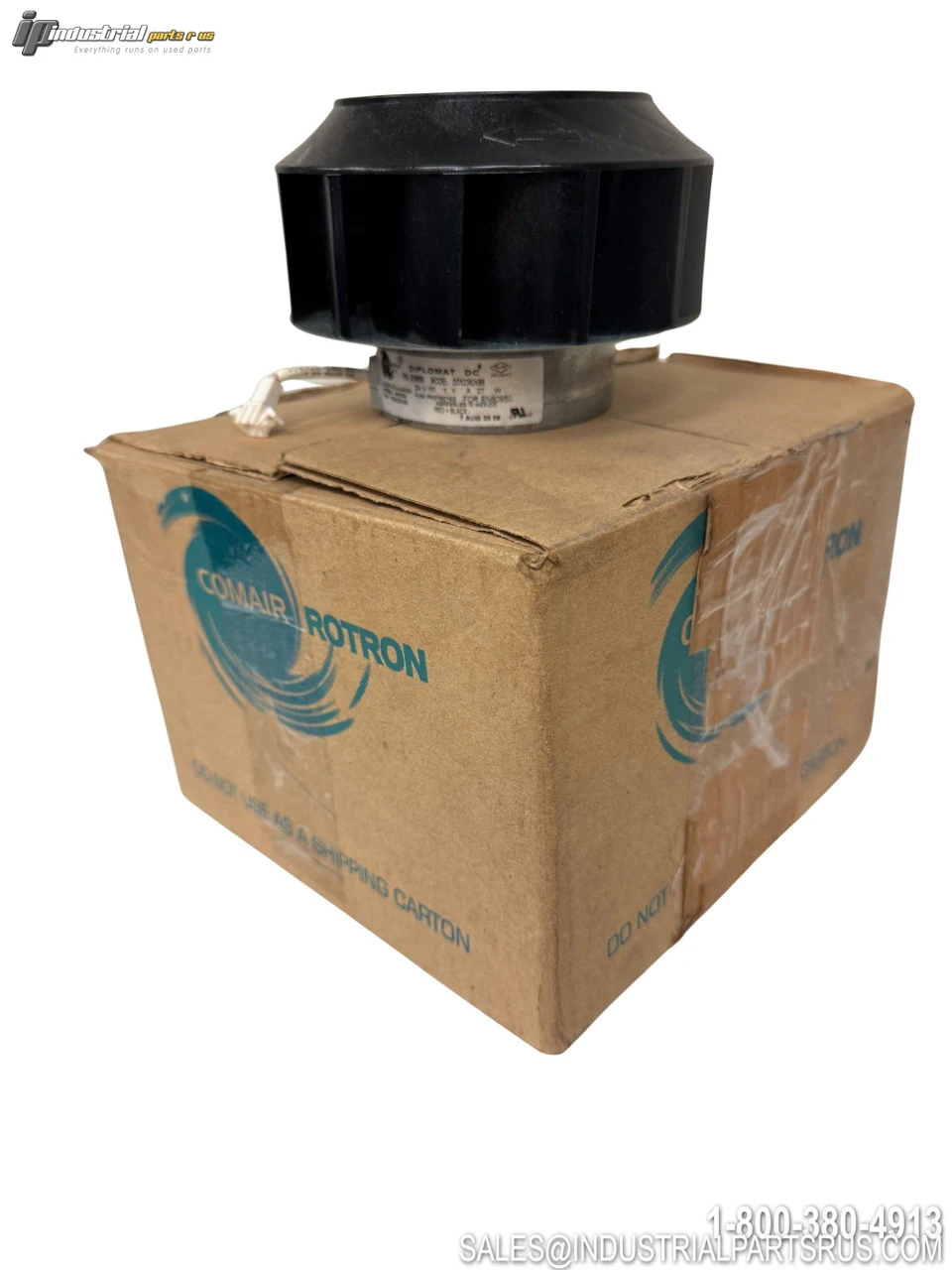

NEW COMAIR ROTRON DIPLOMAT DD523524B6

The Comair Rotron Diplomat DD523524B6 is a brushless, electronically commutated DC motorized impeller belonging to the Diplomat product family. Featuring a 133mm (5.25") diameter impeller at a 24VDC nominal operating voltage, this unit is designed for demanding thermal management applications in electronics, telecommunications, industrial, medical, and military equipment. The Diplomat series uses brushless EC motor technology for excellent speed control and minimal electrical noise, with ball bearings for extended service life.
Specification
Value
Brand
Comair Rotron Diplomat
Model / Part Number
DD523524B6
Product Family
Diplomat Series
Product Type
DC Motorized Impeller (Centrifugal Blower)
Nominal Voltage
24 VDC
Current Type
DC
Motor Type
Brushless EC (Electronically Commutated)
Impeller Diameter
133mm (5.25 in)
Depth
91mm (3.58 in)
Bearing Type
Ball Bearing
Wire Configuration
6-Wire Lead (Power + Tach + Speed Control)
Approximate Airflow
~175 CFM (4.90 m³/min) free delivery
Motor Protection
Locked Rotor Protection, Polarity Protection, Auto Restart
Application
Electronics Cooling, Telecom, Industrial, Medical, Military
Approvals
UL, CE (Diplomat Series Standard)
We warranty all items for 30 days from date of purchase.
