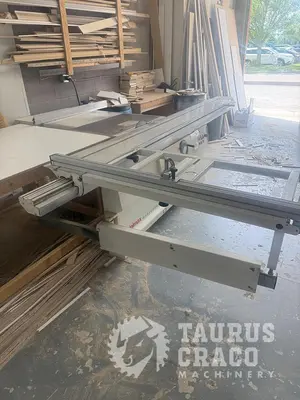

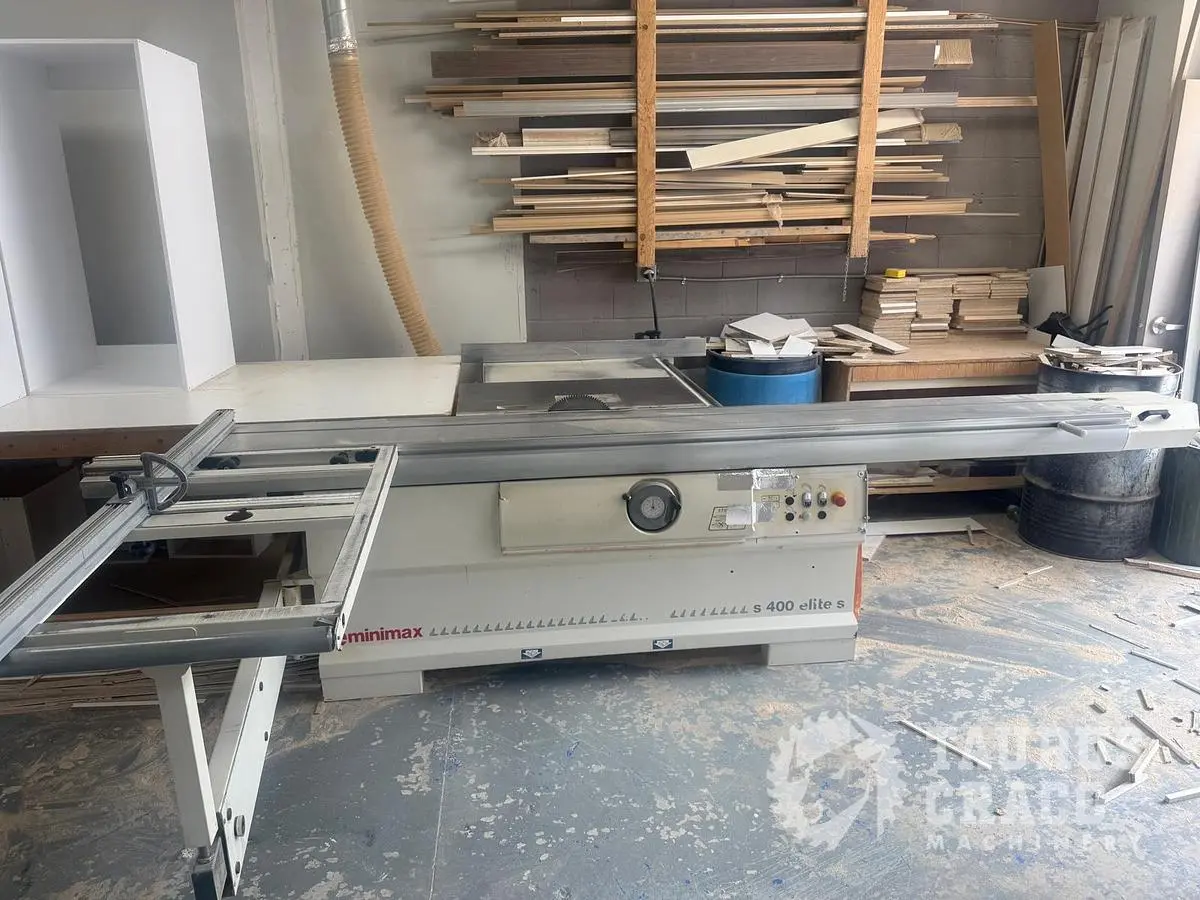

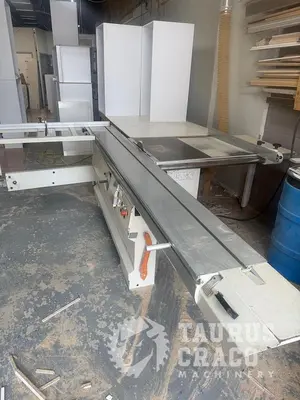

USED 2011 SCM MINIMAX S400 ELITE S SLIDING TABLE SAW

Manufacturer: SCM Group
Brand: Minimax
Model: S 400 Elite S
Year of Manufacture: 2011
Condition: Used – Good Operating Condition
Machine Type: Sliding Table Panel Saw
The SCM Minimax S 400 Elite S is a professional European sliding table saw designed for precision panel processing, cabinet production, furniture manufacturing, and architectural millwork applications.

Built in Italy by SCM, the S 400 Elite S combines a heavy-duty cast iron saw unit, precision aluminum sliding carriage, scoring blade system, and large-capacity cutting capability for accurate processing of melamine, plywood, MDF, particleboard, and solid wood materials.

This machine is equipped with a full sliding table, crosscut fence, scoring blade system, and support frame, making it an excellent solution for shops requiring accurate panel sizing and squaring performance.
Professional sliding table panel saw
Heavy-duty cast iron saw unit
Precision aluminum sliding carriage
Independent scoring blade system
Full crosscut fence and support frame
Large panel processing capacity
Tilting main saw blade
Industrial European construction
Designed for cabinet and furniture production
Maximum Blade Diameter: 400 mm (15.75")
Minimum Blade Diameter: 250 mm (9.84")
Blade Bore Diameter: 30 mm
Diameter: 120 mm (4.72")
Arbor Diameter: 20 mm
20 Tooth Configuration
Maximum Blade Projection at 90°: 136 mm
Maximum Blade Projection at 45°: 97 mm
Sliding Stroke: 3200 mm (126")
Precision anodized aluminum carriage
Large-format panel processing capability
Rip Fence Capacity: 1270 mm (50")
Main Saw Motor: 7 HP (5.0 kW)
The machine features a tilting main blade and independent scoring blade configuration for clean cutting of:
Melamine panels
MDF
Particleboard
Veneered panels
Plywood
Solid wood
The scoring blade minimizes chipping and breakout when processing laminated and prefinished materials.
Voltage: 600V
Phase: 3 Phase
Frequency: 60 Hz
Full Load Current: 10 Amps
Short Circuit Rating: 5 kA
Control Voltage: 24V
Used – Good Operating Condition
The machine remains in good operating condition and is suitable for continued production use. The sliding table, scoring saw, and large panel-cutting capacity make it an excellent machine for precision woodworking applications.
The SCM Minimax S 400 Elite S is a proven professional sliding table saw offering exceptional panel-cutting accuracy, smooth carriage operation, and robust industrial construction. Featuring a 400 mm blade capacity, 3200 mm sliding stroke, 1270 mm rip capacity, and independent scoring blade system, this machine remains an excellent choice for cabinetmakers, furniture manufacturers, and millwork shops seeking dependable European-built performance.
