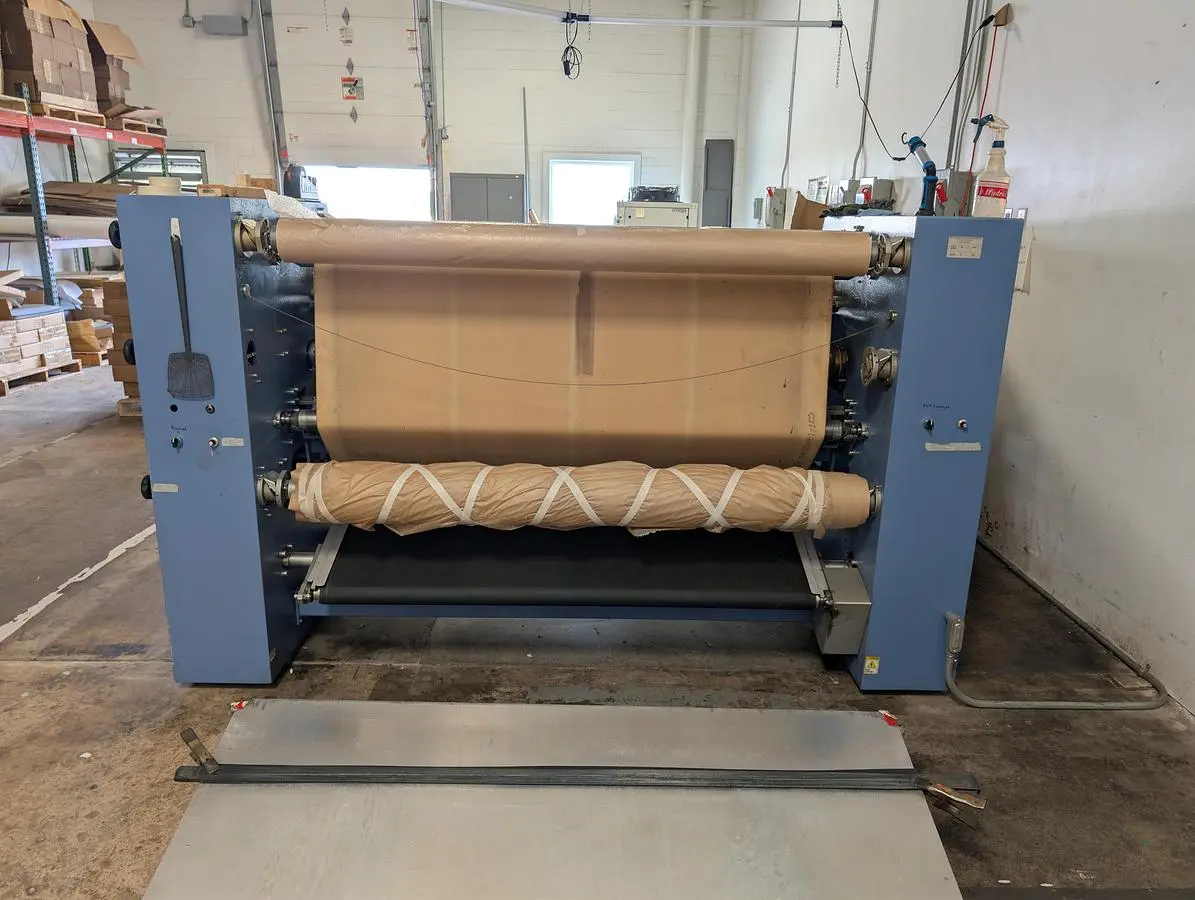

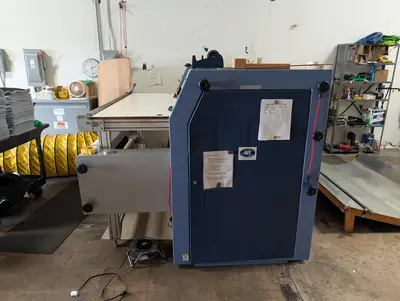

USED 2013 AIT 7460 IJO SPORT

AIT Heat Press:
Model: 7400 IJO
Serial #: 2821213
The new oil heated 7400 IJO SPORT series rotary heat press has been specifically designed to meet the increasing demand for cut part digital printing. This method is widely used to print sport and team apparel. The new oil heating system guarantees a uniform heat distribution across the width of the drum with a minimum of energy consumption. This system uses 50% less energy than electrically heated presses. The 13.8” (35 cm) diameter drum is suitable in production speed for digital printing.
The 7400 IJO Sport series has 3 Different options of operation:
The transfer paper is placed design side up on the table and feeds continuously into the machine. The pre-cut parts rte placed on the design and registered with maximum ease. The spent print paper and the printed parts exit under the feed table.
The transfer paper is fed continuously into the machine and cut fabric parts are placed on to the design areas, In this case the used transfer paper is re-rolled continuously under the feed table and the printed parts are released on to the slide tray.
Continuous printing roll-to-roll on both print paper and fabric. The top feeding hot oil calendar system will eliminate seconds caused from fabric shrinking or paper movement and increase production. saving money and energy costs. High production, quality printing and our service after the sale give you the best of reasons to invest in AIT for all of your needs in digital sublimation printing
Oil-heated drum. Self contained with digital heat control
Digital variable speed control
Automatic belt tracking
Printing widths of 60” (1.5m) or 72” (1.8m)
3 unwind stations with adjustable tension
2 rewind stations with separately controlled speed and tension
Six light weight aluminum lift out bars “easy-grip”, 3-inch cores
Self locking safety chucks for all unwind bars
3.5 LFM (1.3 LMM) production speed at 40 second dwell time
13.8” (35cm) diameter heated drum
“S” wrap bars for fabric tensioning
Hand safety protection at entrance
E Stops at all corners
Lanyard controlled reversing system for safety & ease of feeding
Dual Safety Reversing Systems
Low maintenance, brushless drive motor
All electronic controls. No air required
Automatic cool down at shut down
7460 Sport Belt Size170cm/67"
Working Width:160cm/63"
Power Installed: @220/3PH67
Amps Average Consumption: 30 Amps
Net Weight: 1450 kg / 3196 lbs
Dimensions: 265 x 175 x 154 cm / 104" x 69" x 61"

Price: $32,500
