USED 2008 DUPLO 5000

Signature Bookletmaking application: Sheet Size Min. 4.72" x 6.7" Max. 14" x 20"
Paper Capacity: Up to 25 sheets
General: Speed: Up to 5,000 sets per hour
Detections: Wire draw detection

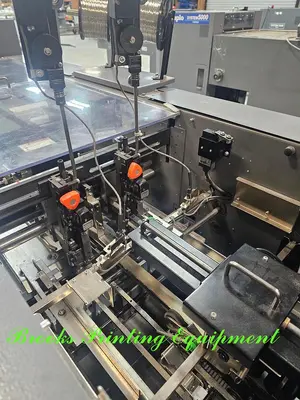

Number of stitching heads: 2 Hohner
Stitch Positions: Saddle, corner, side, none (fold only)
Programmable Memory Settings: 12
Automatic Functions: Stitcher heads, back jogger, side guides, stitch stopper, fold stopper, fold-back stopper positions, small booklet adjustments, fold roller gap, conveyance roller position, center reference, disengage the operator side stitching head when corner stitching
Electrical: 120V 60Hz 6.5A
Dimensions: 64” x 28” x 40”
DBM-500T Specifications: Trimming Mechanism: Upper and lower shearing action
Booklet Sizes: Min. 4.72" x 3.35" Max. 14" to 10"
Trimmed Booklet Sizes (Min./ Max): 4.72” x 3” to 14” x 10”
Trim Margin: Up to 1"
Speed: Up to 5,000 sets per hour
Electrical: 120V 60Hz 10A
Dimensions: 23” x 27.5” x 43

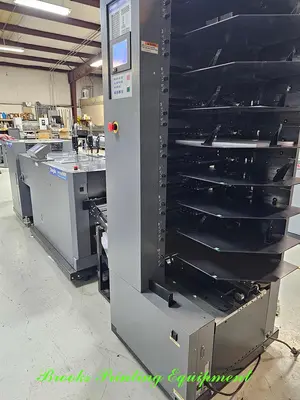

Collator DC-10/60 Specifications: Paper Size: Min. 4.72” x 5.52” to Max. 14” x 20”
Paper Weight: 11 lb. to 12-pt. cover
Bin Capacity: 2.5"
Detections: Double-feed, misfeed, paper jam, paper transport jam, bin empty
Speeds: Bookletmaking - up to 5,000 sets per hour Collating - up to 10,000 sets per hour
Feed System: Vacuum belt with air sheet separation
Electrical: 120V 60Hz 9.5A
Dimensions: 25” x 30” x 78” 49” x 30” x 78” when connected to the lift unit
