Doosan Lynx 2100LSYA – 2022
Overview

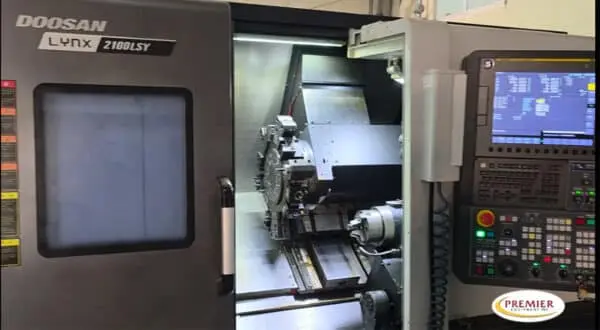

Doosan Lynx 2100LSYA Multi-Axis CNC Turning Center
Specs
Capacity
Max Turning Diameter11.8”
Max Turning Length20.1”
Bar Working Diameter2.0”
Travel Distance
X-Axis Travel8.1”
Z-Axis Travel22.0”
Y-Axis Travel4.1” (+/- 2.1”)
Main Spindle
Spindle Speed6000 RPM
Main Spindle Motor Power20 / 20 / 15 HP (25% / 15 min / Cont.)
Max Spindle Torque for Turning93.7 lbf-ft
Spindle Through Hole Diameter2.4”
Sub Spindle
Max Spindle Speed6000 RPM
Sub Spindle Motor7.4 / 5 HP (30 min / cont.)
Spindle Through Hole Diameter1.7”
Turret
No. of Tool Stations12
OD Tool Size.8”
Max Boring Bar Size1.3” / .08”
Machine Dimensions
Machine Size113” x 67” x 76”
Equipped With
Doosan Fanuc I Series CNC Control
Tool Presetter
Milling
Y-Axis
Sub Spindle
Coolant System
