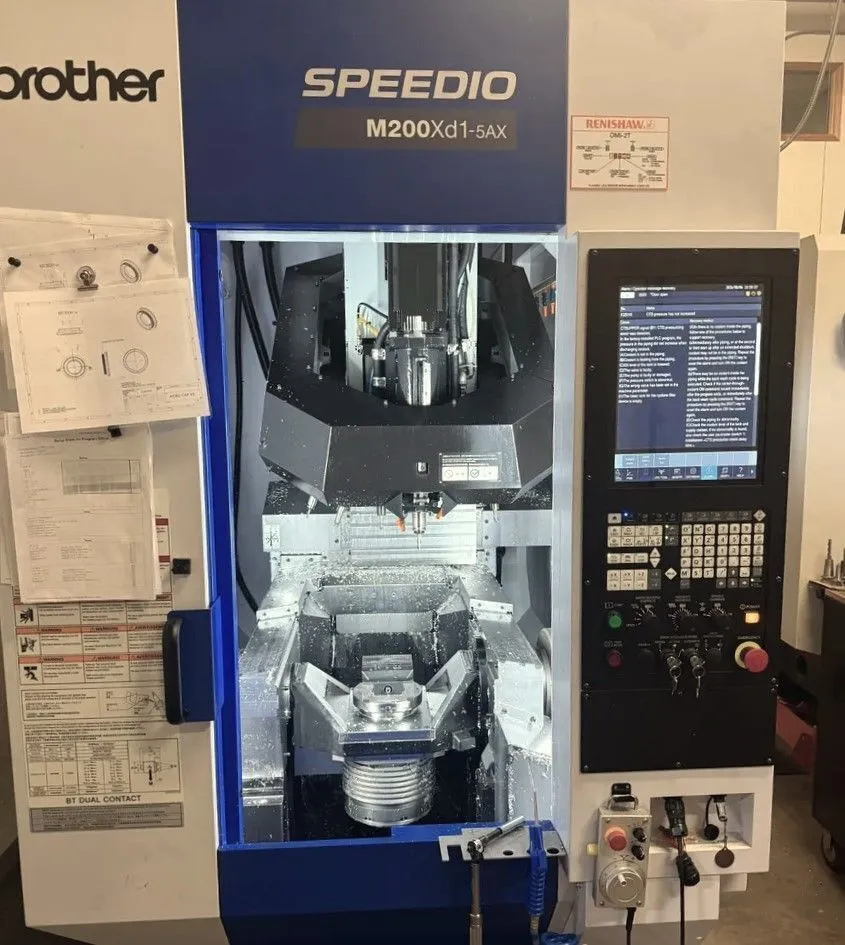

USED 2025 BROTHER Speedio M200XD1
Overview
Brother Speedio M200XD1 5 Axis Vertical Machining Center (2025) is a compact, high-speed multi-tasking CNC machining center that combines milling and turning capabilities into a single machine. It features a small footprint (requiring a floor space of about 50.4" x 105"), fast tool changes, and process integration designed to reduce handling time and multi-face machining errors for small parts. This machine only has 256 hours
Specs
Brother Speedio M200XD1 5 Axis Vertical Machining Center (2025)
Travel & Axis Specifications
X-Axis Travel: 7.9 inches
Y-Axis Travel: 17.3 inches
Z-Axis Travel: 12.0 inches
A-Axis (Tilt): -30° to +120°
C-Axis (Rotation): 360°
Work Area Size: Φ5.5 inches
Speeds & Feedrates
Milling Spindle Speed: 10,000 RPM (Standard) or 16,000 RPM (Optional)
Tapping Spindle Speed: 6,000 RPM
Turning Spindle Speed: 2,000 RPM
Rapid Traverse Rate (X, Y, Z): 1,969 inches per minute (IPM)
Cutting Feedrate (X, Y, Z): 0.04 to 1,181 inches per minute (IPM)
Tool Changer Capacity & Tool Dimensions
Tool Magazine Capacity: 22 or 28 tools
Tool Shank Type: MAS-BT30
Maximum Tool Length: 9.8 inches
Maximum Tool Diameter: 3.1 inches
Maximum Tool Weight: 6.6 lbsTool-to-Tool Time: 0.8 seconds
Chip-to-Chip Time: 1.4 seconds
Weight & Dimensions
Maximum Table Load Capacity: 88.2 lbs
Maximum Turning Side Load Capacity: 41.9 lbs
Required Floor Space: 50.4 x 105.0 inches
This machine has only 256 hours!
Equipped With
Brother CNC-D00 Control with Built-In PLC
16,000 RPM BBT CTSI Spindle (Coolant Through Spindle Interface - No Pump)
9.9/6.6 HP Main Spindle Motor - IPM Motor Type
BIG PLUS BT-30 Taper, 28 Tool High-Speed ATC
Travel: 7.9¨ x 17.3¨ x 12.0¨
2,000 RPM Turning Spindle with 5.5¨ Diameter Table
Air Assisted Tool Wash
Automatic Grease Lubrication System
150L Coolant Tank with Chip Shower
Simultaneous 5-axis Control
Tool Center Point Control (look ahead 1,000 blocks)
Memory Expansion (3Gbytes)
Submicron Command
Feature Coordinates Settings
Double A-axis Clamp Complete Covers with Ceiling Cover and Safety Door Interlock
M200Xd1-5AX BBT 16K 28T CTSI
Manual Pulse Generator
Work Light Kit (2-Lights) w/Brackets
Spindle Override
1 NOP 1000 PSI Brother CTS Pump with Bag Filter kit
1 Renishaw OMP400 Spindle Probe for Brother NEW
1 Blum Z-Nano w/ Chip Protection for M200
1 AxiSet Checkup Kit Brother T-T AU w/ACS-1
1 Yamazen Installation Included
S700 Work Light Kit (1 Light)
S700 Renishaw Probe System
Save $50,000.00 Off New
