NATIONAL EQUIPMENT 12", 16" & 24" SS Coating Pans

NATIONAL EQUIPMENT 12", 16" & 24" COATING PANS

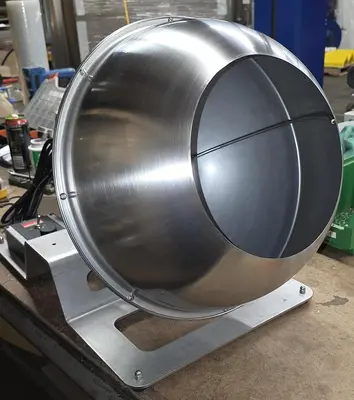

National Equipment 12" diameter stainless steel coating pan
- 10" deep bowl
- 7-1/2" opening
- Variable speed drive with controller (0-34 RPM)
- 110 volts
- Batch size: approximately 8 lbs of chocolate coated peanuts

National Equipment 16" diameter stainless steel coating pan
- 12" deep bowl
- 9" opening
- Variable speed drive with controller (0-31 RPM)
- 110 volts
- Batch size: approximately 15 lbs of chocolate coated peanuts

National Equipment 24" diameter stainless steel coating pan
- 17" deep bowl
- 12-3/4" opening
- Variable speed drive with controller (0-31 RPM)
- 110 volts
- Batch size: approximately 35 lbs of chocolate coated peanuts

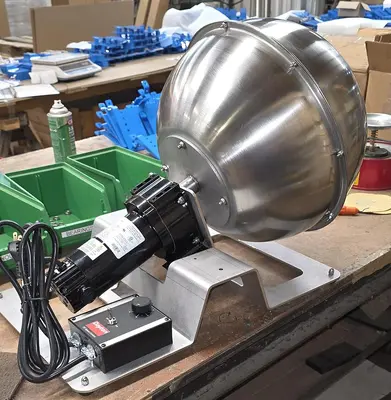

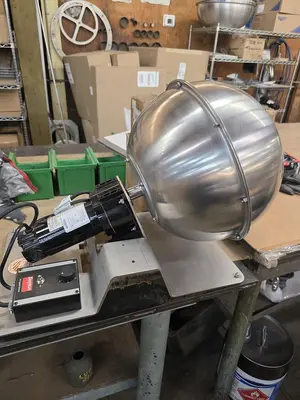

12" diameter pan with smooth bowl and motor with variable speed drive and controller:

12" diameter pan with round ribbed bowl and motor with variable speed drive and controller:

16" diameter pan with smooth bowl and motor with variable speed drive and controller:

16" diameter pan with round ribbed bowl and motor with variable speed drive and controller:

24" diameter pan with smooth bowl and motor with variable speed drive and controller:

24" diameter pan with round ribbed bowl and motor with variable speed drive and controller:

12" extra bowl without ribs with mounting flange.

12" extra bowl with round ribs and mounting flange.

16" extra bowl without ribs with mounting flange.

16" extra bowl with round ribs and mounting flange.

24" extra bowl without ribs with mounting flange.

24" extra bowl with round ribs and mounting flange.

Ambient blower.

Hot air blower (can be used as ambient blower as well) with 2 settings – 105 & 140 F.

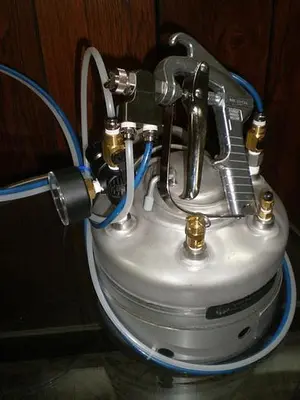

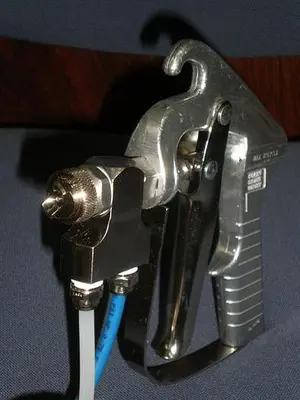

Hand spray system with 1 gallon stainless steel tank

220 volt transformer

Thousands of these pans are presently being used in labs and in production by confectionery, cannabis, edibles, gummies, gummy candy, pharmaceutical, food, nutraceutical and snack companies worldwide.
