NATIONAL EQUIPMENT 12", 16" & 24" SS Coating Pans

NATIONAL EQUIPMENT 12", 16" & 24" SS Coating Pans
New National Equipment Stainless Steel Coating Pans

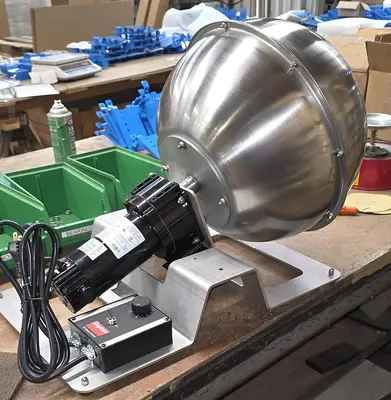

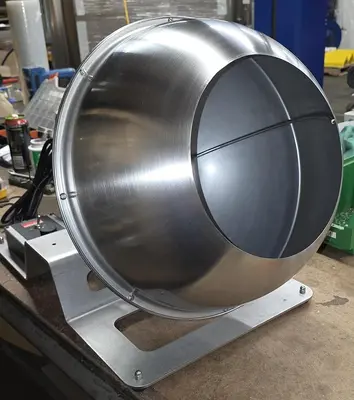

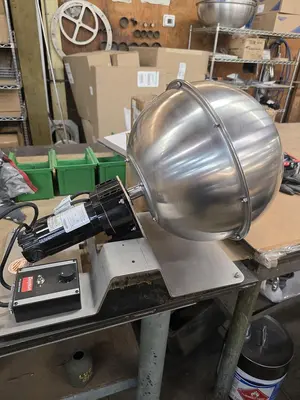

National Equipment 12" diameter stainless steel revolving pan
- 10" deep bowl
- 7-1/2" opening
- Variable speed drive with controller (0-34 RPM)
- 110 volts
- Batch size: approximately 8 lbs of chocolate coated peanuts

National Equipment 16" diameter stainless steel revolving pan
- 12" deep bowl
- 9" opening
- Variable speed drive with controller (0-31 RPM)
- 110 volts
- Batch size: approximately 15 lbs of chocolate coated peanuts

National Equipment 24" diameter stainless steel revolving pan
- 17" deep bowl
- 12-3/4" opening
- Variable speed drive with controller (0-31 RPM)
- 110 volts
- Batch size: approximately 35 lbs of chocolate coated peanuts

12" diameter pan with smooth bowl and motor with variable speed drive and controller: $1,795.00

12" diameter pan with round ribbed bowl and motor with variable speed drive and controller: $2,570.00

16" diameter pan with smooth bowl and motor with variable speed drive and controller: $2,195.00

16" diameter pan with round ribbed bowl and motor with variable speed drive and controller: $2,970.00

24" diameter pan with smooth bowl and motor with variable speed drive and controller: $3,250.00

24" diameter pan with round ribbed bowl and motor with variable speed drive and controller: $4,225.00

12" extra bowl without ribs with mounting flange: $625.00

12" extra bowl with round ribs and mounting flange: $1,400.00

16" extra bowl without ribs with mounting flange: $875.00

16" extra bowl with round ribs and mounting flange: $1,650.00

24" extra bowl without ribs with mounting flange: $1,650.00

24" extra bowl with round ribs and mounting flange: $2,725.00

Ambient blower: $575.00

Hot air blower can run at 90F or 115F @ 205 cfm: $725.00

Hand spray system with 1 gallon stainless steel tank: $3125.00

220 volt transformer: $295.00

Thousands of these pans are presently being used in labs and in production by confectionery, cannabis, edibles, gummies, gummy candy, pharmaceutical, food, nutraceutical and snack companies worldwide.
