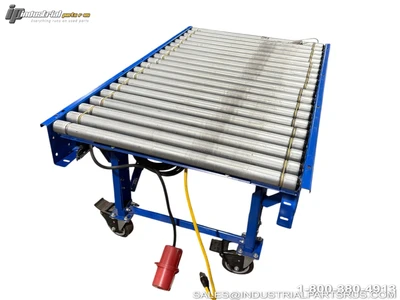

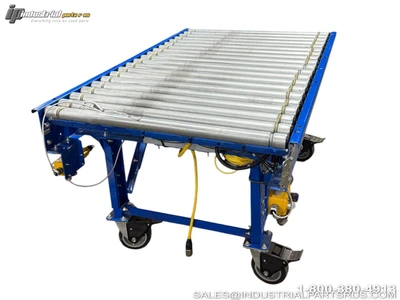

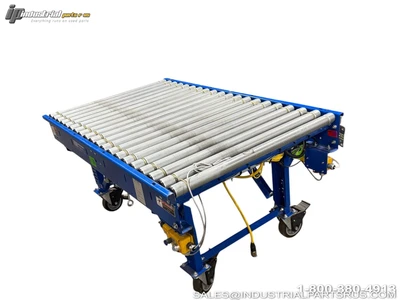

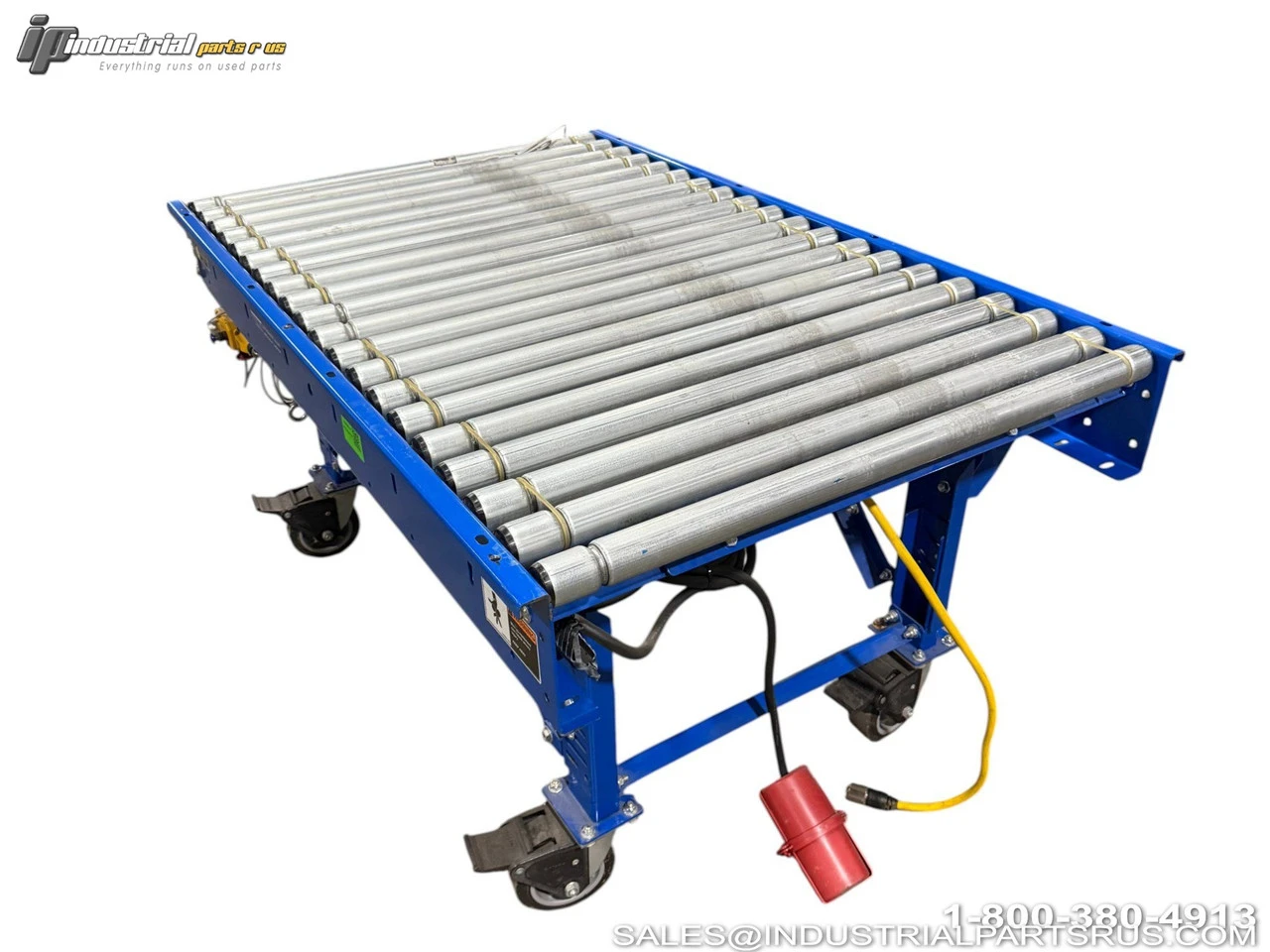

USED FMH CONVEYORS BC3660A-AMZ

The FMH Conveyors BC3660A-AMZ is a BestConnect rigid modular accumulation conveyor section measuring 36 inches wide by 60 inches long. It is part of FMH's BestConnect system — a modular, powered roller conveyor platform designed for rapid deployment, reconfiguration, and zero-pressure package accumulation in warehouse, distribution, and truck loading/unloading operations. The accumulation function uses photo eye sensors and zones of DC-powered 1.9" rollers to control package flow, stopping each zone's rollers when a package is detected downstream, and releasing only when the next zone is clear.
Specification
Value
Brand
FMH Conveyors
Model / Part Number
BC3660A-AMZ
Product Line
BestConnect Rigid Modular Conveyor
Section Type
Accumulation (Zero-Pressure)
Width (Between Frames)
36 inches
Length
60 inches
Roller Diameter
1.9 inches
Roller / Axle Centers
3 inches
Input Voltage
120VAC, 30A
Motor Voltage (DC)
90VDC
Roller Speed
Variable, 0–120 FPM
Caster Size
6" x 2" heavy duty with locking brakes
Electrical Connection
Twist-and-lock, no field wiring required
Accumulation Control
Photo eye sensors, zoned zero-pressure
Status Indicators
Illuminated On/Off buttons (green/red zone lights)
Frame Material
Steel
Conveyor Height
Adjustable
Available Standard Widths
24, 30, 36, 48 inches
Compatible Systems
BestConnect, NestaFlex (w/ bracket kit), BestFlex (w/ bracket kit)
Manufacturer HQ
Jonesboro, AR 72401
We warranty all items for 30 days from date of purchase.
