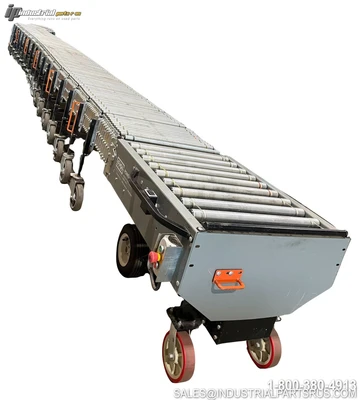

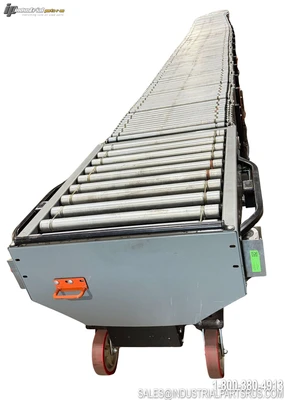

USED FMH 62' X 28"

The FMH PowerTrax is a powered tractor drive unit designed to move expandable flexible conveyors in and out of trailers and trucks, eliminating manual effort during loading and unloading operations. It features forward and reverse controls, a variable speed drive, and is built on an all-bolted 10-gauge steel chassis with pneumatic wheels for positive traction over dock levelers. The PowerTrax is compatible with BestFlex gravity or powered roller conveyor systems and adds 48 inches to the overall conveyor length when attached.
Specification
Value
Brand
FMH Conveyors
Model / Part Number
Powertrax
Product Type
Power Assist Conveyor Tractor Drive
Input Voltage
110V AC or 240V AC (two models available)
Motor Type
Fractional DC motors with serviceable brushes (120 VAC drive)
Speed Control
Variable speed, 0 to 120 ft/min (powered roller option)
Chassis Construction
All-bolted 10-gauge steel
Conveyor Length Added
48 in (1,219 mm)
Height Adjustment Range
27 in to 37 in (standard)
Height Adjustment Increment
1 in (25 mm)
Available Widths
24 in and 30 in (custom widths available)
Rear Wheels
12 in x 4 in pneumatic slick tires
Front Wheels
8 in swivel casters
Maximum Safe Torque
250.0 in/lbs
Bed Options
Gravity roller bed or Powered roller bed
Control Type
Momentary hold-to-run forward/reverse switch (deadman safety)
Optional Features
Electrical brake (for inclines), photo eye zero-pressure accumulation package stop
Compatible Systems
BestFlex 1.5 in and 1.9 in powered expandable conveyors; gravity skatewheel conveyors
Manufacturer (Legacy)
Best Diversified Products, Inc. (now FMH Conveyors LLC)
We warranty all items for 30 days from date of purchase.
