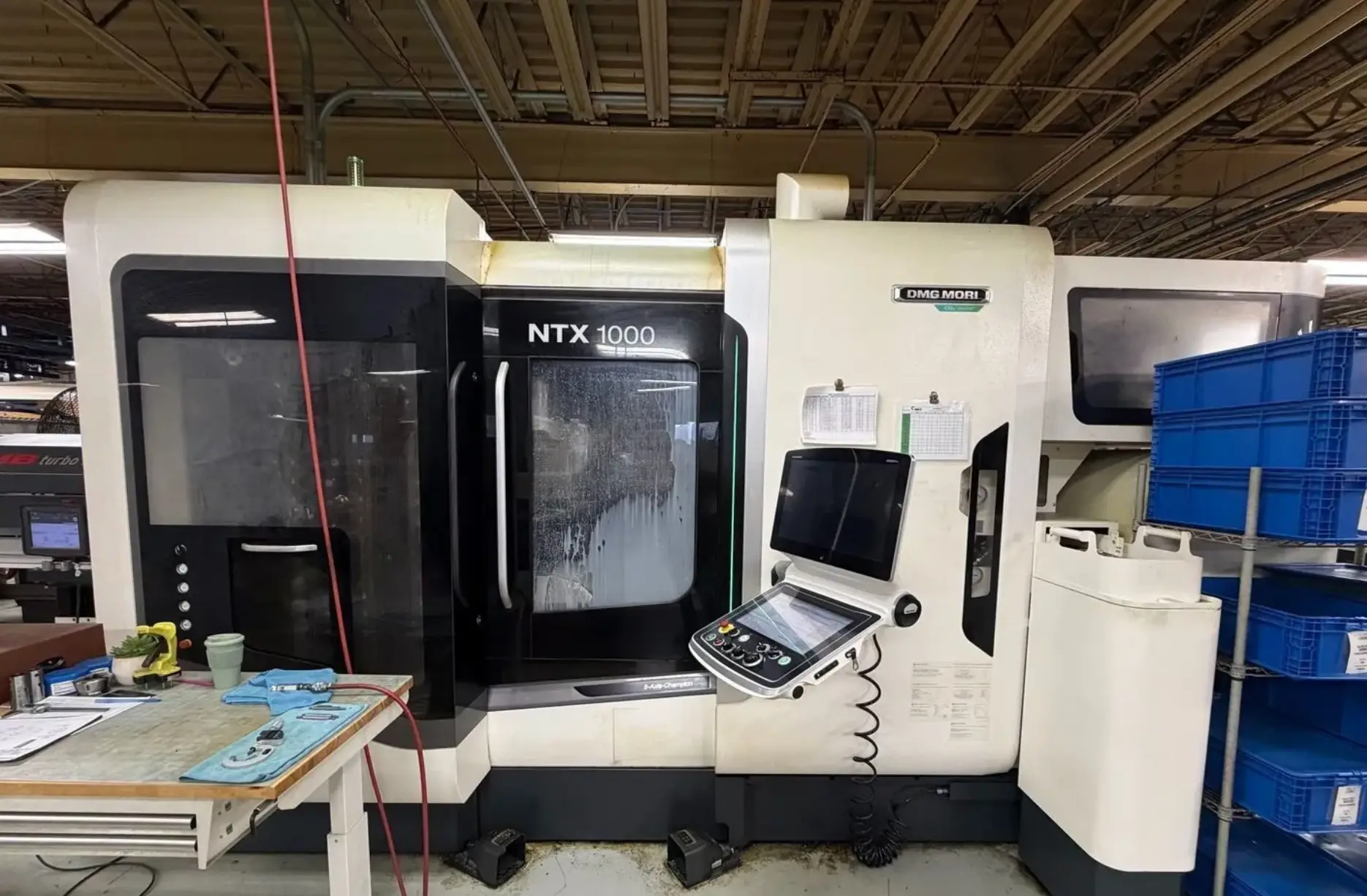

USED 2022 DMG MORI NTX 1000 SZM

Basic Machine NTX 1000 <2nd Generation>
Model for planning SZM
Electronic Manual Manuals provided on the website
NC SYSTEM Fanuc F31185
CELOS-ERGOline Touch CELOS-ERGOline Touch
Left spindle (Main spindle) Left Spindle) through-spindle hole dia. 73 mm, 5,000min-1 for FANUC)
Right spindle (Counter spindle) Standard spindle (Right Spindle) 11/7.5 kW, 6,000min-1 for FANUC)
Chuck for Left spindle (Main spindle) Left Spindle) KITAGAWA 8in. Hollow Chuck BROBA621 (SK-OP)
Cylinder Set for Left Spindle (Main Spindle) (Left Spindle) KITAGAWA Hollow Cylinder set for KITAGAWA Bin Hollow Chuck BR08A621/BR08-21B (Bar work capacity dia. 65 mm (2.55 inch)) (without chuck body)
Chuck for Right spindle (Counter spindle) Right Spindle) KITAGAWA 6in. Hollow Chuck BROGA521F
Cylinder Set for Right Spindle (Counter Spindle) Right Spindle) KITAGAWA Hollow Cylinder set for KITAGAWA 6in. Hollow Chuck BR06A521F/BR06-21D Bar work capacity dia. 52 mm (2.04 inch)) (without chuck body) (SK-OP)
Turn-mill Spindle Option High-speed Turn-mill Spindle, 20,000 min-1, 9/5.5 kW, 49.4 Nm (15%EDy21.9 Nm (C5/HSK-A50)
Grip Capto C5Tool
Tool Spindle Indexing Type Turn-mill Spindle full indexing specifications (STD)
Turret 2 10 Station Bolt-Tightened Turret, Miling Spindle (10,000 min-1, 1.5/1.2 kW, 4.8/2.3 Nm) (Turet 2) (for FANUC)
Magazine Tool storage capacity 76 tools (Capto C5)
Usable Coolant Type Usable Coolant Type: Water Soluble Coolant
Chip Related Chip conveyor (right discharge, hinge type drum fiter type)
Coolant Pump Option Interface for Super-high-pressure coolant system (7.0 MPa, Variable Pressure Steps, KNOLL/ Interlit, for 2-path system) (Coolant system for Through Spindle (Turn-mill Spindle) and Turet 2)
Coolant Chiller Without Coolant chiller
Coolant gun (SK-OP) Coolant gun (SK-OP)
Air blow for chuck (Left Spindle) Air blow for chuck (Left Spindle)
Air blow for chuck (Right Spindle) Air blow for chuck (Right Spindle)
Mist Collector Interface for Mist collector (duct only, dia. 200 mm) (SK-OP)
Machine Tool Preseter Manual in-machine tool presetter (removable type) (Left Spindle) (STD) In-machine workpiece measuring system radio signal
Machine Workpiece Measuring System Transmission type touch sensor (RENISHAW, RMP600) (SK-OP)
Signal lamp 4 colors (Red, yellow, green, blue) Signal lamp 4 colors (Red, yellow, green, blue)
Automation Support Workpiece unloader (Right Spindle, workpiece receiver type) + Workpiece unloading conveyor+ Workpiece stocker
Interface for Bar feeder Interface for Bar feeder (EtherNet/IP Interface) with berminal block for power supply, TYPES
Right Spindle workpiece ejector (SK-OP) Right Spindle workpiece ejector (SK-OP)
Interface for EtherNet/IP (SK-OP) Interface for EtherNet/IP (SK-OP)
Painting Standard Color (Calcite White)
3Multi dry filter Multi dry filter (SK-OP)
Power supply: Voltage of Customer Factory (V) Voltage of Customer Factory 220 V
Power supply: Frequency (Hz) Frequency 60 Hz
Setting Unit Setting Unit inch
Alternating speed Alternating speed
3D quickSET (FANUC) 3D quickSET (FANUC)
Tailstock for turret Tailstock for turret (FANUC)
Keyway broaching (FANUC) (SK-OP) Keyway broaching (FANUC) (SK-OP)
Addition of optional block skip (soft key type 2-9) Addition of optional block skip (soft key type 2-9)
X-Axis Direction X-Axis Direction JIS/ISO Standard
0Tconnector (SK-OP) toTconnector (SK-OP)
