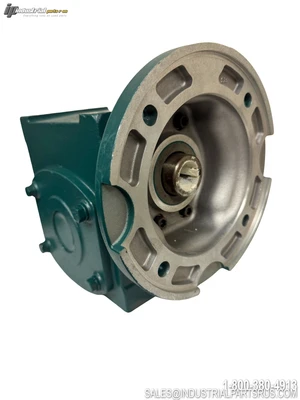

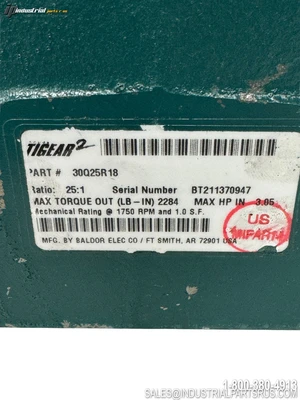

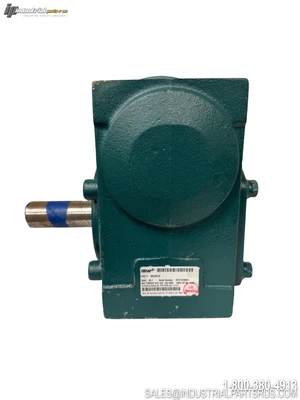

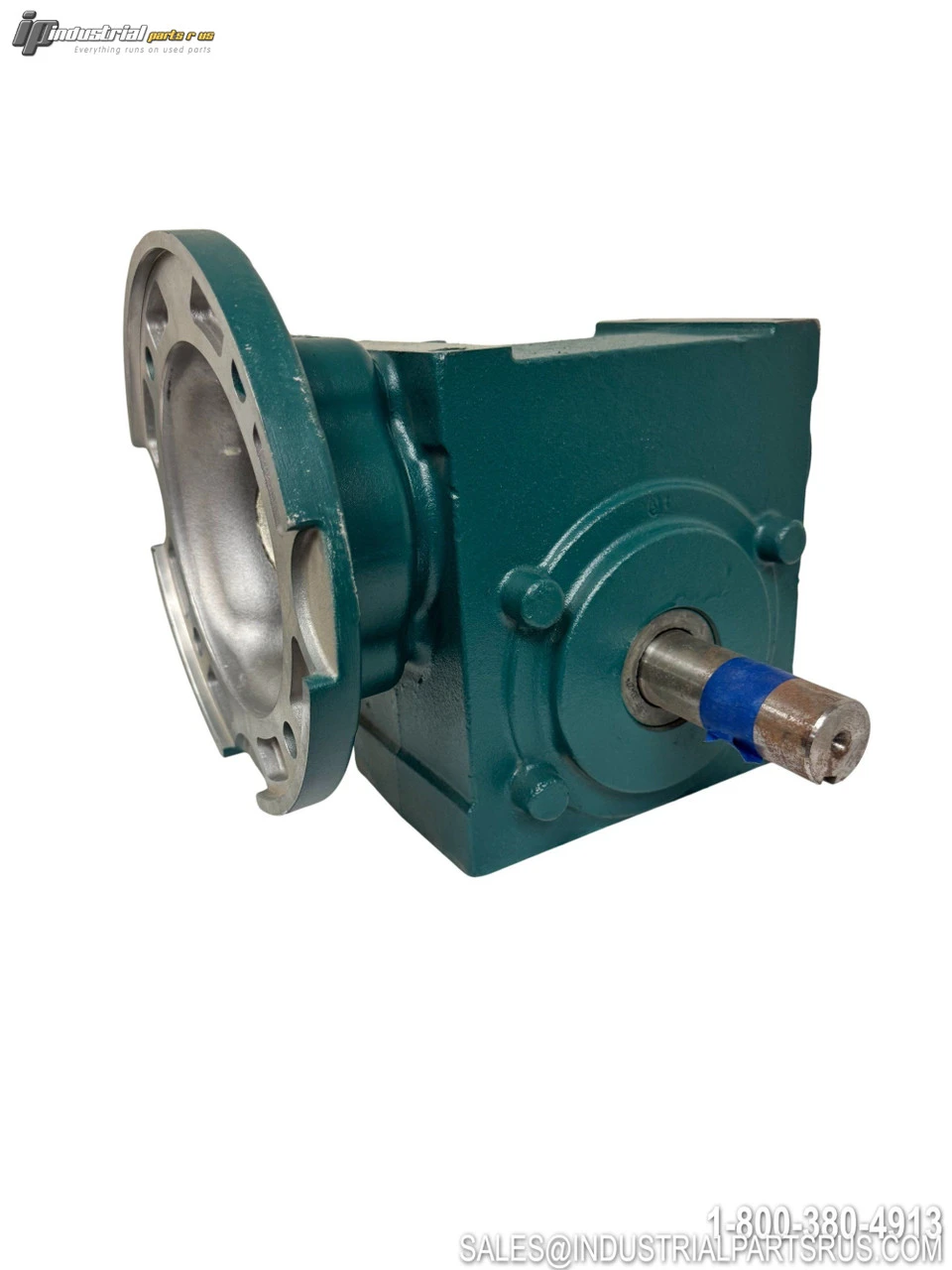

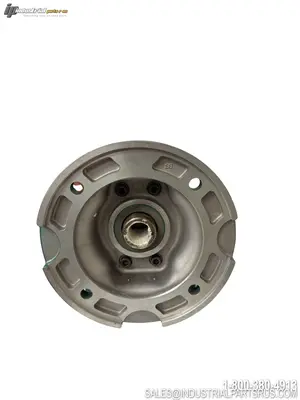

USED DODGE TIGEAR 30Q25AR18

The Dodge Tigear-2 30Q25AR18 is a Size 30 single-reduction right-angle worm gear speed reducer featuring a quill-style 3-piece coupled input configuration, 25:1 gear ratio, right-hand solid output shaft, and 180TC motor frame compatibility. It belongs to Dodge Industrial's Tigear-2 product line — engineered for demanding industrial applications with a sealed-for-life, ventless housing pre-filled with H1 food-grade synthetic lubricant that eliminates routine oil changes. The 3-piece coupled ("A") input style provides a durable drive package that facilitates easy motor removal and offers protection against shock loads and vibration.
Specification
Value
Brand
Dodge Tigear
Model / Part Number
30Q25AR18
Product Line
Tigear-2
Reducer Size
30
Gear Ratio
25:1
Input Style
Quill / 3-Piece Coupled (Adaptable)
Output Configuration
Right-Hand Solid Shaft Output
Motor Frame / Flange
180TC
Center Distance
3.00 in
Mechanical Input HP
3.05 HP
Thermal Input HP
3.90 HP
Mechanical Output HP
2.54 HP
Max Output Speed
70 RPM
Max Input Speed
1750 RPM
Output Torque
2284 in-lb
Overhung Load (OHL)
2300 lbs
Efficiency
60–95%
Shaft Orientation
Right Angle
Gear Type
Single Reduction Worm Gear
Housing Material
Gray Iron (Cast Iron)
Lubrication
Factory-filled H1 Food-Grade Synthetic Oil (PAG), Sealed-for-Life
Sealing System
Totally Enclosed, Ventless
Keyway (Output)
2 in L x 1/4 in W x 1/4 in H
Dimensions (L x W x H)
11.38 in x 7.76 in x 10.75 in
Mounting Base
No Base (Drilled & Tapped Top and Bottom; bolt-on base kit available separately)
Place of Manufacture
United States of America
We warranty all items for 30 days from date of purchase.
