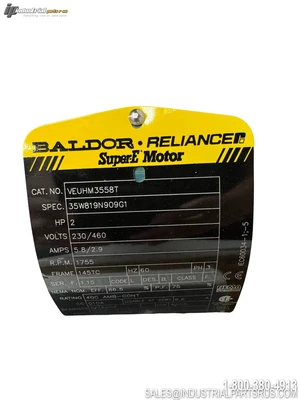

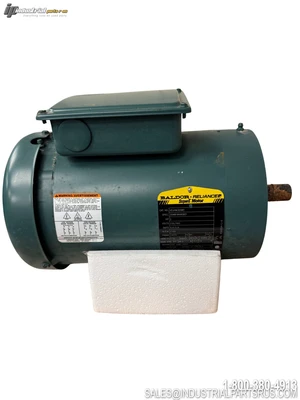

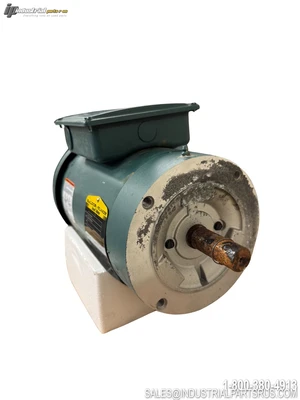

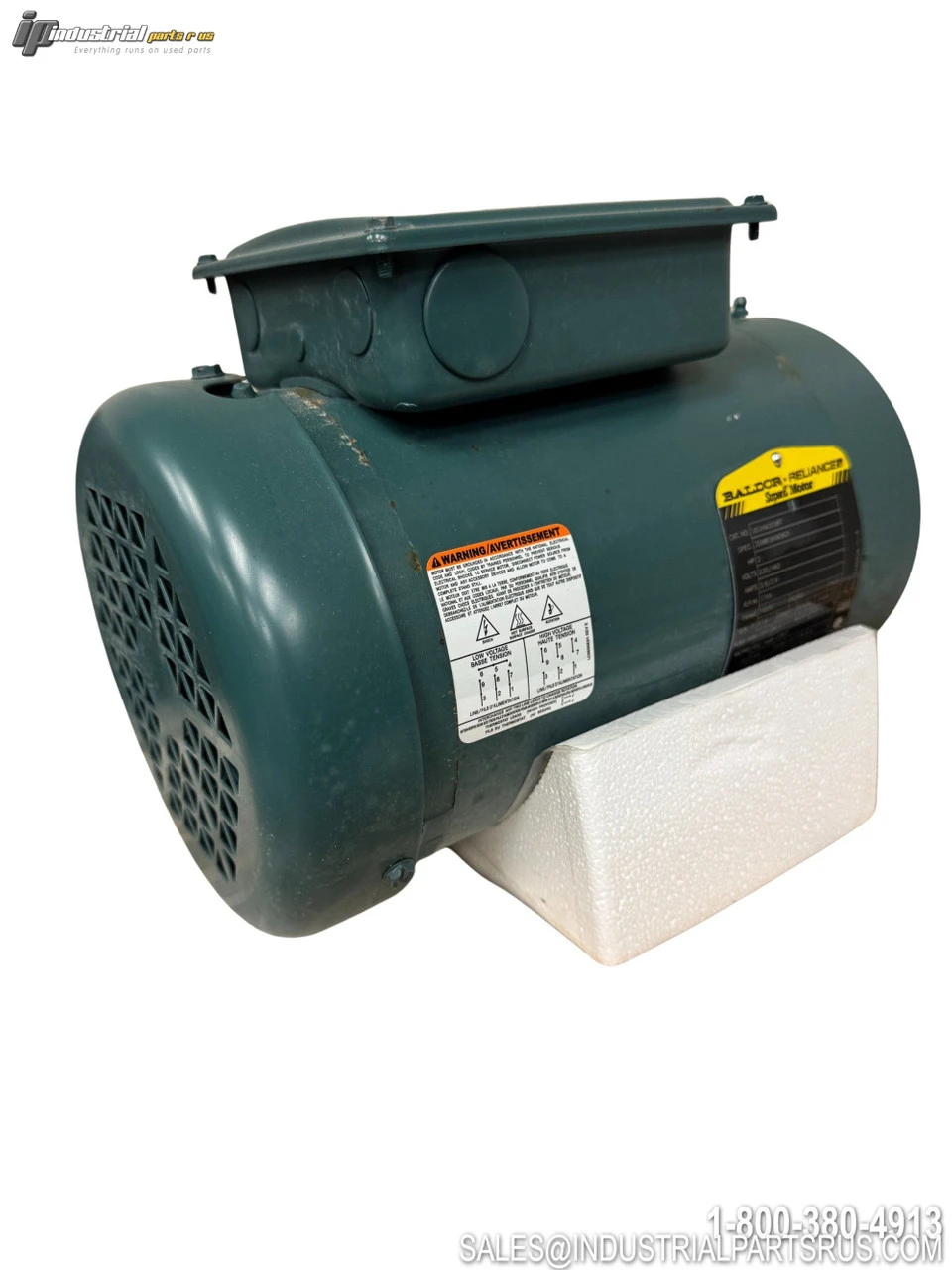

USED BALDOR VEUHM3558T

The Baldor VEUHM3558T is a 2 HP three-phase AC unit handling motor designed for demanding industrial applications including baggage handling, conveyors, packaging equipment, machine tools, hoists, and elevator and door openers. It features a TEFC (Totally Enclosed Fan Cooled) steel frame construction with a C-Face footless mounting configuration, making it well-suited for direct-coupled drive installations. The motor is inverter ready and carries NEMA Premium efficiency ratings with a 145TC frame at 1800 RPM synchronous speed on 230/460V, 60 Hz power.
Specification
Value
Brand
Baldor (Baldor-Reliance)
Model / Part Number
VEUHM3558T
Motor Type
AC Unit Handling Motor, Three Phase
Output / Horsepower
2 HP (1.5 kW)
Synchronous Speed
1800 RPM @ 60 Hz
Full Load Speed
~1750–1760 RPM
Voltage
208-230/460V @ 60 Hz
Phase
3
Frequency
60 Hz
Full Load Amps
6.6A @ 208V / 5.8A @ 230V / 2.9A @ 460V
High Voltage Full Load Amps
2.9 A
Frame
145TC
Frame Material
Steel
Enclosure Type
TEFC (Totally Enclosed Fan Cooled)
Mounting Type
C-Face, Footless (F3 — No Base)
Number of Poles
4
Insulation Class
F
Service Factor
1.15
Efficiency @ 100% Load
86.5%
Power Factor
80%
Design Code
B (NEMA Design B)
KVA Code
L
Inverter Ready
Yes
Shaft Diameter
0.875 in (7/8")
Overall Length
13.29 in
Bearing Type
Ball Bearings
Bearing Grease
Polyrex EM (-20°F to +300°F)
Ambient Temperature
40°C (Max)
Duty Rating
Continuous (CONT)
Rotation
Reversible
Number of Speeds
1
Conduit Box Material
Steel (Oversized, Top-Mounted)
Agency Approvals
CE, CSA, UR
Motor Standards
NEMA
Weight
48 lbs
We warranty all items for 30 days from date of purchase.
