NEW HOERBIGER KL3043

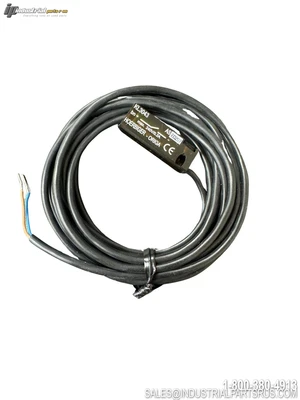

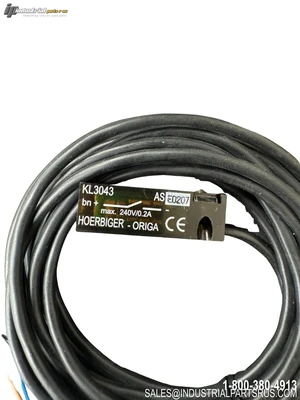

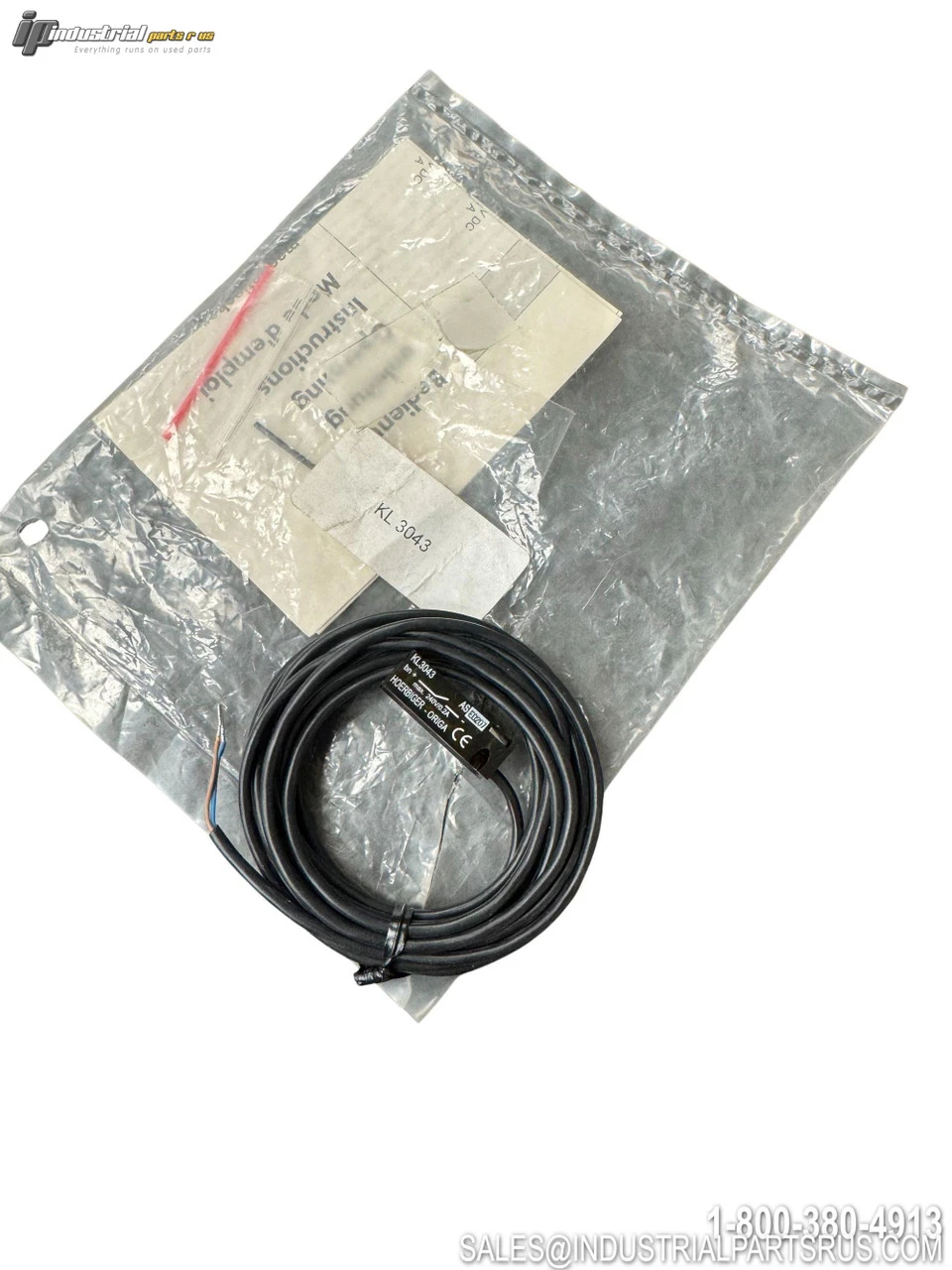

The Hoerbiger-Origa KL3043 is a magnetic reed proximity switch designed for position sensing on Parker Origa pneumatic cylinders and linear actuators. It is a 2-wire, normally open (NO) device with an integrated LED indicator, rated for up to 240V AC/DC at 0.2A, and features an IP67 protection rating for reliable operation in industrial environments. The switch has a nominal sensing distance of 3mm, a rectangular unshielded body style, and relay-type output. It is supplied with a flying lead cable and is groove-mounted directly onto compatible cylinder bodies for piston position detection.
Specification
Value
Brand
Hoerbiger / Hoerbiger-Origa
Model / Part Number
KL3043
Product Type
Magnetic Reed Proximity Switch / Sensor
Manufacturer Series
KL
Switch Type
Reed Switch
Operation
Normally Open (NO)
Supply / Switching Voltage (Max)
240V AC/DC
Max Current Rating
0.2A
Number of Wires
2-Wire
LED Indicator
Yes
IP Rating
IP67
Mounting Type
Groove / Cable Mount
Connection Type
Cable (Fly Lead)
Min Operating Temperature
-25°C
Max Operating Temperature
75°C
Compatible Equipment
Parker Origa Pneumatic Cylinders / Linear Actuators
We warranty all items for 30 days from date of purchase.
