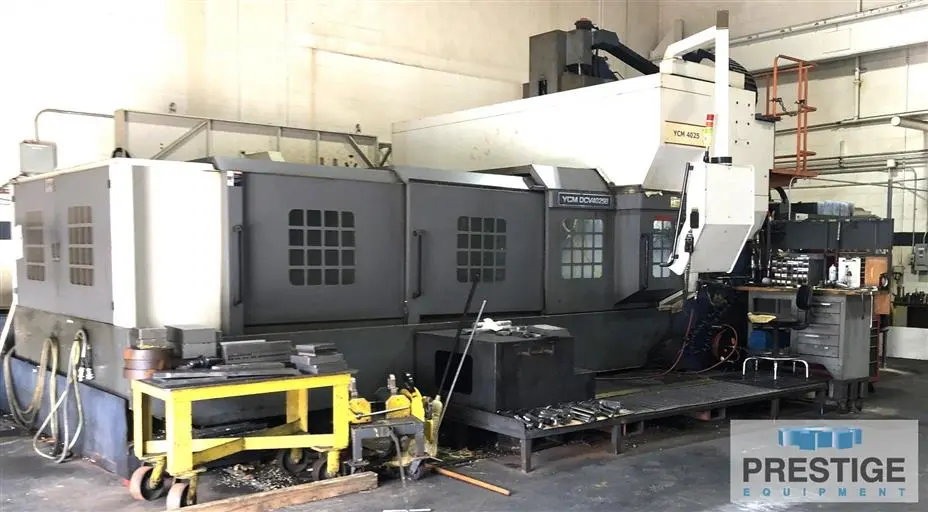

USED 2008 YCM DCV 4025B

SPECIFICATIONS:
TABLE SIZE............................. 158" x 94.5": 158" x 94.5"
TABLE WEIGHT CAPACITY: 44,092 LBS.
LONGITUDINAL TRAVEL, X-Axis............ 160": 160"
CROSS TRAVEL, Y-Axis: 98"
RAM STROKE, Z-Axis: 40"
FEED RATE X, Y, Z: 472/591/591 IPM
CUTTING FEED RATE: 0.04~394 IPM
SPINDLE SPEEDS......................... 10,000 RPM: 10,000 RPM
SPINDLE DRIVE.......................... 25/30 HP (18.5/22 kw): 25/30 HP (18.5/22 kw)
SPINDLE TAPER.......................... CAT 50: CAT 50
TOOL CHANGER: 120 ATC
DISTANCE BETWEENS COLUMNS.............. 107.9": 107.9"
MAX. TOOL WEIGHT: 44.1 Lbs.
MAX. TOOL DIMENSIONS: 4.92" x 13.78"
DISTANCE SPINDLE NOSE & TAPLE TOP: 7.87~47.87"
MACHINE Weight: 101,412 Lbs.
MACHINE ELECTRICS: 220/480

Equipped With:

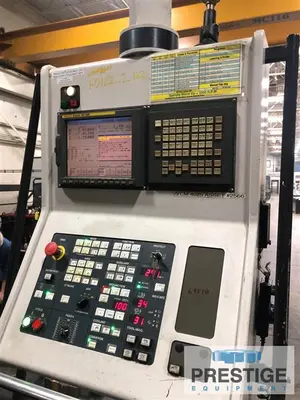

FANUC 18iMB CNC CONTROLS

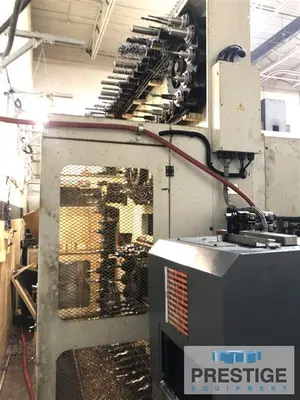

120-STATION AUTOMATIC TOOL CHANGER
ETHERNET
HIGH SPEED MACHINING
DATA SERVER
SPINDLE THERMAL COMPENSATION
COOLANT THROUGH SPINDLE
3 ROLLER TYPE GUIDE WAY FOR Y AXIS
HARDENED AND GROUND BOX WAY Z AXIS

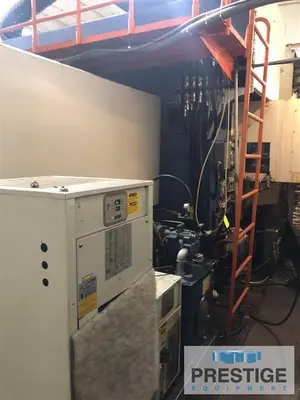

CHILLER UNIT
CHIP CONVEYOR

Features:
FANUC 18iMB CNC CONTROLS
120-STATION AUTOMATIC TOOL CHANGER
ETHERNET
HIGH SPEED MACHINING
DATA SERVER
SPINDLE THERMAL COMPENSATION
COOLANT THROUGH SPINDLE
3 ROLLER TYPE GUIDE WAY FOR Y AXIS
HARDENED AND GROUND BOX WAY Z AXIS
CHILLER UNIT
CHIP CONVEYOR
