USED 2009 HAAS ES-5-4T

4th Axis Drive & Wiring
Haas HRT-160 4th Axis Rotary Table
Haas Probing Package with Tool & Part Probing
Coolant Through the Spindle - 300 PSI
8,000 RPM Spindle
24 Station Tool Changer
Spindle Orientation
User Definable Macros
Coordinate Rotation & Scaling
Visual Quick Code Programming
Programmable Coolant Nozzle
30 HP Spindle Motor
Early Power Failure Detection Module
Remote Jog Handle
Rigid Tapping
Coolant System with Tank & Pump
Wired 195/260V Electrics

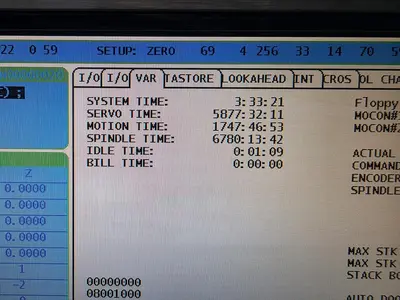

**Spindle Hours 6,780**

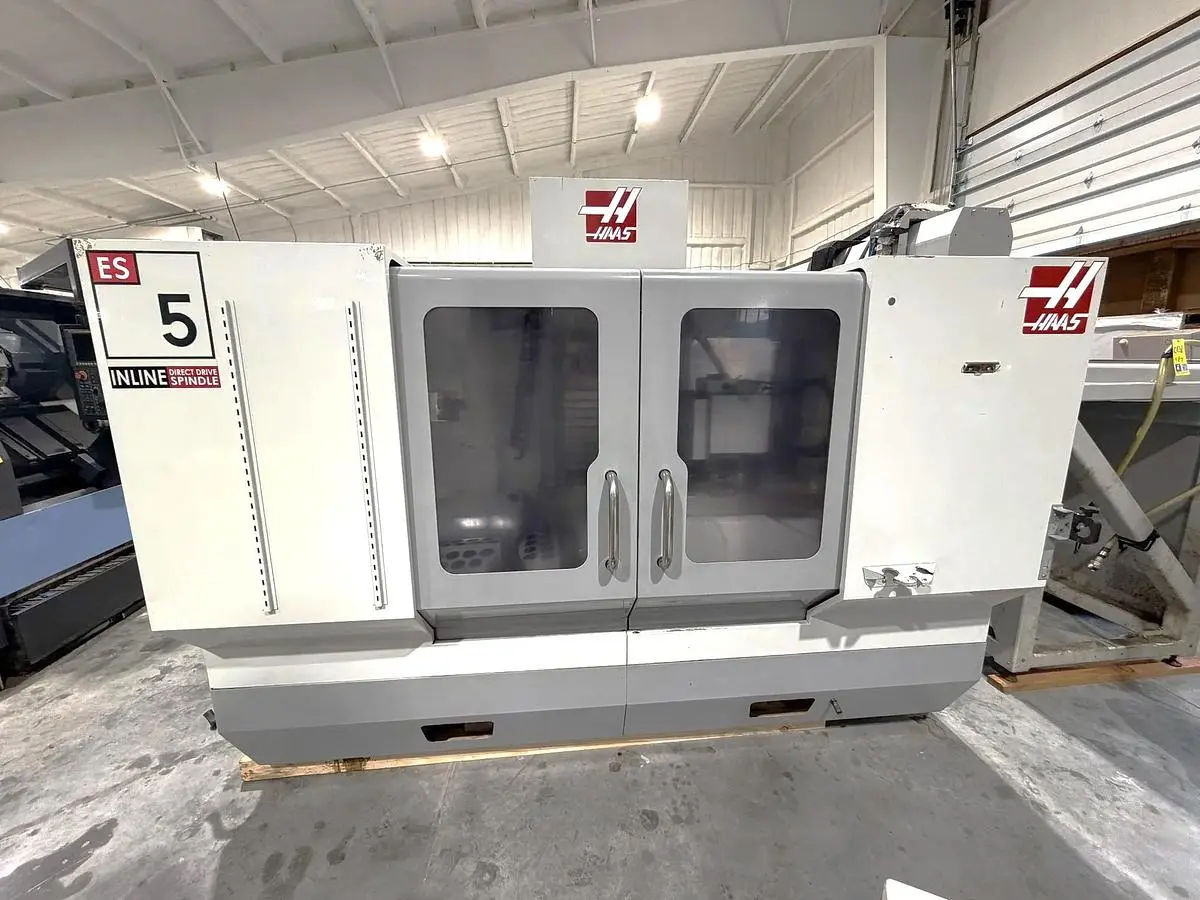

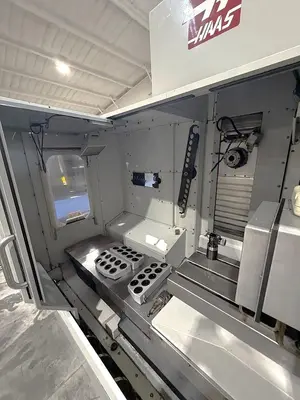

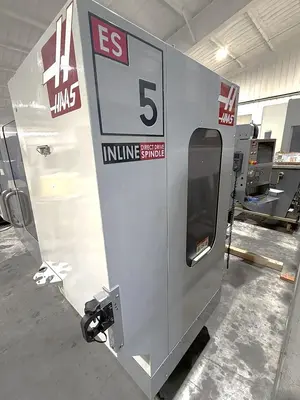

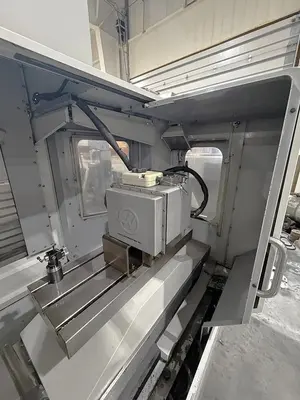

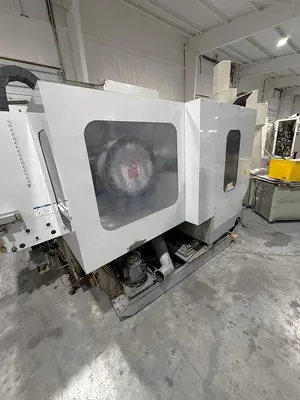

The 2009 Haas ES-5-4T is a robust CNC Horizontal Machining Center, equipped with a high-performance HRT-160 4th Axis Rotary Table. It features a spacious 40" x 15" table capable of handling workpieces up to 625 lbs. The machine offers significant travel capacities with 40" on the X-axis, 18" on the Y-axis, and 22" on the Z-axis, supporting a wide range of machining applications.

This model comes with a 24-station side-mounted tool changer, ensuring efficient tool management and quick changeovers. The spindle, suited with a CAT 40 taper and a speed of up to 8,000 RPM, is powered by a 30 HP motor, delivering excellent machining performance. It offers 300 PSI coolant through the spindle and has rapid traverse rates at an impressive 1,000 IPM for X and Y axes, and 500 IPM for the Z-axis, which enhances productivity on demanding jobs.

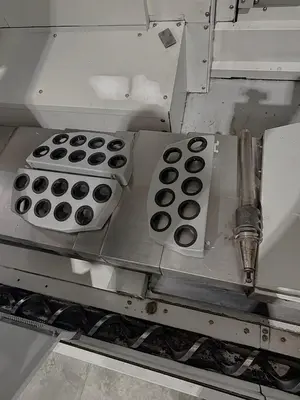

Additional features include a tool probing system, a remote jog handle, and a chip auger to maintain optimal operational conditions. With dimensions of 125"x118"x98" and a weight of 14,000 lbs, this machine is a substantial addition to any workshop, offering reliable performance and precision for intricate manufacturing tasks.
