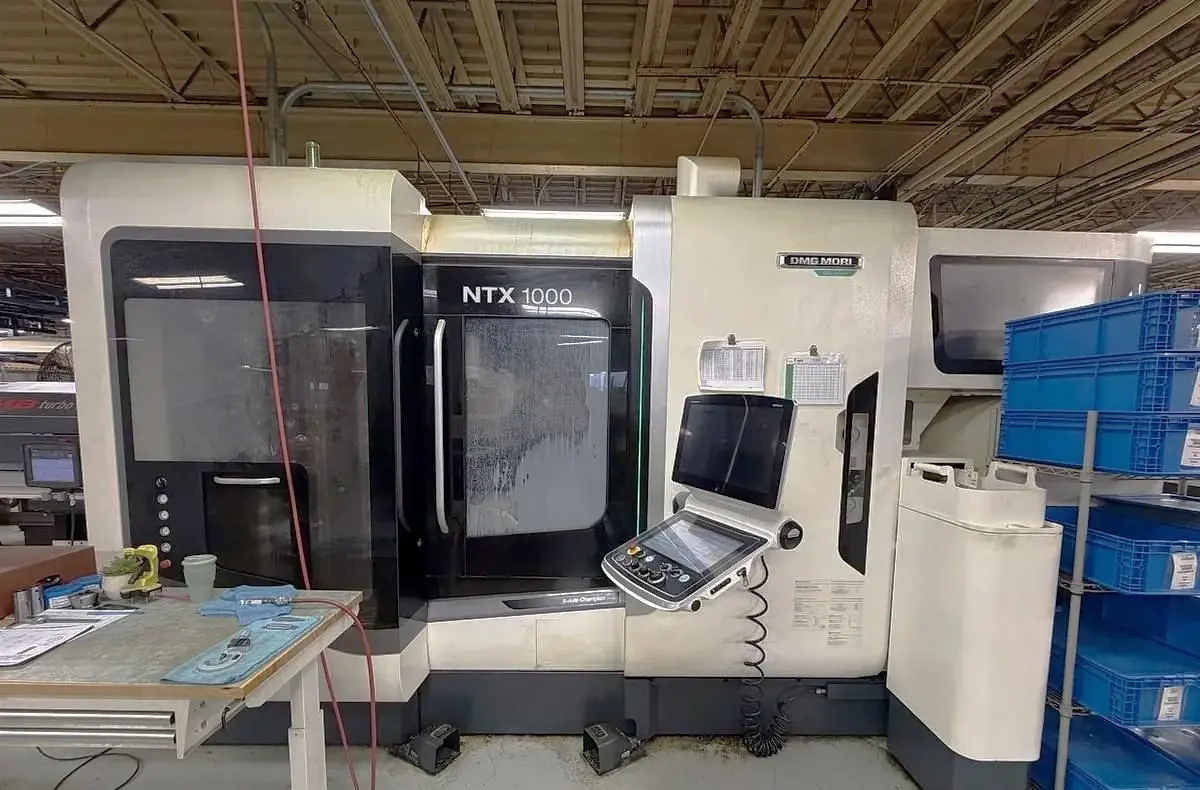

USED 2022 DMG MORI NTX 1000 SZM 2ND GEN
Overview
5-Axis Simultaneous Capability with Direct Drive Motor in B Axis
Pendulum Style B-Axis - 240 Degree Movement with Live Milling/Drilling Capability
Y Axis Capability on Upper B Axis Turret Only
Full C Axis Spindle Rotation
Lower 10 Station Turret with Live Milling/Drilling Capability
Subspindle
Right Spindle Parts Ejector

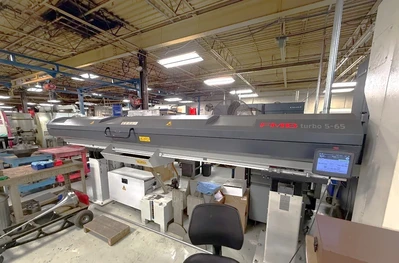

FMB Turbo 5-65 Barfeeder System
Parts Unloader
Parts Stacker
Kitagawa 8" 3 Jaw Hydra. Chuck w/ Hollow Chk & Hollow Cylinder for Main Spindle
Kitagawa 6" 3 Jaw Hydra. Chuck w/ Hollow Chk & Hollow Cylinder for Subspindle-2.04" Bar Capacity
76 Station Tool Changer
High Speed 20,000 RPM Live Milling Capability on B Axis
Interface for Barfeed
Interface for Mist Collector
In Machine Work Piece Measuring System Radio Signal Transmission Type Sensor 9 (Renishaw RMP600)
Manual In Machine Blum Laser Tool Setter with Tool Breakage Detection (Contact Type / BLUM Z-Pico) (Removable Type)
Chip Conveyor - Right Side
10 Station Bolt On Type Turret with 10,000 RPM Milling Capability
Tailstock for Turret
Automation Support Workpiece Unloader - Right Side
Air Blow for both Right and Left Chucks
Coolant Gun
Coolant Chiller Unit
Interface ONLY for Super-High Pressure Coolant System
Keyway Broaching Software
Addition of Optional Block Skip
3D Quickset
Ethernet Interface
**Price New As Equipped at $573,025**
Specs

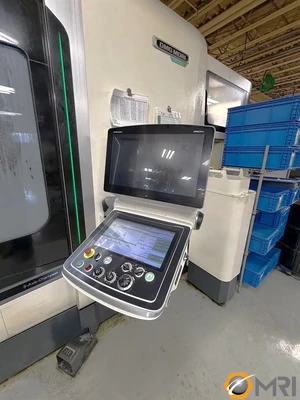

Machine Control: Fanuc 31iB5 with Celos Ergoline Touch Control
Chuck Sizes Main / Subspindle: 8" Chuck / both 3J Collet and 6" Chuck for Sub Spindle
Maximum Swing: 26.77"
Maximum Turning Diameter: 16.93"
Maximum Cutting Length: 31.5"
Maximum Distance Between Centers: 41.3"
X1-Axis Travel: 17.9"
X2-Axis Travel: 10.7"
Y-Axis Travel: 8.3"
Z1-Axis Travel: 31.5"
Z2-Axis Travel: not available
B-Axis Tilt Movement: 240 Degrees
C-Axis Rotation: .001 Degree
Spindle Nose / Spindle Bore / Bar Capacity: A2-6" / 2.87" / 2.56"
Main Spindle Speed: 5,000 RPM
Spindle Motor - Main Spindle: 29.5 HP
Subspindle Speed: 6,000 RPM
Subspindle Motor: 15 HP
Milling Spindle Speed / Milling Spindle Motor: 20,000 RPM / 12 HP
Number of Tool Positions: 76 Station Tool Changer
Spindle Taper: CAPTO C5
Lower Turret Positions: 10 Position Turret
Live Milling Speed - Lower Turret / Horsepower: 10,000 RPM / 2 HP
Machine Dimensions LxWxH: 164"x100.1"x100.1"
Machine Weight: 25,353 lbs
