USED LEE IND RA-150

Manufacturer
Lee Industries
Product Overview

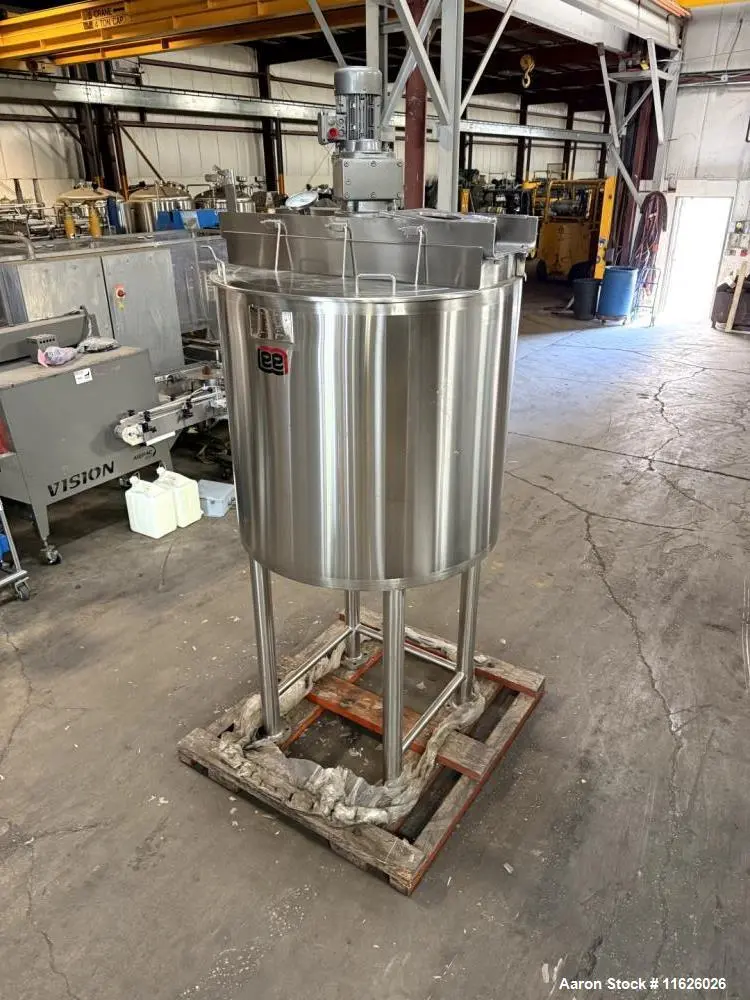

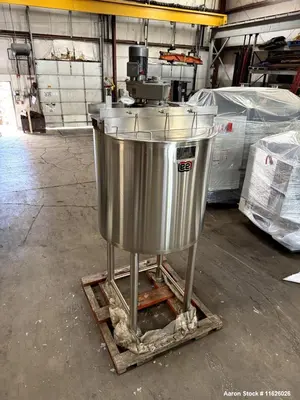

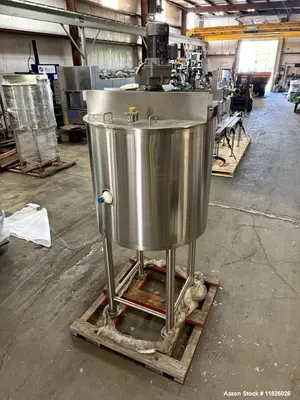

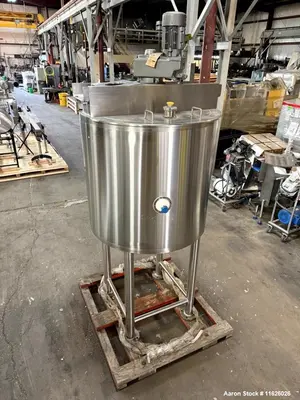

The Used Lee 150-Gallon Stainless Steel Jacketed Kettle, Model RA-150, is a heavy-duty sanitary processing vessel designed for heating, cooling, mixing, and blending viscous or temperature-sensitive products. Constructed of 316 stainless steel, this kettle is well suited for food, pharmaceutical, cosmetic, chemical, and specialty processing applications requiring corrosion resistance and hygienic product contact surfaces.
The vessel features a 90 PSI rated jacket suitable for operation from approximately -20°F to 332°F, allowing the kettle to support both heating and cooling processes when connected to an appropriate utility system. A single-motion scrape surface agitator with a 1.5 HP drive helps maintain product movement along the vessel wall, improve heat transfer, and reduce product buildup during processing.
Additional features include a baffle, two-piece cover, thermometer, sprayball, and a 2.5-inch center-bottom ferrule designed for a Cherry-Burrell valve. The valve is not included. Built in 2014, this Lee RA-150 offers a versatile sanitary processing solution for batch production environments.
Specifications

Specification
Details

Manufacturer
Lee Industries

Model
RA-150

Condition
Used

Equipment Type
Jacketed Processing Kettle

Nominal Capacity
150 Gallons

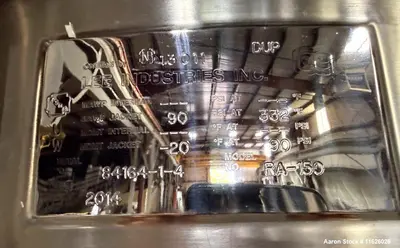

Serial Number
84164-1-4

Construction
316 Stainless Steel

Inside Diameter
42 in.

Inside Depth
40.5 in.

Jacket Pressure Rating
90 PSI

Maximum Jacket Temperature
332°F at 90 PSI

Minimum Jacket Temperature
-20°F at 90 PSI

Agitation
Single-Motion Scrape Surface Agitator

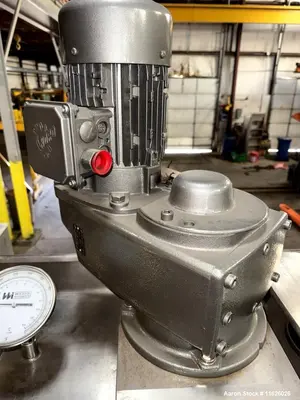

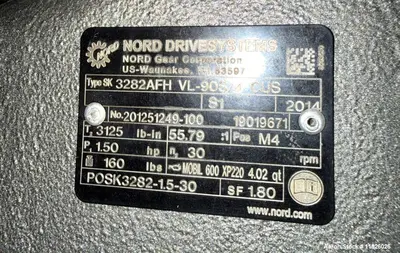

Agitator Drive

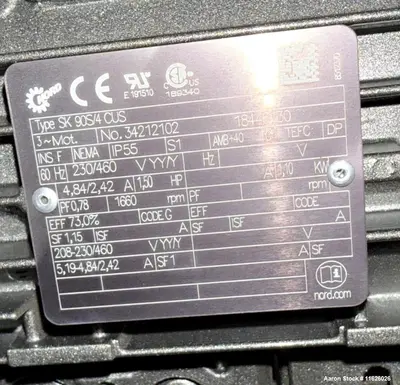

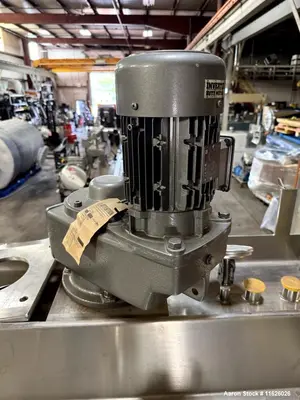

1.5 HP

Baffle
Included

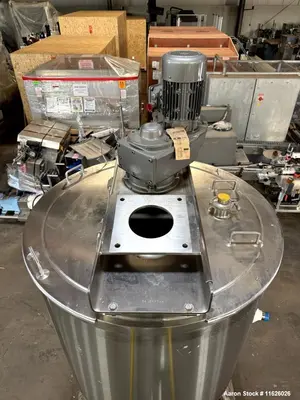

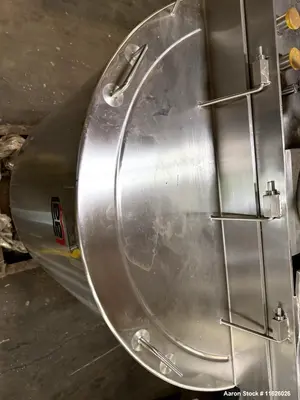

Cover

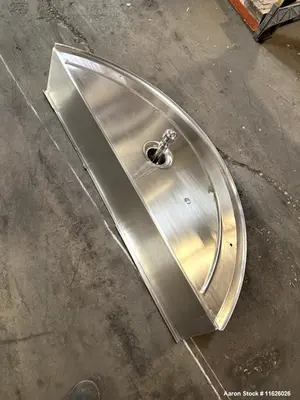

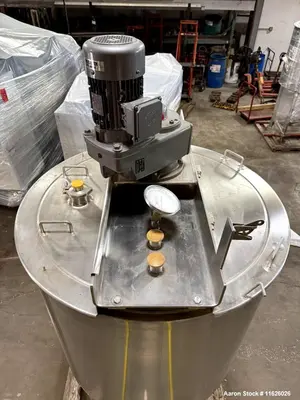

Two-Piece Cover

Outlet

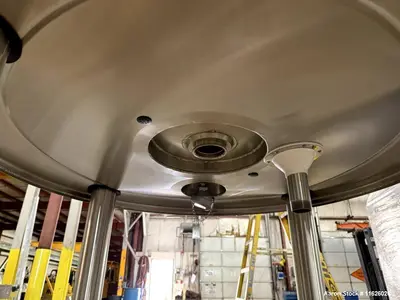

Center-Bottom, 2.5 in. Ferrule

Valve Connection
Designed for Cherry-Burrell Valve

Valve Included
No

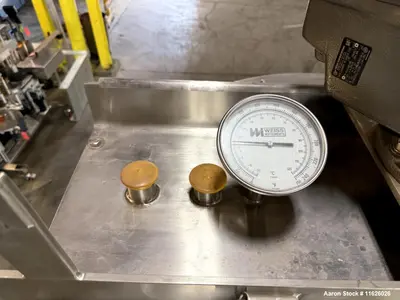

Thermometer
Included

Sprayball
Included

Build Year
2014

Features

150-gallon processing capacity
316 stainless steel construction
Jacketed for heating or cooling
Jacket rated for 90 PSI
Operating temperature range from approximately -20°F to 332°F
Single-motion scrape surface agitation
1.5 HP agitator drive
Internal baffle
Two-piece sanitary cover
Center-bottom discharge
2.5-inch outlet ferrule
Thermometer included
Sprayball included
Built in 2014
Suitable for sanitary batch processing

Applications
The Lee RA-150 kettle is commonly used for:

Product heating
Product cooling
Batch mixing
Sauce processing
Soup production
Syrup processing
Cream and lotion manufacturing
Pharmaceutical compounding
Cosmetic processing
Chemical blending
Viscous product processing
Sanitary food production

Common Industries

Food processing
Beverage manufacturing
Pharmaceutical production
Cosmetics manufacturing
Personal care products
Chemical processing
Nutraceutical manufacturing
Dairy processing
Contract manufacturing
Specialty product processing

Products This Kettle Is Used For

Sauces and dressings
Soups and broths
Syrups
Jams and preserves
Creams and lotions
Ointments
Gels
Adhesives
Specialty chemicals
Food concentrates
Personal care formulations
Pharmaceutical compounds

Frequently Asked Questions

What is the capacity of this kettle?
The Lee RA-150 has a nominal capacity of 150 gallons.

What material is the kettle constructed from?
The vessel is constructed of 316 stainless steel, making it suitable for sanitary and corrosive processing applications.

Is the kettle jacketed?
Yes. The jacket is rated for 90 PSI and is suitable for heating or cooling service from approximately -20°F to 332°F.

What type of agitation is included?
The kettle features a single-motion scrape surface agitator driven by a 1.5 HP motor, along with an internal baffle.

Is the discharge valve included?
No. The kettle has a 2.5-inch center-bottom ferrule designed for a Cherry-Burrell valve, but the valve is not included.

Can Aaron Equipment assist with shipping and logistics?
Yes. Aaron Equipment can help coordinate rigging, crating, freight, export documentation, and domestic or international shipping for kettles and other industrial process equipment.
