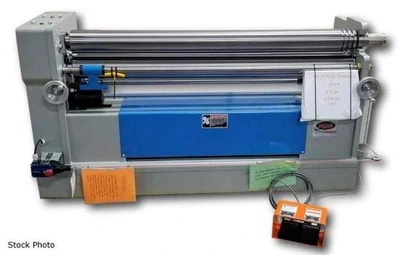

NEW WALDEMAR WDM 310-5-60

WALDEMAR (NEW) MODEL WDM 310-5-60 INITIAL PINCH SHEET BENDING ROLL

5" NOMINAL ROLL DIAMETER
10 GA X 5' ROLLING CAPACITY
ELECTRONICS TO NFPA 79 SPECIFICATIONS
230 VOLT, 3 PHASE 3 HP TEFC MOTOR
1045 STEEL ROLLS MACHINED TO T63 MICRO INCHES

FEATURES
- CROWNED ROLLS
- TOTAL ELECTRIC OPERATION
- NEAR INSTANT START/STOP/REVERSE
- FORWARD REVERSE GUARDED FOOT SWITCH FOR ROLL ROTATION
- RULE AND POINTER TO SHOW ROLL POSITION
- SPUR GEAR 2 ROLL DRIVE
- SAFETY/EMERGENCY STOP CALBE ON 3 SIDES OF THE MACHINE
- PINCH ROLL STARTING GROOVE
- OVERLOAD PROTECTED
- GEARBOX LUBED FOR LIFE
- HEAVY DUTY ALL GEAR DRIVE
- SEALED BALL BEARINGS ON ALL MAIN POINTS
- ROLLS TILT FOR CONE ROLLING
- MANUALLY OPERATED LATCH HANDLE WITH SWING OUT TOP ROLL
- ACCURATELY MACHINED, COMPACT, STREAMLINED, AND ALL WELDED STEEL FRAME
- VARIABLE ROLL SPEED 0-20 FPM

OPTION INCLUDED
- HARDENED AND POLISHED ROLLS
55-60 RC FLAME HARDENED 1045 MATERIAL
- CONE ATTACHMENT
- CIRCULAR GROOVES IN ROLLS FOR ROLLING RODS
- ELECTRIC DRO
- POWER BENDING ADJUSTMENT
Power: 230 (3-Phase)
