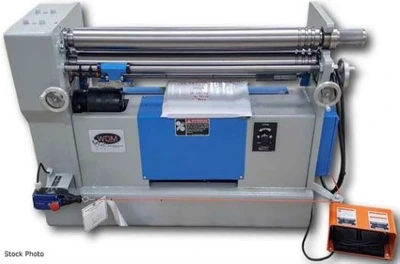

NEW WALDEMAR WDM 310-3.5-36

WALDEMAR (NEW) MODEL WDM 310-3.5-36
INITIAL PINCH SHEET BENDING ROLL

3.5" NOMINAL TOP ROLL DIAMETER
ROLLING CAPACITY
- 12 GAUGE MILD STEEL PLATE X 3' WIDE
2 HP TEFC MOTOR
230 VOLT, 3 PHASE
ELECTRIC TO NFPA-79 SPECIFICATION

FEATURES
- 1045 STEEL ROLL MACHINED TO T63 MICRO INCHES
- CROWNED ROLLS
- TOTAL ELECTRIC OPERATION
- NEAR INSTANT START/STOP/REVERSE
- FORWARD REVERSE GUARDED FOOT SWITCH
FOR ROLL ROTATION
- RULE AND POINTER TO SHOW ROLL POSITION
- SPUR GEAR 2 ROLL DRIVE
- SAFETY/EMERGENCY STOP CABLE ON 3 SIDES
OF THE MACHINE
- PINCH ROLL STARTING GROOVE
- OVERLOAD PROTECTED
- NEMA PREMIUM EFFICIENT ELECTRIC HELICAL
GEAR MOTOR W/HOLDING BRAKE
FOR ROLL ROTATION
- GEARBOX LUBED FOR LIFE
- HEAVY DUTY ALL GEAR DRIVE
- SEALED BALL BEARINGS ON ALL MAIN POINTS
- ROLLS TILT FOR CONE ROLLING
- MANUALLY OPERATED LATCH HANDLE
W/SWING OUT TOP ROLL
- ACCURATELY MACHINED, COMPACT,
STREAMLINED AND ALL WELDED STEEL FRAME
- VARIABLE ROLL SPEED 0-20 FPM

OPTIONS INCLUDED
- HARDENED AND POLISHED ROLLS
55-60 RC FLAME HARDENED 1045 MATERIAL
- CONE ATTACHMENT
- CIRCULAR GROOVES IN ROLLS FOR ROLLING RODS
OR SHEETS WITH WIRE EDGES 3/8", 1/2" AND 5/8"
- ELECTRIC DRO
- POWER BENDING ADJUSTMENT
Power: 230 (3-Phase)
