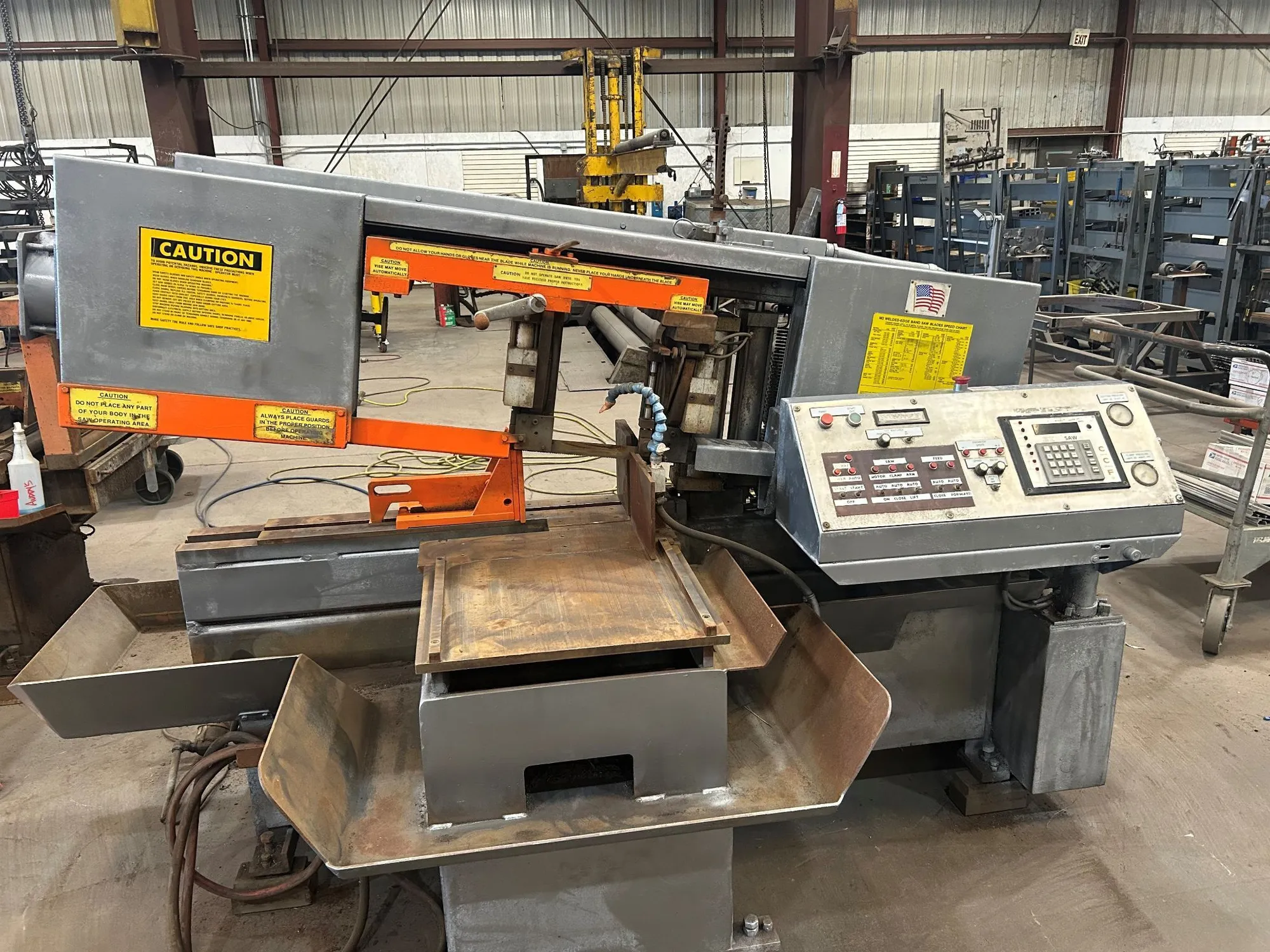

USED 1992 HEM H120A

HEM H120A Specifications
Specification Value
Type Automatic Horizontal Band Saw
Cutting Capacity (Round) 14 in (355 mm)
Cutting Capacity (Rectangle) 16 in W × 14 in H (406 × 355 mm)
Cutting Capacity (Square) 14 in × 14 in
Blade Size 1.25 in × 0.042 in × 15 ft (180 in / 4,572 mm)
Blade Speed Variable, approximately 60–400 SFPM
Blade Drive Motor 7.5 HP
Hydraulic Motor 2 HP
Stock Index Length 24 in single stroke
Multiple Index Up to 240 in (10 indexes)
Feed Rate Infinitely variable hydraulic downfeed
Cutting Pressure Adjustable, up to approximately 800–900 lbs
Clamping Pressure Adjustable, up to approximately 1,700 lbs
Coolant System Flood coolant standard
Blade Guides Carbide
Chip Removal Powered chip auger/chip brush (varies by machine)
Electrical 220V or 440V, 3 Phase
Approximate Weight 4,600 lbs (2,087 kg)
Approximate Machine Footprint About 186 in L × 110 in W (configuration dependent)
